| Frame rate | One-click cloud connection Up to 60 fps depending on resolution Video management systems |
|---|
| Video streaming | Compatible with AXIS Camera Station Pro, AXIS Camera Up to 16 streams (eight using VPU, eight using CPU) Station 5, and video management software from Axis’ partners available at axis.com/vms. Video output |
|---|
| All formats 16:9: | Event conditions |
|---|
| UHD | IP address removed, live stream active, network lost, 3840x2160 @25/30 fps (50/60 Hz) new IP address, system ready |
|---|
| FHD 1080p | Edge storage: storage disruption, storage health issues 1920x1080 @50/60 fps (50/60 Hz) detected 1920x1080 @25/30 fps (50/60 Hz) I/O: manual trigger, virtual input |
|---|
| HD 720p | MQTT: stateless 1280x720 @50/60 fps (50/60 Hz) Scheduled and recurring: schedule 720x576 @50 fps (50 Hz) Event actions 720x480 @60 fps (60 Hz) MQTT: publish Notification: HTTP, HTTPS, TCP and email |
|---|
| Audio | SNMP traps: send, send while the rule is active Status LED: flash, flash while the rule is active |
|---|
| Output | Approvals Line output, HDMI (stereo) Product markings UL/cUL, UKCA, CE, KC, VCCI, RCM Supply chain TAA compliant written by Eric Young (eay@cryptsoft.com). |
|---|
| CISPR 35, CISPR 32 Class A, EN 55035, | General EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, |
|---|
| EN 61000-6-1, EN 61000-6-2 | Casing Australia/New Zealand: RCM AS/NZS CISPR 32 Class A IP30-rated |
|---|
| Canada: ICES-3(A)/NMB-3(A) | Aluminum casing |
|---|
| Japan: VCCI Class A | Color: NCS S 9000-N |
|---|
| Korea: KS C 9835, KS C 9832 Class A | Security slot USA: FCC Part 15 Subpart B Class A Mounting |
|---|
| Safety | AXIS T91A03 DIN Rail Clip A, mounting bracket, |
|---|
| IEC/EN/UL 62368-1 ed. 3, | compatible with VESA mounting hole patterns CAN/CSA C22.2 No. 62368-1 ed. 3 Power |
|---|
| Environment | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, Class 4 IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, 10–28 V DC, max 17 W IEC/EN 60529 IP30 Connectors |
|---|
| Network | Audio: 3.5 mm line out, stereo |
|---|
| NIST SP500-267 | Data transfer: 2x USB Type A, supported USB class: HID, Mass Storage |
|---|
| Cybersecurity | Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE ETSI EN 303 645, BSI IT Security Label, FIPS-140 Power: DC input, terminal block SD-card slot (Highspeed/UHS-1) HDMI type A3, CEC supported Cybersecurity Storage |
|---|
| Edge security | Support for microSD/microSDHC/microSD UHS-1 card Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Operating conditions Credential Flow/OpenID Authorization Code Flow for 0 °C to 40 °C (32 °F to 104 °F) centralized ADFS account management, password Humidity 10–85% RH (non-condensing) protection, Axis Cryptographic Module (FIPS 140-2 level Hardwar |
|---|

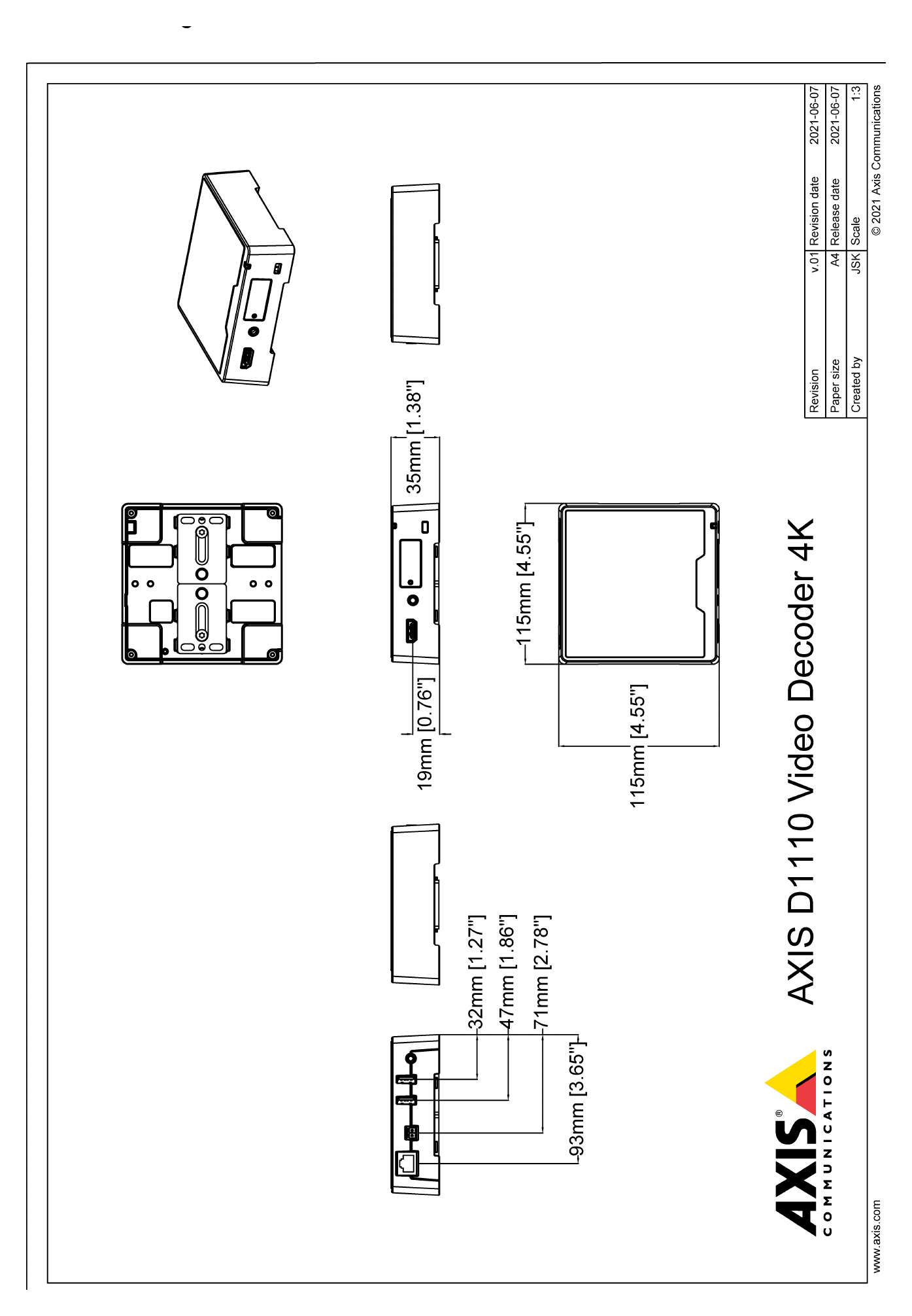

| Network security | For the overall product dimensions, see the dimension |
|---|
| IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)2, | drawing in this datasheet IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS2, TLS v1.2/v1.32, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall Weight 500 g (1.10 lb) Documentation |
|---|
| AXIS OS Hardening Guide | Box content |
|---|
| Axis Vulnerability Management Policy | Video decoder, installation guide, terminal block |
|---|
| Axis Security Development Model | connector To download documents, go to axis.com/support/ cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity written by Eric Young (eay@cryptsoft.com). |
|---|
| www.axis.com | T10183967/EN/M18.2/202606 |
|---|
| cryptographic | information used for secure © 2022 – 2026 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of their respective owners. We reserve the right to introduce modifications without notice. |
|---|
