| Camera | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, |
|---|
| 影像感測器 | IEC TR 60721-4-5 Class 5M3 (Vibration Shock), 1/2.78” progressive scan RGB CMOS IEC/EN 60529 IP66/IP67, |
|---|
| Pixel size 2.0 µm | IEC/EN 61373 Category 1 Class B, ISO 21207 (Method B), ISO 20653 IP6K9K, NEMA 250 Type 4X Fixed focal, 1.98 mm, F2.0 |
|---|
| Horizontal field of view: 185° | Cybersecurity Vertical field of view: 125° Minimum focus distance: 0.3 m (1.0 ft) M12 mount, fixed iris Documentation AXIS OS Hardening Guide Axis Vulnerability Management Policy |
|---|
| Day and night | Axis Security Development Model |
|---|
| Fixed IR-cut filter | AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/ cybersecurity/resources |
|---|
| Minimum illumination | To read more about Axis cybersecurity support, go to |
|---|
| Color: 0.25 lux at 50 IRE, F2.0 | axis.com/cybersecurity |
|---|
| 解像度 | General 2592x1944 5Mp 2560x1940 QuadHD Casing IP66-, IP67-, IP6K9K-2, and NEMA 4X-rated |
|---|
| Frame rate | Aluminum casing Up to 30/25 fps (60/50 Hz) in 5MP and up to 60/50 fps Color: black NCS S 9000-N (60/50 Hz) in quad HD1 Power |
|---|
| WDR | Typical 1 W, max 1.8 W Forensic WDR: Up to 120 dB depending on scene Sustainability |
|---|
| Approvals | PVC and BFR/CFR free |
|---|
| EMC | Connectors |
|---|
| CISPR 35, CISPR 32 Class A, EN 55035, | SMA connector EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A |
|---|
| Korea: KS C 9835, KS C 9832 Class A | Operating conditions |
|---|
| USA: FCC Part 15 Subpart B Class A | Temperature: -40 °C to 60 °C (-40 °F to 140 °F) Humidity: 10–100% RH (condensing) |
|---|
| CAN/CSA C22.2 No. 62368-1 ed. 3, | Storage conditions IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118 Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
|---|

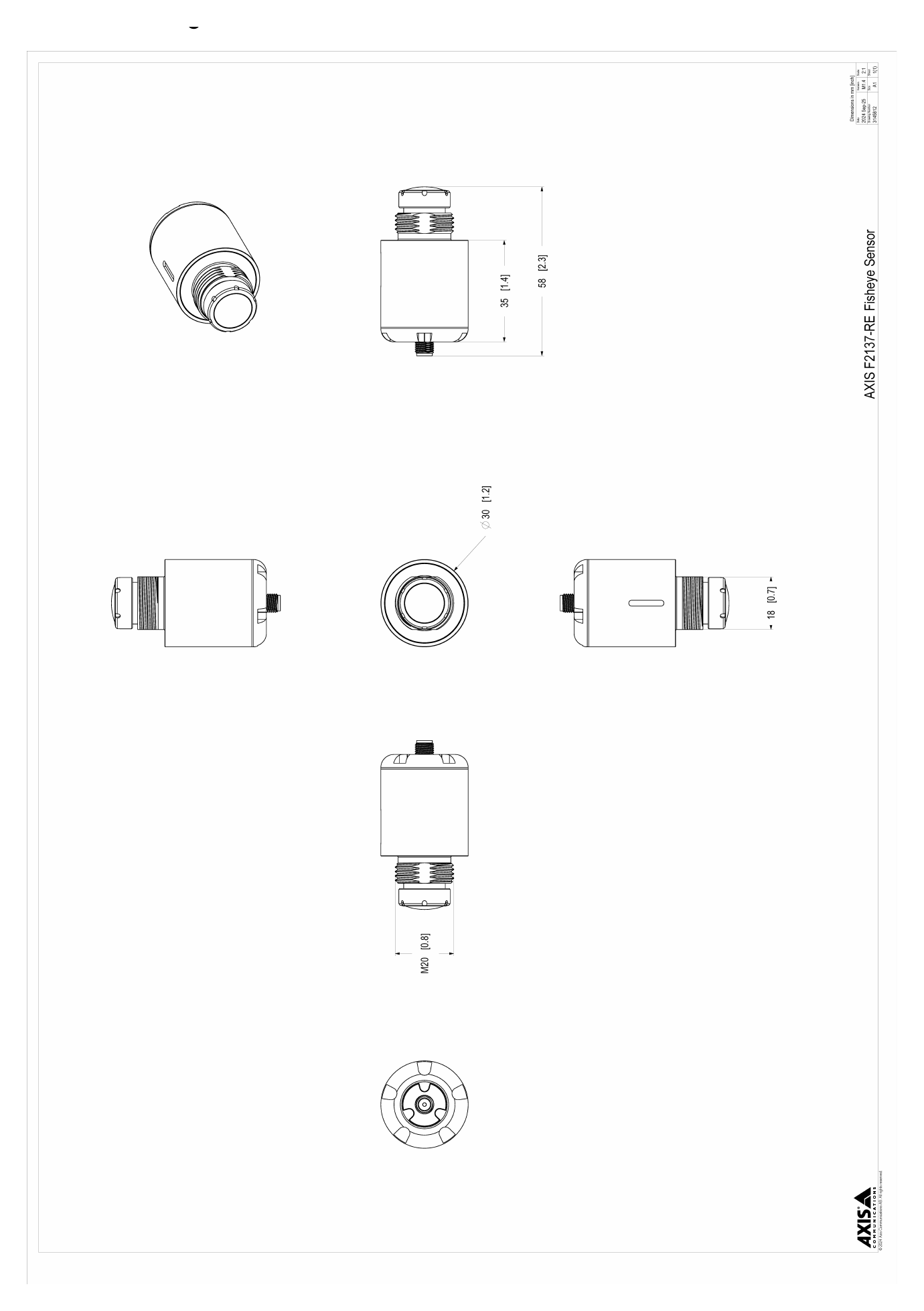

| 尺寸 | Environmental responsibility |
|---|
| drawing in this datasheet. | Axis Communications is a signatory of the UN Global |
|---|
| Main unit | Resolution Exposure Frame rate (fps) Shutter speed (60/50Hz) (seconds) |
|---|
| AXIS F9111, | 5 MP: 2592x1944 Without WDR 30/25 1/16000 to 1 s |
|---|
| Quad HD: 2560x1440 | Without WDR 60/50 1/27000 to 1/2 s |
|---|
| AXIS F9114 | 5 MP: 2592x1944 Without WDR 10/10 1/16000 to 1 s |
|---|
| AXIS F9114-R Mk II, | 5 MP: 2592x1944 Without WDR 20/20 1/18000 s to 1 s |
|---|
| AXIS F9104-B Mk II | WDR 20/20 1/18000 s to 1 s |
|---|
| www.axis.com | T10197206/EN/M3.2/202606 © 2024 – 2026 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of their respective owners. We reserve the right to introduce modifications without notice. |
|---|
