| Camera | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC/EN 60529 IP42, |
|---|
| 影像感測器 | IEC/EN 62262 IK08 1/2.9” progressive scan RGB CMOS |
|---|
| Pixel size 1.4 µm | General |
|---|
| 鏡頭 | Casing 3.07 mm, F1.8 IP42- and IK08-rated |
|---|
| Horizontal field of view: 107° | Plastic casing, polycarbonate (PC) dome |
|---|
| Vertical field of view: 54° | Color: white NCS S 1002-B |
|---|
| Minimum focus distance: 2.0 m (6.6 ft) | For repainting instructions, go to the product’s support |
|---|
| Fixed iris | page. For information about the impact on warranty, go to axis.com/warranty-implication-when-repainting. Shutter speed |
|---|
| Up to 1/7500 s to 1 s1 | Mounting Wall or ceiling mount Frame rate |
|---|
| Up to 25/30 fps (50/60 Hz)1 | Power Typical 0.9 W Camera adjustment Pan -92 to +260°, tilt 0 to 62°, roll 0 to 90° Connectors SMA connector Resolution |
|---|
| Maximum 3840x2160 | Operating conditions Temperature: -20 °C to 50 °C (-4 °F to 122 °F) |
|---|
| 圖像設定 | Humidity: 10–85% RH (non-condensing) Rotation: 0°, 90°, 180°, 270° including corridor format Storage conditions |
|---|
| Approvals | Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
|---|

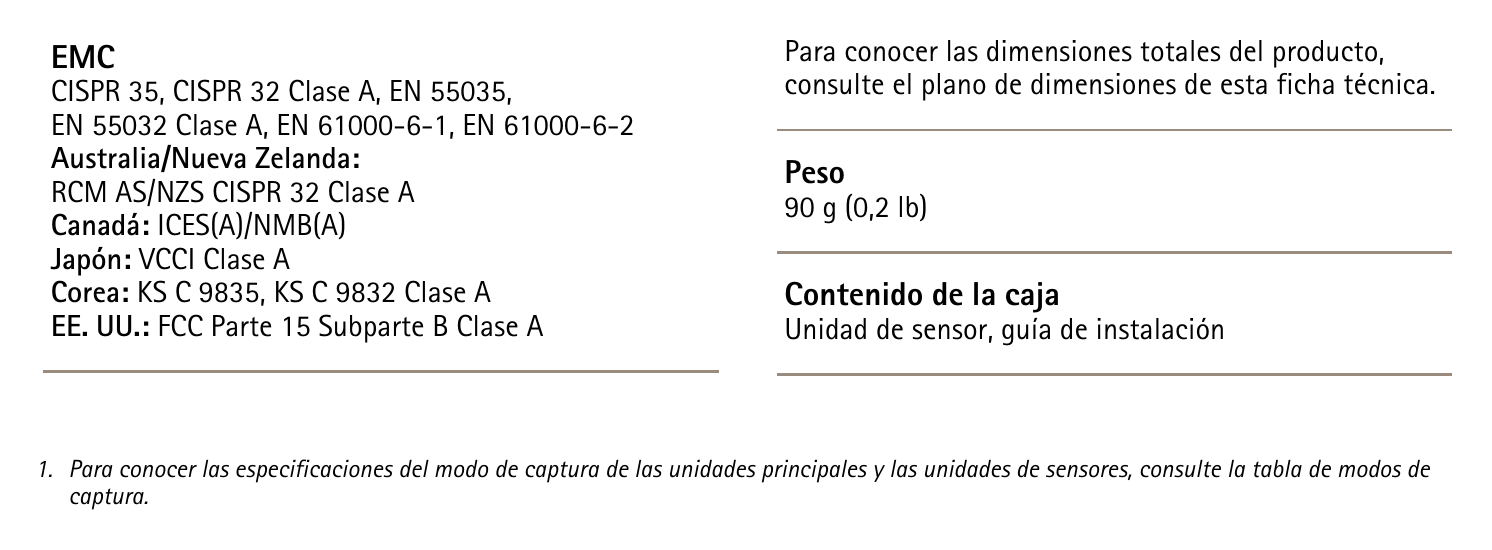

| Product markings | Dimensions UL/cUL, FCC, ICES, CE, KC, VCCI, RCM, WEEE For the overall product dimensions, see the dimension drawing in this datasheet. Supply chain TAA compliant Weight 90 g (0.2 lb) CISPR 35, CISPR 32 Class A, EN 55035, Box content EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Sensor unit, installation guide Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) |
|---|
| Japan: VCCI Class A | Required hardware |
|---|
| Korea: KS C 9835, KS C 9832 Class A | AXIS F91 Main Unit |
|---|
| USA: FCC Part 15 Subpart B Class A | Requires one of the following cables: AXIS TU6004-E Cable AXIS TU6005 Plenum Cable |
|---|
| Safety | AXIS TU6007-E Cable CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3 |
|---|
| Main unit | Frame rate (fps) (60/50Hz) Shutter speed (seconds) |
|---|
| AXIS F9111, AXIS F9111-R Mk II | 25/30 1/7500 to 1 s |
|---|
| AXIS F9114 | 5/5 1/1000 s to 2 s |
|---|
| AXIS F9114-R Mk II | 12.5/15 1/7500 s to 1 s |
|---|
| www.axis.com | T10216498/EN/M4.2/202510 |
|---|
