| Varifocal, 3.0–8.5 mm, F1.38–2.58 | Video streaming |
|---|
| Horizontal field of view: 104°–34° | Up to 20 unique and configurable video streams1 |
|---|
| Vertical field of view: 76°–26° | Axis Zipstream technology in AV1, H.264 and H.265 |
|---|
| Minimum focus distance: 1 m (3.28 ft) | Controllable frame rate and bandwidth IR corrected, remote zoom and focus, P-Iris control VBR/ABR/MBR H.264/H.265/AV1 Low latency mode |
|---|
| Day and night | Video streaming indicator Automatic IR-cut filter Signal-to-noise ratio |
|---|
| Minimum illumination | >55 dB Color: 0.1 lux at 50 IRE, F1.38 |
|---|
| B/W: 0.03 lux at 50 IRE, F1.38 | WDR 0 lux with IR illumination on Forensic WDR: Up to 120 dB depending on scene |
|---|
| 快門速度 | Multi-view streaming 1/30500 s to 2 s Up to 7 individually cropped out view areas |
|---|
| Camera adjustment | Noise reduction Pan ±190°, tilt -45 to +80°, rotation ±95° Spatial filter (2D noise reduction) Temporal filter (3D noise reduction) System on chip (SoC) Image settings |
|---|
| ARTPEC-9 | balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation: 0°, 90°, |
|---|
| Memory | 180°, 270° including corridor format, mirroring, 2 GB RAM, 8 GB Flash dynamic text and image overlay, overlay widget, privacy masks, target aperture Compute capabilities |
|---|
| Deep learning processing unit (DLPU) | Image processing Axis Zipstream, Forensic WDR, Lightfinder 2.0, |
|---|
| Video | OptimizedIR |
|---|
| 視頻壓縮 | Pan/Tilt/Zoom Digital PTZ, preset positions H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Guard tour, control queue Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile AV1 Motion JPEG utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport method via built-in stream reuse functionality. |
|---|
| Audio | System integration |
|---|
| Audio features | Application Programming Interface |
|---|
| Automatic gain control | Open API for software integration, including VAPIX®, 10-band graphic equalizer for audio input metadata and AXIS Camera Application Platform |
|---|
| Speaker pairing | (ACAP); specifications at axis.com/developer- community. |
|---|
| Audio streaming | One-click cloud connection |
|---|
| Configurable duplex: | ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, |
|---|
| One-way (simplex, half duplex) | and ONVIF® Profile T, specifications at onvif.org Two-way (half duplex, full duplex) through edge-to- Support for Voice over IP (VoIP) through the Session |
|---|
| edge technology or portcast | Initiation Protocol (SIP), using peer-to-peer (P2P) or Private Branch Exchange (PBX). Audio input Input for external unbalanced microphone, optional 5 V Video management systems |
|---|
| microphone power | Compatible with AXIS Camera Station Edge, |
|---|
| Digital input, optional 12 V ring power | AXIS Camera Station Pro, AXIS Camera Station 5, and |
|---|
| Unbalanced line input | video management software from Axis’ partners |
|---|
| Input through portcast technology | available at axis.com/vms. |
|---|
| 音訊輸出 | Onscreen controls Output through speaker pairing or portcast technology Autofocus Day/night shift Defog |
|---|
| Audio encoding | Wide dynamic range 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, Video streaming indicator |
|---|
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | IR illumination |
|---|
| Configurable bitrate | Privacy masks Media clip Heater Edge-to-edge |
|---|
| Network protocols | Speaker pairing IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ Siren and light pairing 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ Event conditions RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ Application v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog Audio: audio detect |
|---|
| Event actions | AXIS Scene Metadata |
|---|
| Day-night mode | Object classes: humans, faces, vehicles (types: cars, |
|---|
| is active | Object attributes: vehicle color, upper/lower clothing Approvals |
|---|
| MQTT: publish | Product markings |
|---|
| Notification: HTTP, HTTPS, TCP and email | UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC |
|---|
| Security: erase configuration | Supply chain |
|---|
| WDR mode | EMC CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, |
|---|
| Built-in installation aids | EN 61000-6-2 |
|---|
| image, level grid | Canada: ICES(A)/NMB(A) Japan: VCCI Class A |
|---|
| Analytics | Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A |
|---|
| Applications | Safety |
|---|
| Included | CAN/CSA C22.2 No. 62368-1 ed. 3, |
|---|
| acap | IEC/EN 62262 IK10 |
|---|
| AXIS Object Analytics | Network |
|---|
| Up to 10 scenarios | Cybersecurity |
|---|
| Polygon include/exclude areas | Edge security |
|---|
| Perspective configuration | Software: Signed OS, brute force delay protection, |
|---|
| ONVIF Motion Alarm event | digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password |
|---|
| AXIS Image Health Analytics | protection, Axis Cryptographic Module (FIPS 140-2 level |
|---|
| Detection settings: | 1) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
|---|
| Network security | Connectors |
|---|
| IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3, | Network: RJ45 10BASE-T/100BASE-TX PoE IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, I/O: 4-pin 2.5 mm terminal block for 1 alarm input and HTTPS/HSTS3, TLS v1.2/v1.33, Network Time Security 1 output (NTS), X.509 Certificate PKI, host-based firewall Audio: 3.5 mm mic/line in |
|---|
| Documentation | IR illumination |
|---|
| AXIS OS Hardening Guide | OptimizedIR with power-efficient, long-life 850 nm IR |
|---|
| Axis Vulnerability Management Policy | LEDs |
|---|
| Axis Security Development Model | Range of reach 40 m (130 ft) or more depending on the |
|---|
| AXIS OS Software Bill of Material (SBOM) | scene To download documents, go to axis.com/support/ cybersecurity/resources To read more about Axis cybersecurity support, go to Storage |
|---|
| axis.com/cybersecurity | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|---|
| General | Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com Casing |
|---|
| IP54-, and IK10-rated | Operating conditions |
|---|
| Polycarbonate hard-coated dome | Temperature: 0 °C to 50 °C (32 °F to 122 °F) |
|---|
| Plastic casing | Humidity: 10–85% RH (non-condensing) Color: white NCS S 1002-B For repainting instructions, go to the product’s support page. For information about the impact on warranty, go Storage conditions to axis.com/warranty-implication-when-repainting. Temperature: -40 °C to 65 °C (-40 °F to 149 °F) |
|---|
| This product can be repainted. | Humidity: 5–95% RH (non-condensing) |
|---|

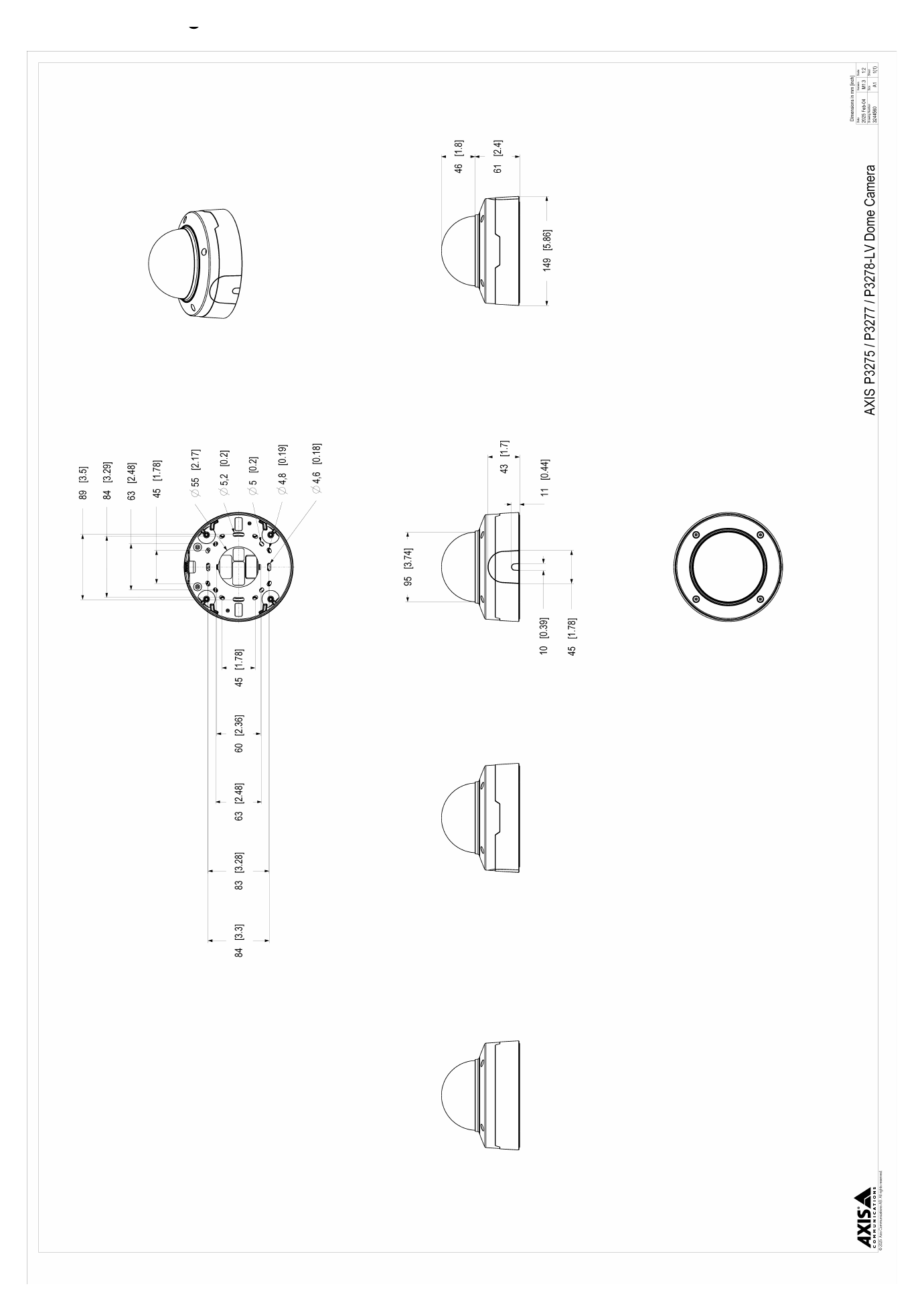

| Mounting | Dimensions Mounting bracket with junction box holes (double- For the overall product dimensions, see the dimension |
|---|
| gang, single-gang, and 4” octagon) | drawing in this datasheet. |
|---|
| 供電 | Weight Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 810 g (1.8 lb) Class 3 Max 12.6 W, typical (heater off, IR off) 4.7 W Box content |
|---|
| Features: power meter | Camera, installation guide, terminal block connector, connector guard, cable gasket, owner authentication |
|---|
| Environmental sensors | key Environmental sensors through portcast technology accessories. For more information, see Optional System tools |
|---|
| accessories. | AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
|---|
| I/O functionality | Available at axis.com I/O: Terminal block for one configurable supervised input/digital output (12 V DC output, max load 25 mA Languages I/O connectivity through portcast technology English, German, French, Spanish, Italian, Russian, accessories. For more information, see Optional Simplified Chinese, Japanese, Korean, Portuguese, |
|---|
| DORI definition | Distance (wide) Distance (tele) |
|---|
| Detect | 25 px/m (8 px/ft) 60 m (197 ft) 170 m (558 ft) |
|---|
| Observe | 63 px/m (19 px/ft) 24 m (79 ft) 67 m (220 ft) |
|---|
| Recognize | 125 px/m (38 px/ft) 12 m (39 ft) 34 m (112 ft) |
|---|
| Identify | 250 px/m (76 px/ft) 6 m (20 ft) 17 m (56 ft) |
|---|
| www.axis.com | T10214441/EN/M6.2/202511 |
|---|
| Axis Edge Vault | a blur in challenging light conditions. The difference |
|---|
| cryptographic | information used for secure © 2025 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of their respective owners. We reserve the right to introduce modifications without notice. |
|---|
