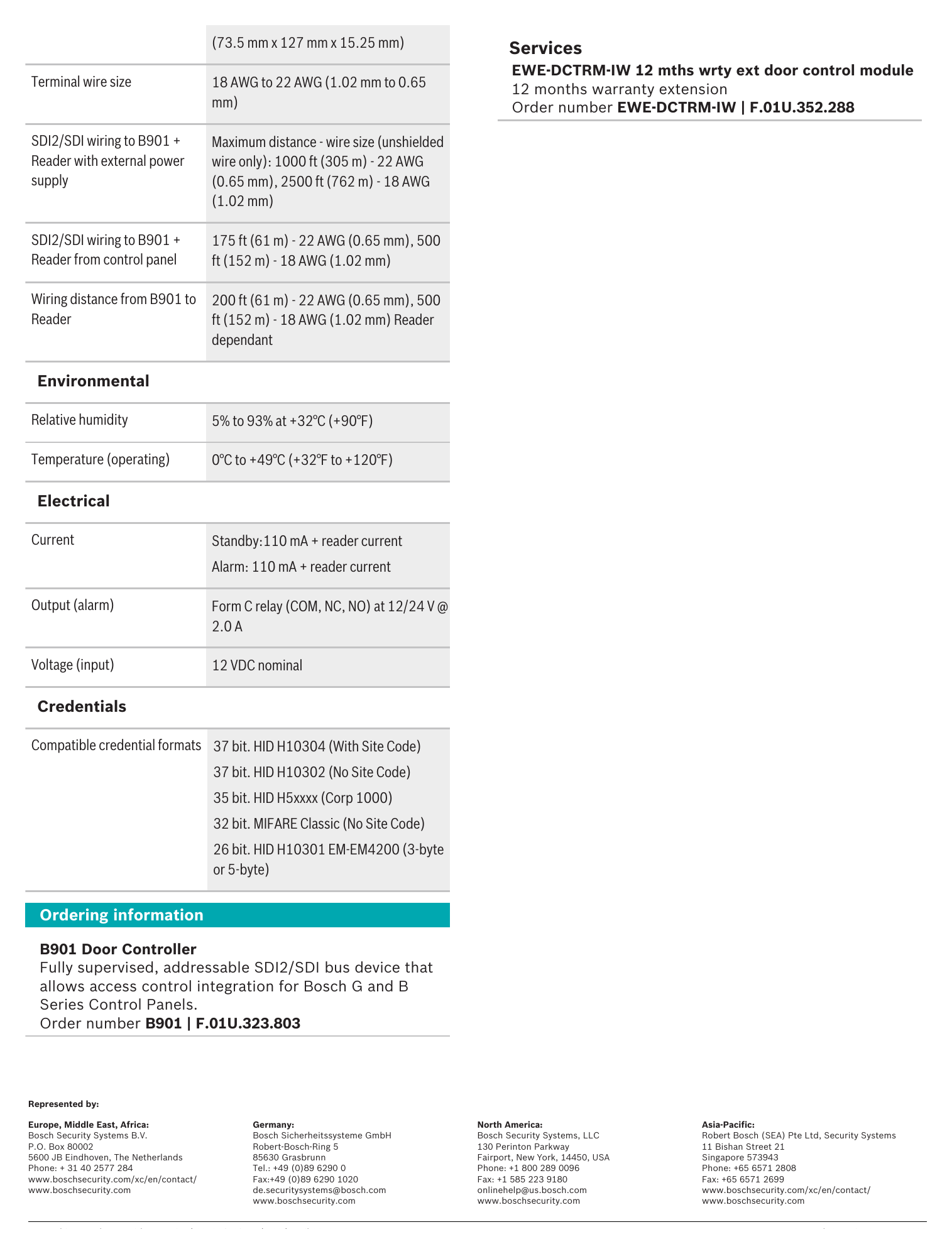

| 尺寸 | 2.9 in x 5.0 in x 0.6 in (73.5 mm x 127 mm x 15.25 mm) Services EWE-DCTRM-IW 12 mths wrty ext door control module |
|---|
| Terminal wire size | 18 AWG to 22 AWG (1.02 mm to 0.65 12 months warranty extension |
|---|
| mm) | Order number EWE-DCTRM-IW | F.01U.352.288 |
|---|
| SDI2/SDI wiring to B901 + | Maximum distance - wire size (unshielded |
|---|
| Reader with external power | wire only): 1000 ft (305 m) - 22 AWG |
|---|
| supply | (0.65 mm), 2500 ft (762 m) - 18 AWG (1.02 mm) |
|---|
| Reader from control panel | ft (152 m) - 18 AWG (1.02 mm) |
|---|
| Wiring distance from B901 to | 200 ft (61 m) - 22 AWG (0.65 mm), 500 |
|---|
| Reader | ft (152 m) - 18 AWG (1.02 mm) Reader dependant Environmental |
|---|
| 相對濕度 | 5% to 93% at +32°C (+90°F) |
|---|
| Temperature (operating) | 0°C to +49°C (+32°F to +120°F) Electrical |
|---|
| Current | Standby:110 mA + reader current Alarm: 110 mA + reader current |
|---|
| Output (alarm) | Form C relay (COM, NC, NO) at 12/24 V @ 2.0 A |
|---|
| Voltage (input) | 12 VDC nominal Credentials 37 bit. HID H10302 (No Site Code) 35 bit. HID H5xxxx (Corp 1000) 32 bit. MIFARE Classic (No Site Code) 26 bit. HID H10301 EM-EM4200 (3-byte or 5-byte) Ordering information B901 Door Controller Fully supervised, addressable SDI2/SDI bus device that allows access control integration for Bosch G and B Series Control Panels. Order number B901 | F.01U.323.803 |
|---|
