| Recognize | 125 px/m 9 m/39 m 21 m supports Media Service 2, which is part of ONVIF (38 px/ft) (28 ft/127 ft) (68 ft) Profile T. Compliance with these standards guarantees interoperability between network video |
|---|
| Identify | 250 px/m 4 m/19 m 10 m products regardless of manufacturer. (76 px/ft) (14 ft/63 ft) (34 ft) |
|---|
| Video - DINION 3100i IR | 3|6 Third-party integrators can easily access the internal Region Regulatory compliance/quality marks feature set of the camera for integration into large projects. Visit the Bosch Integration Partner Program USA UL CAP Cybersecurity Assurance Program (IPP) website (ipp.boschsecurity.com) for more |
|---|
| information. | Great Britain UKCA |
|---|
| Regulatory information | Installation/configuration notes |
|---|
| 標準 | Type |
|---|
| Emission | EN 55032 (Class A) CFR 47 FCC part 15 (Class A) VCCI (Class A) AS/NZS CISPR32 (Class A) |
|---|
| Immunity | EN 55035 EN IEC 61000-6-4: 2019 EN IEC 61000-6-2: 2019 |
|---|
| Environmental | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-6 IEC 60068-2-27 IEC 60068-2-30 Dimensions in mm (inch) EN IEC 63000: 2018 |
|---|
| RoHS EU, 2011/65/EU and 2015/863/EU | Technical specifications |
|---|
| WEEE EU, 2012/19/EU | Electrical Packaging EU, 94/62/EU N2580-1 (Bosch standard) |
|---|
| PoE input | PoE IEEE 802.3af / 802.3at Type 1, N33.6 (Bosch standard) Class 3 |
|---|
| Safety | EN IEC 62368-1 Power consumption PoE (W) (typical 2.6 W - 7.72 W |
|---|
| IEC 62368-1 | – maximum) UL 62368-1 Sensor |
|---|
| 防護等級 | EN 60529 (IP66) 2 MP |
|---|
| Image performance | IEC 62676-5 Total sensor pixels 2 MP approx. |
|---|
| Color representation | ITU-R BT.709-6 Sensor type 1/2.8 inch CMOS |
|---|
| ONVIF conformance | EN 50132-5-2, EN 62676-2 Effective pixels (H x V) 1,920 x 1,080 |
|---|
| IR lighting | IEC 62471 5 MP |
|---|
| Impact protection | EN 62262 (IK10) Total sensor pixels 5 MP approx. |
|---|
| Marks | CE, FCC, UL, WEEE, RCM, VCCI, UKCA, BIS, Sensor type 1/2.7 inch CMOS KCC, CMIM |
|---|
| Effective pixels (H x V) | 2,592 x 1,944 |
|---|
| Compliance | NDAA compliant |
|---|
| Region | Regulatory compliance/quality marks |
|---|
| Europe | CE |
|---|
| 靈敏度 | 5 MP 2 MP Zoom/focus control Motorized |
|---|
| Color (lx) (sensitivity measured ac- | 0.06 lx Horizontal field of view (º) 101° – 30° Video functions |
|---|
| Minimum illumination with IR (lx) | 0 lx |
|---|
| Day/night modes | Auto (adjustable switch points); Color; Monochrome 5 MP |
|---|
| cording to IEC 62676 Part 5) | 180°; Backlight compensation (BLC); Sharpness enhancement; In- |
|---|
| ured according to IEC 62676 Part 5) | ation; Brightness; Video watermark- |
|---|
| White balance (K) | 2,000 K – 10,000 K |
|---|
| Dynamic range | White balance modes Basic; Standard; Manual mode; Hold mode; Sodium lamp auto |
|---|
| Shutter modes | Automatic Electronic Shutter (AES); |
|---|
| High Dynamic Range (HDR) (dB) | 120 dB 1/15,000 max; 1/25 [30] min |
|---|
| Optical | Number of privacy masks 8 2 MP Video streaming |
|---|
| Lens focal length (mm) | 3.3 mm – 10.2 mm |
|---|
| Lens aperture (/F) | 1.6 /F |
|---|
| 視頻壓縮 | H.264 (ISO/IEC 14496-10); M- JPEG; H.265/HEVC |
|---|
| Iris control | DC-iris |
|---|
| Streaming | Multiple configurable streams in |
|---|
| IR corrected | Yes H.265; H.264 and M-JPEG; Config- urable framerate and bandwidth; |
|---|
| Day / Night | Switchable IR cut-filter Bosch Intelligent Streaming |
|---|
| Zoom/focus control | Motorized |
|---|
| Camera processing latency | <120ms |
|---|
| Horizontal field of view (º) | 106° – 31° |
|---|
| GOP structure | IP |
|---|
| Vertical field of view (º) | 55° – 18° |
|---|
| Frame rate (fps) | 1 fps – 30 fps 5 MP Video signal-to-noise ratio (dB) >55 dB |
|---|
| Video resolution (H x V) | 5MP (4:3), 2592 x 1944, to 0.1MP |
|---|
| Video content analysis | Data security |
|---|
| Analysis type | Intelligent Video Analytics Pro: IVA Secure element RSA 4096 bit; AES/CBC 256 bit Pro Buildings |
|---|
| PKI | X.509 certificates |
|---|
| Alarm triggers | Any object; Object in field; Line |
|---|
| crossing; Enter / leave field; Loiter- | End-to-end encryption Full end-to-end with supported VMS ing; Follow route; Counting; Occu- |
|---|
| pancy; Condition change; Similarity | Encryption TLS 1.2; AES 256; AES 128; TLS |
|---|
| search; Objects stopping or starting | 1.3 to move |
|---|
| Local storage encryption | XTS-AES |
|---|
| Object classes | Person; Vehicle |
|---|
| Video authentication | MD5; SHA-1; SHA-256; Checksum |
|---|
| Object filters | Duration; Size; Aspect ratio; Direc- |
|---|
| tion; Color | Firmware protection Signed firmware; Secure boot |
|---|
| Tracking modes | Base tracking (2D) Platform |
|---|
| Common Product Platform | CPP14.3 |
|---|
| Additional functionalities | Tamper detection |
|---|
| Memory (MB) | NBE-3702-AL: 1024 MB RAM, |
|---|
| Night vision | 8192 MB Flash NBE-3703-AL: 2048 MB RAM, 8192 MB Flash |
|---|
| IR function | On; Off; Auto |
|---|
| Built-in IR (m) | 30 m |
|---|
| Built-in IR (ft) | 98 ft Ethernet type 10/100BASE-T |
|---|
| IR intensity | Manually adjustable System integration |
|---|
| Wavelength (nm) | 850 nm |
|---|
| Protocols / standards | IPv4; IPv6; UDP; TCP; HTTP; HTTPS; Inputs and outputs RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); |
|---|
| Ethernet | Shielded RJ45 NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; |
|---|
| Storage | DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; |
|---|
| Internal storage | 5-s-pre-alarm-recording SOAP; CHAP; Digest authentication |
|---|
| Memory card slot | Micro SDHC; Micro SDXC; Micro SD Conformity ONVIF Profile S; ONVIF Profile G; |
|---|
| card up to 2 TB | ONVIF Profile T; Auto-MDIX; ONVIF Profile M |
|---|
| Industrial SD cards | Extreme lifetime and health monitor- |
|---|
| ing support that provides early ser- | Mechanical vice indication |
|---|
| Recording mode | Continuous (ring); Scheduled; Dimensions (Ø x H) (mm) 123 mm x 97 mm Alarm; Event |
|---|
| Dimensions (Ø x H) (in) | 4.8 in x 9.5 in |
|---|

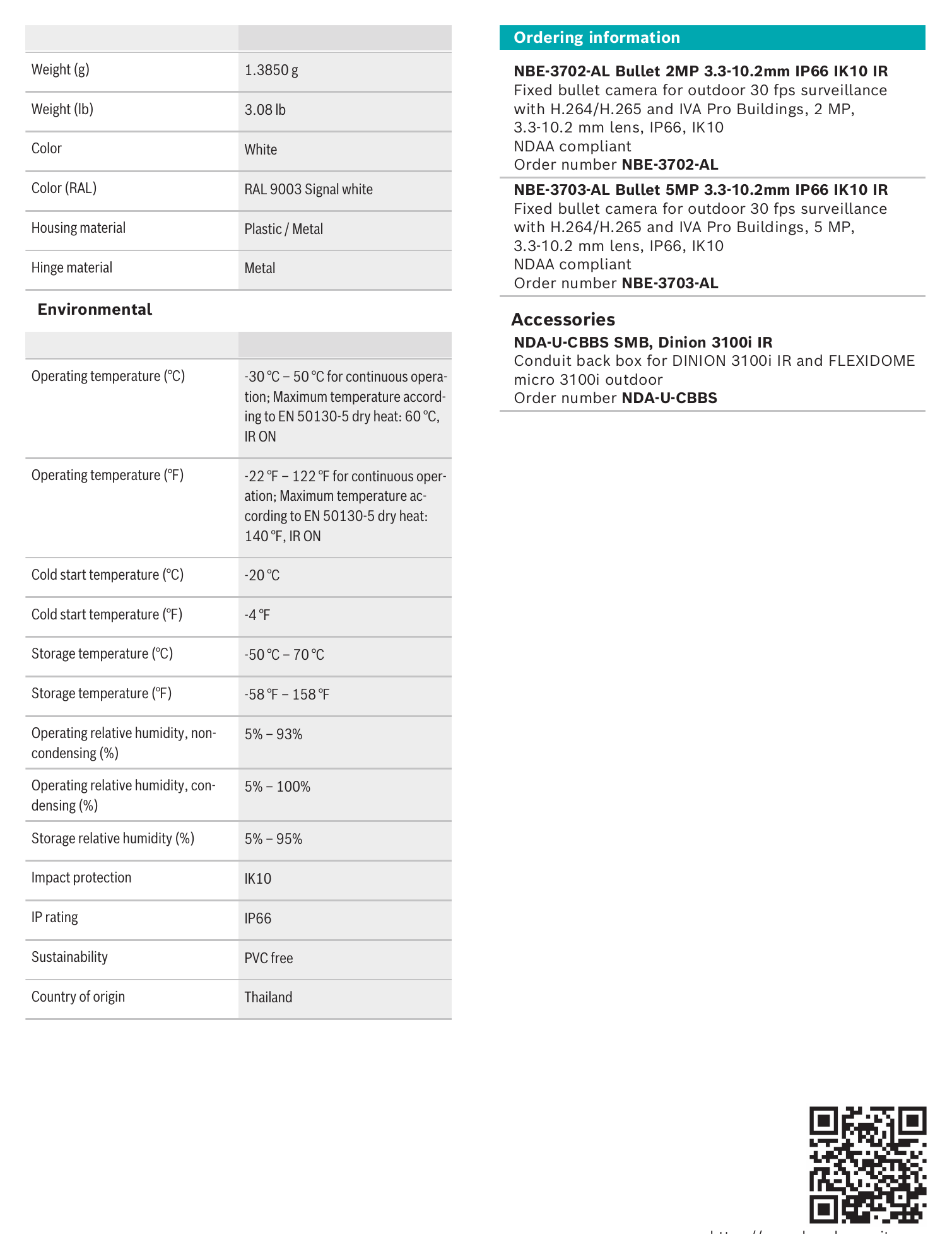

| Weight (g) | 1.3850 g NBE-3702-AL Bullet 2MP 3.3-10.2mm IP66 IK10 IR Fixed bullet camera for outdoor 30 fps surveillance |
|---|
| Weight (lb) | 3.08 lb with H.264/H.265 and IVA Pro Buildings, 2 MP, 3.3-10.2 mm lens, IP66, IK10 |
|---|
| 顏色 | White NDAA compliant Order number NBE-3702-AL |
|---|
| Color (RAL) | RAL 9003 Signal white NBE-3703-AL Bullet 5MP 3.3-10.2mm IP66 IK10 IR Fixed bullet camera for outdoor 30 fps surveillance |
|---|
| Housing material | Plastic / Metal with H.264/H.265 and IVA Pro Buildings, 5 MP, 3.3-10.2 mm lens, IP66, IK10 |
|---|
| Hinge material | Metal NDAA compliant Order number NBE-3703-AL Environmental Accessories NDA-U-CBBS SMB, Dinion 3100i IR Conduit back box for DINION 3100i IR and FLEXIDOME |
|---|
| Operating temperature (°C) | -30 °C – 50 °C for continuous opera- micro 3100i outdoor |
|---|
| tion; Maximum temperature accord- | Order number NDA-U-CBBS ing to EN 50130-5 dry heat: 60 °C, IR ON |
|---|
| Operating temperature (°F) | -22 °F – 122 °F for continuous oper- ation; Maximum temperature ac- cording to EN 50130-5 dry heat: 140 °F, IR ON |
|---|
| Cold start temperature (°C) | -20 °C |
|---|
| Cold start temperature (°F) | -4 °F |
|---|
| Storage temperature (°C) | -50 °C – 70 °C |
|---|
| Storage temperature (°F) | -58 °F – 158 °F |
|---|
| Operating relative humidity, non- | 5% – 93% |
|---|
| Operating relative humidity, con- | 5% – 100% |
|---|
| Storage relative humidity (%) | 5% – 95% |
|---|
| IP rating | IP66 |
|---|
| Sustainability | PVC free |
|---|
| Country of origin | Thailand https://www.boschsecurity.com |
|---|
