| Voltage (Operating): | 9 VDC to 15 VDC 3m 10ft |
|---|
| Current (Maximum): | < 26 mA with alarm, trouble, and LEDs 2 1 3 active. 0m 0ft 0m 2m 4m 6m 8m 10m 12m 14m 16m |
|---|
| Current (Standby): | 18 mA at 12 VDC 0ft 7ft 13ft 20ft 26ft 33ft 39ft 46ft 52ft |
|---|
| Relay: | Solid state relay, normally-closed (NC) contacts, power supervised. 2m 7ft 3 W, 125 mA, 25 VDC, resistance < 10 Ω. 3 2 1 0m 0 ft 0m 2m 4m 6m 8m 10m 12m 14m 16m Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour 0 f t 7 f t 13 f t 20 f t 26 f t protection circuit. 6m 20 f t |
|---|
| Trouble: | Solid state relay normally-closed (NC) 4m 13 f t contacts. 7 ft Mechanical 0m 2 90° 0 ft Enclosure Design 2m 7 ft |
|---|
| 顏色 | White 4m 13 f t |
|---|

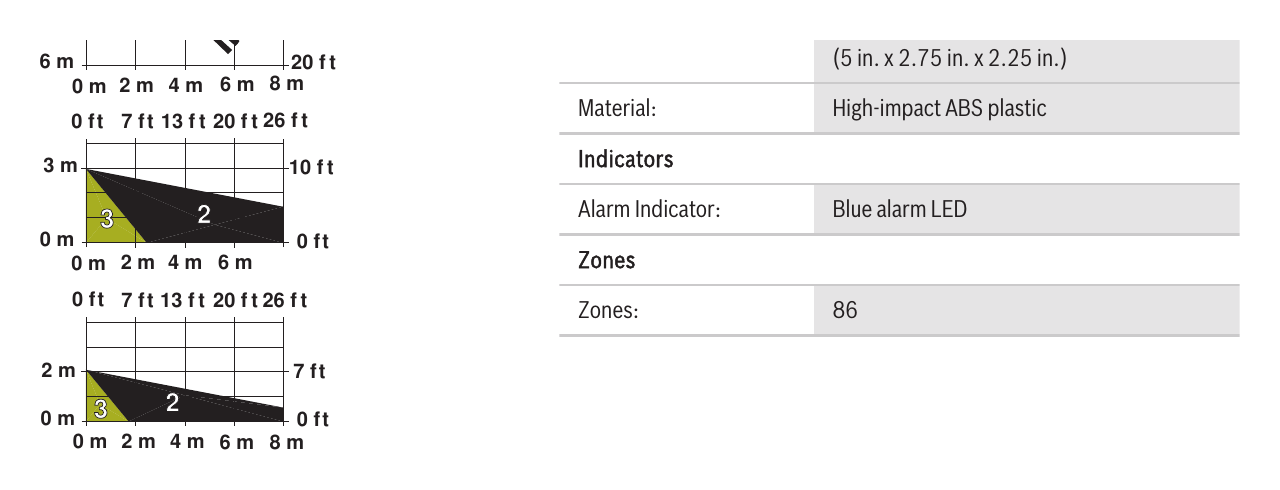

| 尺寸 | 127 mm x 69 mm x 58 mm 6m 20 f t (5 in. x 2.75 in. x 2.25 in.) 0m 2m 4m 6m 8m 0 f t 7 f t 13 f t 20 f t 26 f t |
|---|
| 材質 | High-impact ABS plastic 3m 10 f t Indicators 3 2 Alarm Indicator: Blue alarm LED 0m 0 ft 0m 2m 4m 6m Zones 0 f t 7 f t 13 f t 20 f t 26 f t |
|---|
| Zones: | 86 2m 7 ft 3 2 0m 0 ft 0m 2m 4m 6m 8m |
|---|
| Environmental | Accessories |
|---|
| 相對濕度 | 0 to 95%, non-condensing B328 Mounting bracket, gimbal Mounts on a single-gang box and allows rotation of a |
|---|
| Temperature (Operating | -30°C to +55°C (-22°F to +130°F) detector. Wires are hidden inside. |
|---|
| and Storage): | For UL Certificated installations, 0°C to Order number B328 +49°C (+32°F to +120°F) B335-3 Mounting bracket, swivel, low profile |
|---|
| Protection Rating | IP 41, IK04 Swiveling, low-profile, universal bracket for wall (EN 60529, EN 50102): mounting. The vertical swivel range is +10° to -20°, while the horizontal swivel range is ±25°. |
|---|
| Ordering information | Order number B335-3 ISC-PPR1-WA16G Motion detector anti-mask, 50ft B338 Mounting bracket, ceiling, universal (16m) Swiveling universal bracket for ceiling mounting. The 10.525 GHz frequency. vertical swivel range is +7° to -16°, while the horizontal |
|---|
| Order number ISC-PPR1-WA16G | swivel range is ±45°. Order number B338 ISC-PPR1-WA16H Motion detector anti-mask 16m 10.588GHz Provides PIR, 16 m x 21 m (50 ft x 70 ft) coverage with anti-mask. Order number ISC-PPR1-WA16H |
|---|
