| Controller | Power over Ethernet Rear side interconnection |
|---|
| Front side indicator | Network port (PoE PD) |
|---|
| Status screen | LCD Dimensions 3.9 21.2 |
|---|
| [0.15] | [0.83] [0.99] 25.2 [0.72] 18.5 [2.06] 52.4 [3.28] 96.8 83.5 44 44 |
|---|
| [1.73] | [1.73] 33.3 33.0 6.4 [1.31] |
|---|
| [1.29] | [0.25] 7.9 [0.31] [4.50] [2.63] 114.4 66.9 79.4 [3.12] |
|---|
| Architects’ and engineers’ specifications | and a full color LCD with backlight for easy |
|---|
| Regulatory information | Environmental |
|---|
| Regulatory areas | Operating temperature (°C) -5 °C – 50 °C |
|---|
| Immunity | EN 55035 |
|---|
| Operating temperature (°F) | -13 °F – 131 °F |
|---|
| Emissions | EN 55032 |
|---|
| Storage temperature (°C) | -30 °C – 70 °C EN 61000‑6‑3 ICES‑003 |
|---|
| Storage temperature (°F) | -22 °F – 158 °F ANSI C63.4 FCC‑47 part 15B class A |
|---|
| Operating relative humidity, non- | 5% – 95% condensing (%) |
|---|
| Environment | EN/IEC 63000 |
|---|
| Air pressure (hPa) | 560 hPa – 1,070 hPa Parts included |
|---|
| Installation altitude (m) | -500 m – 5,000 m |
|---|
| Quantity | Component |
|---|
| Installation altitude (ft) | -1,640 ft – 16,404 ft Operating vibration |
|---|
| Amplitude (mm) | < 0.7 mm |
|---|
| Acceleration (G) | <2G |
|---|
| Bump (transport) (G) | < 10 G (IEC 60068-2-27) Technical specifications Electrical |
|---|

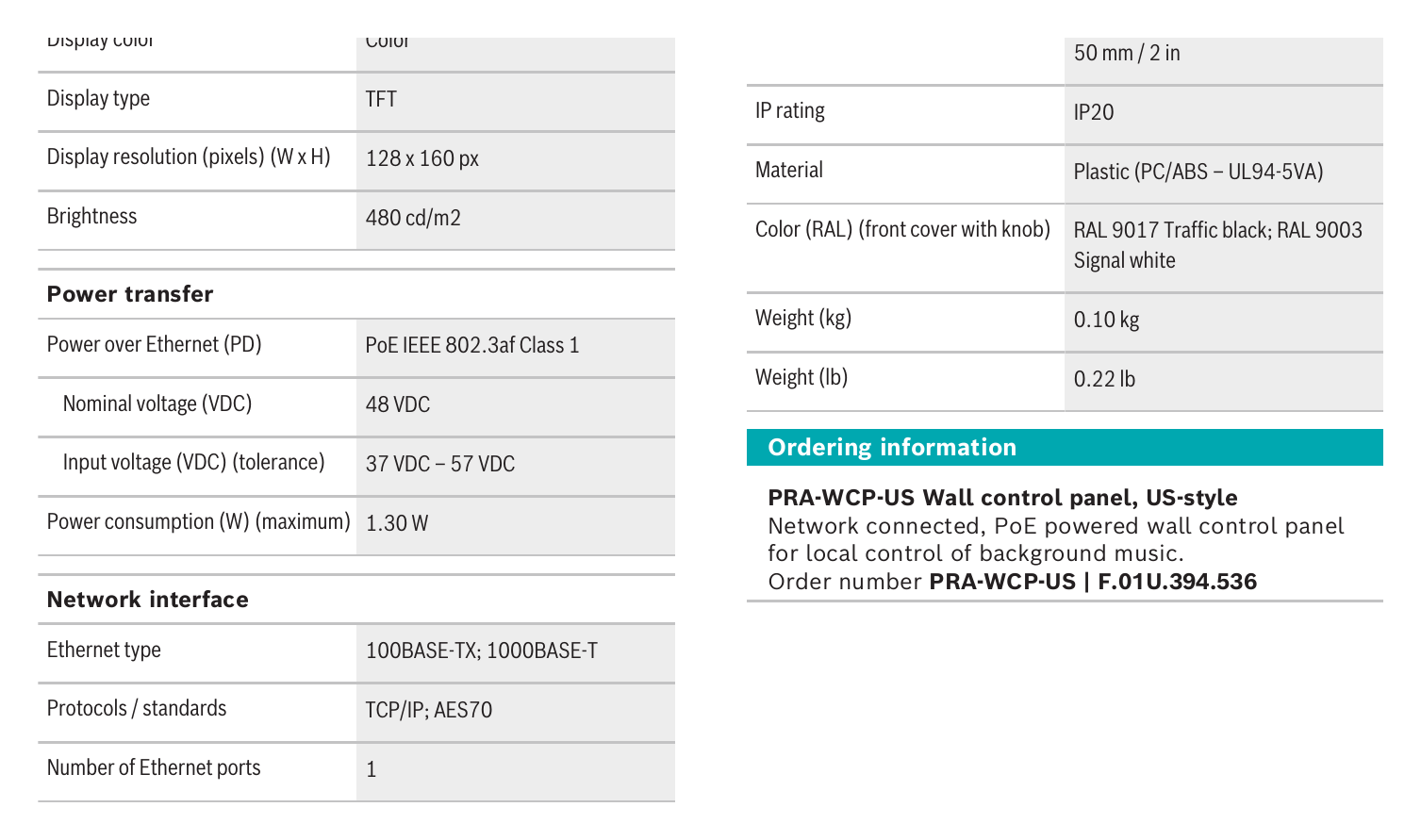

| Dimensions (H x W x D) (mm) | 107.8 mm x 44 mm x 47.3 mm |
|---|
| Dimensions (H x W x D) (in) | 4.24 in x 1.73 in x 1.86 in |
|---|
| Display size (in) | 1.77 in |
|---|
| Dimensions of wall box | US single-gang with depth of |
|---|
| Display color | Color 50 mm / 2 in |
|---|
| Display type | TFT |
|---|
| IP rating | IP20 |
|---|
| Display resolution (pixels) (W x H) | 128 x 160 px |
|---|
| 材質 | Plastic (PC/ABS ‒ UL94‑5VA) |
|---|
| Brightness | 480 cd/m2 Color (RAL) (front cover with knob) RAL 9017 Traffic black; RAL 9003 Signal white |
|---|
| Weight (kg) | 0.10 kg |
|---|
| Power over Ethernet (PD) | PoE IEEE 802.3af Class 1 |
|---|
| Weight (lb) | 0.22 lb |
|---|
| Nominal voltage (VDC) | 48 VDC Ordering information |
|---|
| Input voltage (VDC) (tolerance) | 37 VDC – 57 VDC PRA-WCP-US Wall control panel, US-style |
|---|

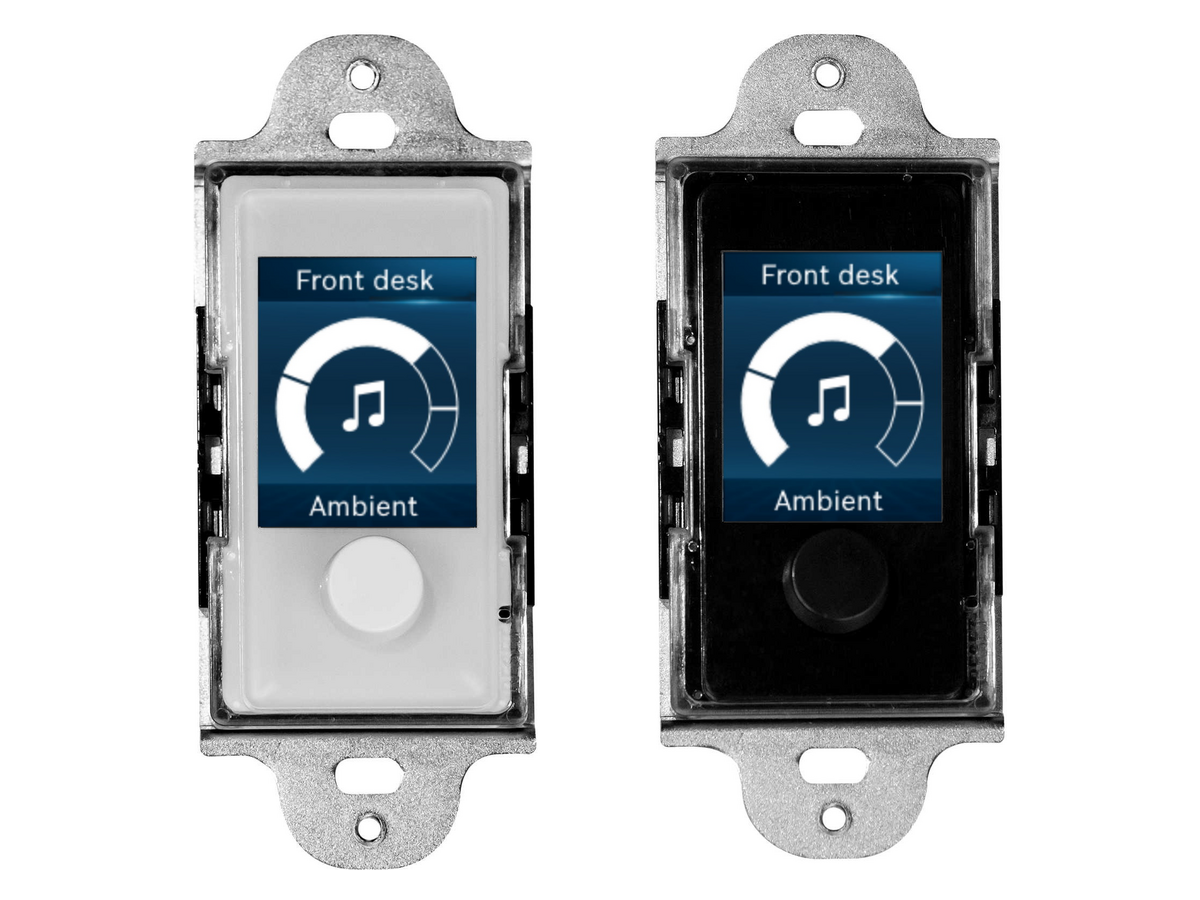

| Power consumption (W) (maximum) 1.30 W | Network connected, PoE powered wall control panel for local control of background music. Order number PRA-WCP-US | F.01U.394.536 |
|---|
| Ethernet type | 100BASE-TX; 1000BASE-T |
|---|
| Protocols / standards | TCP/IP; AES70 |
|---|
| Number of Ethernet ports | 1 |
|---|
