C1300-24T-4G 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，C1300-24T-4G 原廠行貨連保養，提供上門安裝、佈線及網絡設定一站式服務，全港 32 區均有服務。

此設備適合什麼工程場景？

詳細規格請參閱上方規格表；我們會按現場點位數量、距離及功率需求設計網絡架構，並提供整體方案報價。

安裝後有問題如何跟進？

原廠行貨保養，工程另設保養期；網絡設備我們會預先設定好即插即用，日後有問題可遠程協助或上門檢查。

C1300-24T-4G 定 Cisco RV340 邊個好？

兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。

C1300-24T-4G 保養、維修邊度做？

HKEZIT 提供 C1300-24T-4G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱網絡 WiFi安裝工程頁面或聯絡我們查詢保養範圍。

CISCO C1300-24T-4G 安裝、保養、維修

Name: CISCO C1300-24T-4G C1300-24T-4G 24埠千兆智能網管交換機
Brand: Cisco
SKU: C1300-24T-4G

詳細規格

Classless Interdomain	Support for CIDR Routing (CIDR)
Routing Information	Support for RIP v2 for dynamic routing Protocol (RIP) v2
Policy-Based Routing	Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 (PBR) Access Control List (ACL) Open Shortest Path First Support for OSPF v2 and v3 (in C1300X SKUs only) (OSPF)
DHCP server	Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options
DHCP relay at Layer 3	Relay of DHCP traffic across IP domains
User Datagram Protocol	Relay of broadcast information across Layer 3 domains for application discovery or relaying of (UDP) relay Bootstrap Protocol (BOOTP)/DHCP packets © 2026 Cisco and/or its affiliates. All rights reserved. Page 11 of 41
Feature	Description Stacking
Hardware stacking	Stacking information for C1300 and C1300X C1300/X supports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover Stacking is supported on the following models: ● C1300 Family 1: C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-24MGP-4X, C1300-48MGP-4X ● C1300 Family 2: C1300-12XT-2X, C1
High availability	Fast stack failover delivers minimal traffic loss. Support for LAG across multiple units in a stack
Plug-and-play stacking	Active/standby for resilient stack control configuration/
management	Auto-numbering Hot swap of units in stack Ring and chain stacking options, auto stacking port speed, flexible stacking port options
High-speed stack	Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces interconnects Security
Secure Shell (SSH)	SSH is a secure replacement for Telnet traffic. Secure Copy Protocol (SCP) also uses SSH.
Protocol	SSH v1 and v2 are supported
Secure Sockets Layer	SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based (SSL) management GUI in the switch
IEEE 802.1X	802.1X: RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated (authenticator role) VLAN, single/multiple host mode, and single/multiple sessions Supports time-based 802.1X, dynamic VLAN assignment, and MAC authentication
IEEE 802.1X supplicant	A switch can be configured to act as a supplicant to another switch. This enables extended secure access in areas outside the wiring closet (such as conference rooms)
Web-based	Web-based authentication provides network admission control through a web browser to any
authentication	host devices and operating systems STP Bridge Protocol Data A security mechanism to protect the network from invalid configurations. A port enabled for
Unit (BPDU) Guard	BPDU Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops © 2026 Cisco and/or its affiliates. All rights reserved. Page 12 of 41
STP Root Guard	Prevents edge devices not in the network administrator’s control from becoming STP root nodes
STP loopback guard	Provides additional protection against Layer 2 forwarding loops (STP loops)
DHCP snooping	Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP servers
IP Source Guard (IPSG)	When IPSG is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing Dynamic ARP Inspection The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings (DAI) or if there is a discrepancy betw
IP/MAC/port binding	The preceding features (DHCP snooping, IP Source Guard, and Dynamic ARP Inspection) work (IPMB) together to prevent Denial of-Service (DoS) attacks in the network, thereby increasing network availability
Secure Core Technology	Makes sure that the switch will receive and process management and protocol traffic no (SCT) matter how much traffic is received
Secure Sensitive Data	A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the (SSD) switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to t he user configured access level and the access method of the user
Trustworthy systems	Trustworthy systems provide a highly secure foundation for Cisco products Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
Private VLAN	Provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks.
Layer 2 isolation Private	PVE (also known as protected ports) provides Layer 2 isolation between devices in the same
VLAN Edge (PVE)	VLAN; supports multiple uplinks
Port security	Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
RADIUS/TACACS+	Supports RADIUS and TACACS authentication. Switch functions as a client
RADIUS accounting	The RADIUS accounting functions allow data to be sent at the start and end of services indicating the number of resources (such as time, packets, bytes, and so on) used during the session
Storm control	Broadcast, multicast, and unknown unicast
DoS prevention	DoS attack prevention
Multiple user privilege	Level 1, 7, and 15 privilege levels levels in CLI © 2026 Cisco and/or its affiliates. All rights reserved. Page 13 of 41
ACLs	Support for up to 1024 rules (in Catalyst 1300 1Gigabit Ethernet SKUs) and up to 2048 rules (in Catalyst 1300 10Gigabit Ethernet SKUs) and 3072 rules (in Catalyst 1300X SKUs) Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p pri
Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR)
Class of service	Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP and Class of Service (802.1p/CoS)
Rate limiting	Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing
Congestion avoidance	A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization iSCSI traffic optimization A mechanism for giving priority to iSCSI traffic over other types of traffic Standards
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE -T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802
IPv6	IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD), ICMP version 6 DHCPv6 stateful client IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) tunnel support
IPv6 QoS	Prioritize IPv6 packets in hardware
IPv6 ACL	Drop or rate-limit IPv6 packets in hardware
IPv6 First Hop Security	RA guard ND inspection DHCPv6 guard Neighbor binding table (snooping and static entries) Neighbor binding integrity check
Multicast Listener	Deliver IPv6 multicast packets only to the required receivers Discovery (MLD v1/2) snooping
MLD proxy	The MLD proxy provides a mechanism for multicast forwarding based on MLD membership information without the need for more complicated multicast routing protocols
IPv6 applications	Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, Telnet client, DHCP client, DHCP auto-config, IPv6 DHCP relay, TACACS+
IPv6 RFCs supported	RFC 4443 (which obsoletes RFC 2463): ICMP version 6 RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture RFC 4291: IPv6 addressing architecture RFC 2460: IPv6 specification RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6 RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto-configuration RFC 1981: path MTU discovery RFC 4007: IPv6 scoped address architecture R

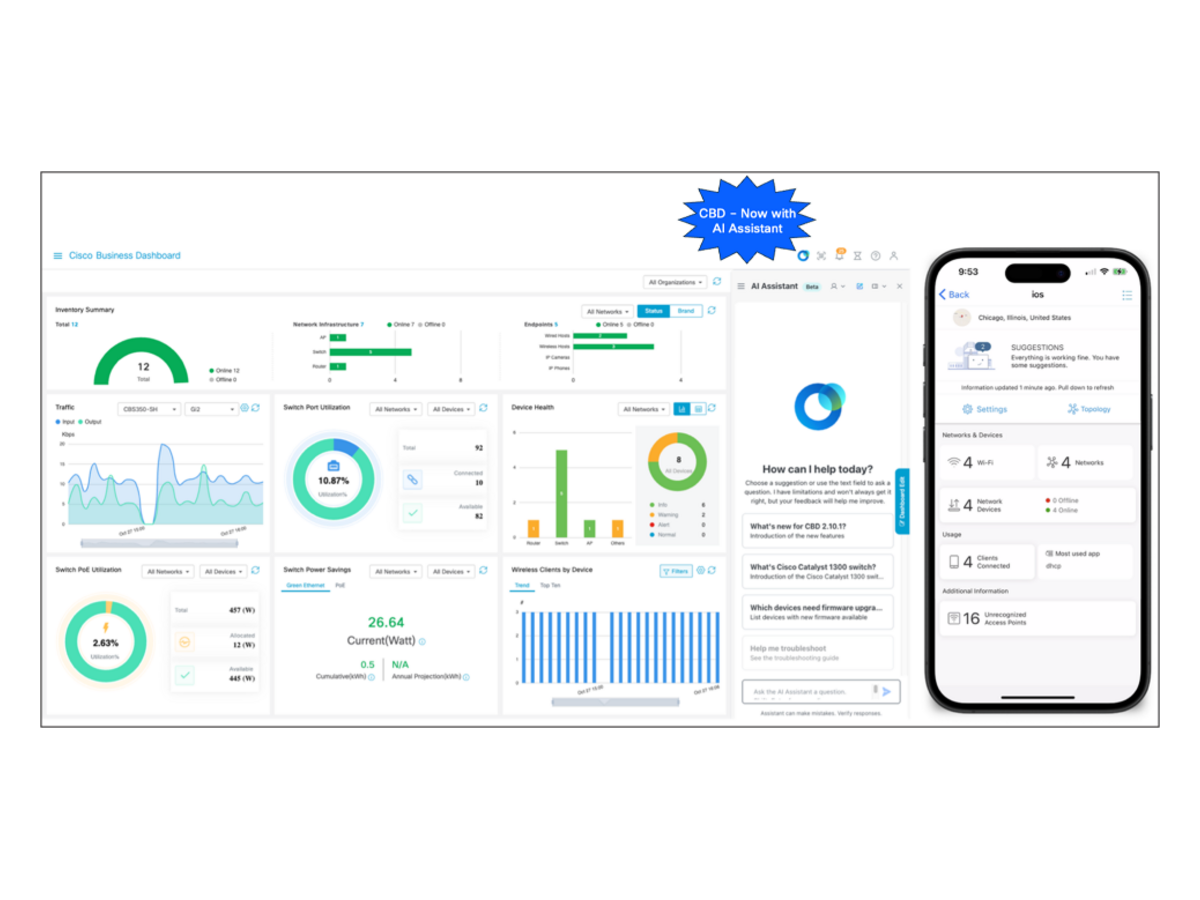

Cisco Business	Support for embedded probe for Cisco Business Dashboard running on the switch. Dashboard Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe onsite
Cisco Business mobile	Mobile app for Cisco Business and Catalyst 1200 and 1300/X switches and wireless products.
app	Helps to set up a local network in minutes and provide easy management at your fingertips
Cisco Network Plug and	The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to
Play (PnP) agent	ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience. Supports Cisco PnP Connect
Web user interface	Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS) Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search
SNMP	SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-Based Security Model (USM)
Standard MIBs	lldp-MIB rfc2668-MIB
lldpextdot1-MIB	rfc2737-MIB
lldpextdot3-MIB	rfc2925-MIB
lldpextmed-MIB	rfc3621-MIB
rfc2674-MIB	rfc4668-MIB
rfc2575-MIB	rfc4670-MIB
rfc2573-MIB	trunk-MIB
rfc2233-MIB	tunnel-MIB
rfc2013-MIB	udp-MIB
rfc2012-MIB	draft-ietf-bridge-8021x-MIB
rfc2011-MIB	draft-ietf-bridge-rstpmib-04-MIB
RFC-1212	draft-ietf-hubmib-etherif-mib-v3-00-MIB
RFC-1215	draft-ietf-syslog-device-MIB
SNMPv2-CONF	ianaaddrfamnumbers-MIB
SNMPv2-TC	ianaifty-MIB
p-bridge-MIB	ianaprot-MIB
q-bridge-MIB	inet-address-MIB
rfc1389-MIB	ip-forward-MIB
rfc1493-MIB	ip-MIB
rfc1611-MIB	RFC1155-SMI
rfc1612-MIB	RFC1213-MIB
rfc1850-MIB	SNMPv2-MIB © 2026 Cisco and/or its affiliates. All rights reserved. Page 16 of 41
rfc1907-MIB	SNMPv2-SMI
rfc2571-MIB	SNMPv2-TM
rfc2572-MIB	RMON-MIB
rfc2574-MIB	rfc1724-MIB
rfc2576-MIB	dcb-raj-DCBX-MIB-1108-MIB
rfc2613-MIB	rfc1213-MIB
rfc2665-MIB	rfc1757-MIB
Private MIBs	CISCOSB-lldp-MIB CISCOSB-ip-MIB
CISCOSB-brgmulticast-MIB	CISCOSB-iprouter-MIB
CISCOSB-bridgemibobjectsMIB	CISCOSB-ipv6-MIB
CISCOSB-bonjour-MIB	CISCOSB-mnginf-MIB
CISCOSB-dhcpcl-MIB	CISCOSB-lcli-MIB
CISCOSB-MIB	CISCOSB-localization-MIB
CISCOSB-wrandomtaildropMIB	CISCOSB-mcmngr-MIB
CISCOSB-traceroute-MIB	CISCOSB-mng-MIB
CISCOSB-telnet-MIB	CISCOSB-physdescription-MIB
CISCOSB-stormctrl-MIB	CISCOSB-PoE-MIB
CISCOSB-ssh-MIB	CISCOSB-protectedport-MIB
CISCOSB-socket-MIB	CISCOSB-rmon-MIB
CISCOSB-sntp-MIB	CISCOSB-rs232-MIB
CISCOSB-smon-MIB	CISCOSB-SecuritySuite-MIB
CISCOSB-phy-MIB	CISCOSB-snmp-MIB
CISCOSB-	CISCOSB-specialbpdu-MIB
multisessionterminal-MIB	CISCOSB-banner-MIB CISCOSB-mri-MIB CISCOSB-syslog-MIB CISCOSB-jumboframes-MIB
CISCOSB-gvrp-MIB	CISCOSB-TcpSession-MIB
CISCOSB-endofmib-MIB	CISCOSB-traps-MIB CISCOSB-trunk-MIB
CISCOSB-dot1x-MIB	CISCOSB-tuning-MIB CISCOSB-tunnel-MIB
CISCOSB-deviceparams-MIB	CISCOSB-udp-MIB
CISCOSB-cli-MIB	CISCOSB-vlan-MIB
CISCOSB-cdb-MIB	CISCOSB-ipstdacl-MIB
CISCOSB-brgmacswitch-MIB	CISCOSB-eee-MIB
CISCOSB-3sw2swtables-MIB	CISCOSB-ssl-MIB
CISCOSB-smartPorts-MIB	CISCOSB-qosclimib-MIB
CISCOSB-tbi-MIB	CISCOSB-digitalkeymanage-MIB
CISCOSB-macbaseprio-MIB	CISCOSB-tbp-MIB
CISCOSB-policy-MIB	CISCOSMB-MIB CISCOSB-env_mib © 2026 Cisco and/or its affiliates. All rights reserved. Page 17 of 41
CISCOSB-sensor-MIB	CISCOSB-secsd-MIB
CISCOSB-aaa-MIB	CISCOSB-draft-ietf-entmib-sensor-MIB
CISCOSB-application-MIB	CISCOSB-draft-ietf-syslog-device-MIB
CISCOSB-bridgesecurity-MIB	CISCOSB-rfc2925-MIB
CISCOSB-copy-MIB	CISCO-SMI-MIB
CISCOSB-CpuCounters-MIB	CISCOSB-DebugCapabilities-MIB
Remote Monitoring	Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and (RMON) events) for enhanced traffic management, monitoring, and analysis IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
Firmware upgrade	Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH Dual images for resilient firmware upgrades
Port mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port
VLAN mirroring	Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port
Flow-based redirection	Redirect or mirror traffic to a destination port or mirroring session based on flow and mirroring
Remote Switch Port	Traffic can be mirrored across a Layer 2 domain to a remote port on a different switch for
Analyzer (RSPAN)	easier troubleshooting
sFlow agent	Switch can export sFlow sample to external collectors. sFlow provides visibility into network traffic down to the flow level
DHCP (options 12, 59,	DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, 60, 66, 67, 82, 125, 129, auto-configuration (with configuration and image file download), DHCP relay, and hostname and 150)
Secure Copy (SCP)	Securely transfer files to and from the switch © 2026 Cisco and/or its affiliates. All rights reserved. Page 18 of 41
Auto-configuration with	Enables secure mass deployment with protection of sensitive data SCP file download
Text-editable	Configuration files can be edited with a text editor and downloaded to another switch,
configuration files	facilitating easier mass deployment
Smartports	Simplified configuration of QoS and security capabilities
Auto Smartports	Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP -MED. This facilitates zero-touch deployments
Text view CLI	Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI
Localization	Localization of GUI and documentation into multiple languages
Login banner	Configurable multiple banners for web as well as CLI
Other management	Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, Xmodem upgrade, cable diagnostics, ping, syslog, Telnet client (SSH secure support), automatic time settings from management station Green (power efficiency)
Energy detect	Automatically turns power off on an RJ-45 port when the detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up
Cable length detection	Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables
EEE compliant (802.3az)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs	LEDs can be manually turned off to save energy
Time-based port	Link up or down based on user-defined schedule (when the port is administratively up) operation
Time-based PoE	PoE power can be on or off based on a user-defined schedule to save energy
Persistent PoE	Provides PoE power while the device is rebooting
Jumbo frames	Frame sizes up to 9000 bytes. The default MTU is 2000 bytes
MAC table	16,000 addresses (in Catalyst 1300 1 Gigabit Ethernet SKUs) and up to 32,000 rules (in Catalyst 1300 10 Gigabit Ethernet SKUs and Catalyst 1300X SKUs)
Chip guard	Detects tampering attempts and responds during bootup
Boot integrity	Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable © 2026 Cisco and/or its affiliates. All rights reserved. Page 19 of 41
Bonjour	The switch advertises itself using the Bonjour protocol
Link Layer Discovery	LLDP allows the switch to advertise its identification, configuration, and capabilities to
Protocol (LLDP)	neighboring devices that store the data in a MIB. LLDP -MED is an enhancement to LLDP that (802.1ab) with LLDP- adds the extensions needed for IP phones. Media Endpoint Discovery (MED) extensions
Cisco Discovery	The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected
PoE	The total power available for PoE per switch is as follows: support PoE
C1300-8P-E-2G	67W 8
C1300-8FP-2G	120W 8
C1300-16P-2G	120W 16
C1300-16FP-2G	240W 16
C1300-24P-4G	195W 24
C1300-24FP-4G	375W 24
C1300-48P-4G	375W 48
C1300-48FP-4G	740W 48
C1300-16P-4X	120W 16
C1300-24P-4X	195W 24
C1300-24FP-4X	375W 24
C1300-48P-4X	375W 48
C1300-48FP-4X	740W 48
C1300-8MGP-2X	120W 8
C1300-24MGP-4X	375W 24
C1300-48MGP-4X	740W 48 © 2026 Cisco and/or its affiliates. All rights reserved. Page 20 of 41
PoE+	available for PoE per switch is as follows: support PoE
C1300X-24P-4X	385W 24
C1300X-48P-4X	740W 48
C1300X-24MU-4X	740W 24
C1300X-10NU-2X	385W 10
C1300X-24NGU-4X	740W 24
C1300X-48NGU-4X	740W 48
功耗	Model System power Power Heat dissipation Idle Power (worst case) consumption consumption (BTU/hr) (with PoE)
C1300-8T-E-2G	110V=10.63W N/A 36.33 110V=4.58W 220V=10.65W 220V=4.72W
C1300-16T-2G	110V=10.9W N/A 38.2 110V=4.6W 220V=11.2W 220V=4.9W
C1300-24T-4G	110V=14.6W N/A 50.5 110V=4.9W 220V=14.8W 220V=5.2W
C1300-48T-4G	110V=38.80W N/A 132.39 110V=13.36W 220V=38.07W 220V=13.09W
C1300-24T-4X	110V=22.3W N/A 76.4 110V=4.9W 220V=22.4W 220V=5.2W
C1300-48T-4X	110V=40.01W N/A 136.50 110V=13.12W 220V=39.77W 220V=12.93W
C1300-12XT-2X	110V=50.3W NA 218.38 110V=20.7W 220V=52W 220V=22.8W
C1300-12XS	110V=24.3W NA 132.39 110V=9.9W 220V=26.1W 220V=11.5W
C1300-16XTS	110V=33.36W NA 195.86 110V=16.4W 220V=35.2W 220V=18.3W
C1300-24XS	110V=49.46W NA 220.77 110V=21.5W 220V=49.02W 220V=21.3W
C1300-24XT	110V=87.3W NA 341.21 110V=36.5W 220V=88W 220V=37.8W
C1300-24XTS	110V=88.2W NA 300.76 110V=22.3W 220V=86.7W 220V=22.8W
C1300X-24T-4X	110V=31.7W NA 136.14 110V=50.3W 220V=32.1W 220V=52W
C1300X-48T-4X	110V=66.7W NA 285.6 110V=18.5W 220V=72.1W 220V=20W © 2026 Cisco and/or its affiliates. All rights reserved. Page 22 of 41
C1300X-24NGU-	110V=104.2W 110V=909.8W 3104.3 110V=25.5W 4X 220V=103.9W 220V=870.8W 220V=26.8W
C1300X-48NGU-	110V=113.2W 110V=858.4W 3079.46 110V=31.6W 4X 220V=122.4W 220V=869.1W 220V=41.5W
Ports	Model Total system ports RJ-45 ports Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])
Ethernet	combo
x 10G	Ethernet
Console port	Cisco standard RJ-45 console port and USB Type C port
USB port	USB Type C port on the front panel of the switch for easy file and image management as well as console port
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE -T
LEDs	System, Link/Act, PoE, Speed
Flash	1GB SLC
CPU	ARM dual-core at 1.5 GHz
DRAM	1 GB DDR4 (C1300); 2 GB DDR4 (C1300X) © 2026 Cisco and/or its affiliates. All rights reserved. Page 25 of 41
Packet buffer	All numbers are aggregate across all ports, as the buffers are dynamically shared:
Supported SFP modules	SKU Media Speed Maximum distance
MGBSX1	Multimode fiber 1000 Mbps 500 m
MGBLX1	Single-mode fiber 1000 Mbps 10 km
MGBLH1	Single-mode fiber 1000 Mbps 40 km
MGBT1	UTP Cat 5e 1000 Mbps 100 m
GLC-SX-MMD	Multimode fiber 1000 Mbps 550 m
GLC-EX-SMD	Single-mode fiber 1000 Mbps 40 km
GLC-ZX-SMD	Single-mode fiber 1000 Mbps 70 km
GLC-LH-SMD	Single-mode fiber 1000 Mbps 10 km
GLC-BX-U	Single-mode fiber 1000 Mbps 10 km
GLC-BX-D	Single-mode fiber 1000 Mbps 10 km
GLC-TE	UTP Cat 5e 1000 Mbps 100 m
CWDM-SFP-1470	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1490	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1510	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1530	Single-mode fiber 1000 Mbps 80 km © 2026 Cisco and/or its affiliates. All rights reserved. Page 27 of 41
CWDM-SFP-1550	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1570	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1590	Single-mode fiber 1000 Mbps 80 km
CWDM-SFP-1610	Single-mode fiber 1000 Mbps 80 km
SFP-H10GB-CU1M	Copper coax 10 Gigabit Ethernet 1m
SFP-H10GB-CU3M	Copper coax 10 Gigabit Ethernet 3m
SFP-H10GB-CU5M	Copper coax 10 Gigabit Ethernet 5m
SFP-10G-SR	Multimode fiber 10 Gigabit Ethernet 26 m to 400 m
SFP-10G-LR	Single-mode fiber 10 Gigabit Ethernet 10 km
SFP-10G-SR-S	Multimode fiber 10 Gigabit Ethernet 26 m to 400 m
SFP-10G-LR-S	Single-mode fiber 10 Gigabit Ethernet 10 km
SFP-10G-ER	Single-mode fiber 10 Gigabit Ethernet 40 km
SFP-10G-ER-S	Single-mode fiber 10 Gigabit Ethernet 40 km
SFP-10G-T-X	UTP CAT6A/CAT7 or 10 Gigabit Ethernet 30 m better
SFP-10G-BXD-I	Single-mode fiber 10 Gigabit Ethernet 10 km
SFP-10G-BXU-I	Single-mode fiber 10 Gigabit Ethernet 10 km
SFP-H10GB-CU15M	Twinax cable, 10 Gigabit Ethernet 5m passive, 30AWG cable assembly
SFP-H10GB-CU2M	Twinax cable, 10 Gigabit Ethernet 2m passive, 30AWG cable assembly
SFP-H10GB-CU25M	Twinax cable, 10 Gigabit Ethernet 2.5 m passive, 30AWG cable assembly
SFP-H10GB-ACU7M	Twinax cable, 10 Gigabit Ethernet 7m passive, 30AWG cable assembly
SFP-H10GBACU10M	Twinax cable, 10 Gigabit Ethernet 10 m passive, 30AWG cable assembly
SFP-10G-AOC1M	Active Optical Cable 10 Gigabit Ethernet 1m assembly © 2026 Cisco and/or its affiliates. All rights reserved. Page 28 of 41
SFP-10G-AOC2M	Active Optical Cable 10 Gigabit Ethernet 2m assembly
SFP-10G-AOC3M	Active Optical Cable 10 Gigabit Ethernet 3m assembly
SFP-10G-AOC5M	Active Optical Cable 10 Gigabit Ethernet 5m assembly
SFP-10G-AOC7M	Active Optical Cable 10 Gigabit Ethernet 7m assembly
SFP-10G-AOC10M	Active Optical Cable 10 Gigabit Ethernet 10 m assembly
SFP-25G-AOC1M	Active Optical Cable 25 Gigabit Ethernet 1m assembly
SFP-25G-AOC2M	Active Optical Cable 25 Gigabit Ethernet 2m assembly
SFP-25G-AOC3M	Active Optical Cable 25 Gigabit Ethernet 3m assembly
SFP-25G-AOC4M	Active Optical Cable 25 Gigabit Ethernet 4m assembly
SFP-25G-AOC5M	Active Optical Cable 25 Gigabit Ethernet 5m assembly
SFP-25G-AOC7M	Active Optical Cable 25 Gigabit Ethernet 7m assembly
SFP-25G-AOC10M	Active Optical Cable 25 Gigabit Ethernet 10 m assembly
SFP-H25G-CU1M	Twinax cable, 25 Gigabit Ethernet 1m passive, 28AWG cable assembly
SFP-H25G-CU1.5M	Twinax cable, 25 Gigabit Ethernet 1.5 m passive, 24AWG cable assembly
SFP-H25G-CU2M	Twinax cable, 25 Gigabit Ethernet 2m passive, 24AWG cable assembly
SFP-H25G-CU2.5M	Twinax cable, 25 Gigabit Ethernet 2.5 m passive, 24AWG cable assembly
SFP-H25G-CU3M	Twinax cable, 25 Gigabit Ethernet 3m passive, 24AWG cable assembly © 2026 Cisco and/or its affiliates. All rights reserved. Page 29 of 41
SFP-H25G-CU4M	Twinax cable, 25 Gigabit Ethernet 4m passive, 24AWG cable assembly
SFP-H25G-CU5M	Twinax cable, 25 Gigabit Ethernet 5m passive, 24AWG cable assembly
SFP-25G-SL	Multimode fiber 25 Gigabit Ethernet 20/30m (OM3/OM4)
SFP-25G-SR-S	Multimode fiber 25 Gigabit Ethernet 70/100m (OM3/OM4)
SFP-10/25G-CSR-S	Multimode fiber 10/25 Gigabit Ethernet 300/400m (OM3/OM4)*
SFP-10/25G-LR-S	Single-mode fiber 10/25 Gigabit Ethernet 10km
SFP-10/25G-LR-I	Single-mode fiber 10/25 Gigabit Ethernet 10km** Depending upon fiber quality. Links up to 15km reach are supported as engineered links as long as channel insertion loss is <9.3dB and RS -FEC is required.
Unit dimensions	Model Unit dimensions (W x D x H)
Unit weight	Model Unit weight
供電	100-240V 50-60 Hz, internal, universal: C1300-8FP-2G, C1300-16T-2G, C1300-16P- 2G,C1300-16FP-2G, C1300-24T-4G, C1300-24P-4G, C1300-24FP-4G, C1300-48T-4G, C1300-48P-4G, C1300-48FP-4G, C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-8MGP-2X, C130024MGP-4X, C1300-48MGP-4X, C1300-2
Certifications	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
工作溫度	23° to 122°F (-5° to 50°C) C1300-8T-E-2G, C1300-8P-E-2G, C1300-8FP-2G, C1300-16T-2G, C1300-16P-2G, C1300-16FP-2G, C1300-24T-4G, C1300-24P-4G, C1300-24FP-4G, C1300-48T-4G, C1300-48P-4G, C1300-48FP-4G, C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C130024MGP-4X, C1300-
儲存溫度	-13° to 158°F (-25° to 70°C)
工作濕度	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing © 2026 Cisco and/or its affiliates. All rights reserved. Page 33 of 41
Acoustic noise and mean	Model FAN (number) Acoustic noise MTBF at 25°C
time between failures	(hours) (MTBF)
Warranty	Limited lifetime with return-to-factory replacement Package contents ● Cisco Catalyst 1300 Series Switch or Cisco Catalyst 1300X Series Switch ● Power cord included (power adapter for select 8-port SKUs), unless ‘NO-POWER-CORD’ is selected while ordering ● Mounting kit (Only 24-and 48-port models include the 19-in mounting brackets with the switch) ● Pointer card Minimum requirements ● Web browser
Table 2.	Ordering information Gigabit Ethernet
Table 3.	Accessories
Part number	Description Compatibility
CAB-CONSOLE-RJ45	Console cable 6 feet with RJ-45 All models
CAB-CONSOLE-USB-C	Console cable USB-C type All models
CAB-CONSOLE-USB-C=	Console cable USB-C type All models
PWR-CLP	Power cable restraining clip All models Cisco rack-mounting kit
RCKMNT-1RU-1K=	Rack-mount kit for 1 RU for C1000, C1200, C1300, All 24/48 port models *
RCKMNT-CMPCT-1K=	19-in. rack-mount bracket for C1000, C1200, C1300, All 8/12/16 port models Only 24-and 48-port models include the 19-in mounting brackets with the switch Cisco power adapters
PWRADPT-WM-18-xx	18W power adapter
PWRADPT-WM-18-NA=	18W power adapter XX=NA, TW, JP, EU, UK, AU, AR, BR, CN, IN, KR (country-specific plug) The 10 Gigabit copper and SFP+ ports support 10 Gigabit and 1 Gigabit speeds. Each combo port has one copper Ethernet port and one SFP or SFP+ slot, with one port active at a time. Cisco Catalyst 1300 Series products are available only through distributors and not available to order directly from Cisco. P artne
Table 4.	Cisco environmental sustainability information
Sustainability topic	Reference
General	Information on product-material-content laws and regulations Materials Information on electronic waste laws and regulations, including our WEEE Compliance products, batteries, and packaging Information on product takeback and reuse program Cisco Takeback and Reuse Program
Sustainability Inquiries	Contact: csr_inquiries@cisco.com
材質	Product packaging weight and materials Contact: environment@cisco.com Cisco Capital Flexible payment solutions to help you achieve your objectives Cisco Capital® makes it easier to get the right technology to achieve your objectives, enable business transformation, and stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 co
New or revised topic	Described in Date Added Idle Power information and updated Power Power consumption (Table 1) September 30, 2023 Consumption values
Printed in USA	C78-3659554-09 06/26 © 2026 Cisco and/or its affiliates. All rights reserved. Page 41 of 41
