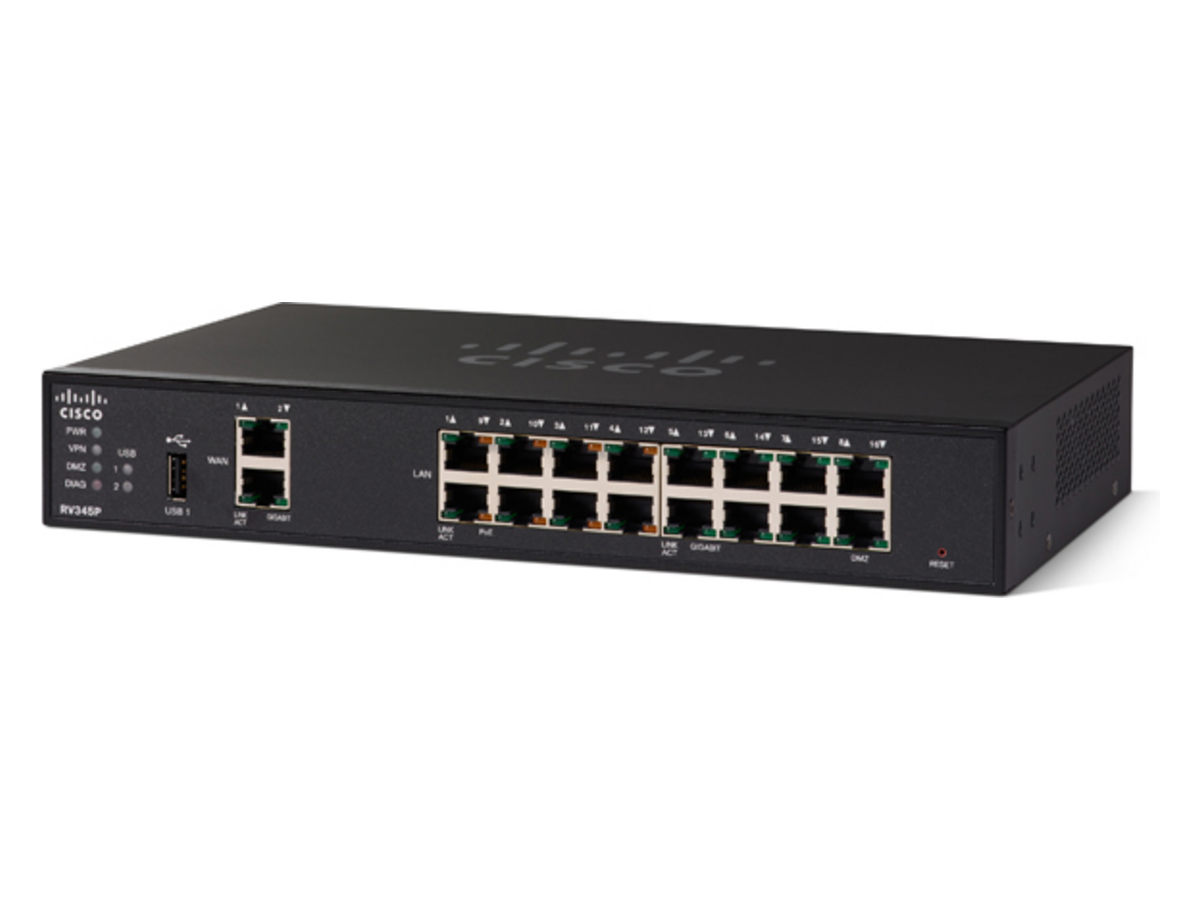

CISCO RV345P 網絡設備安裝・保養

Name: CISCO RV345P Cisco public
Brand: Cisco
SKU: RV345P

產品簡介

Cisco RV345P 為Cisco public，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 RV345P 香港價格連安裝報價。

CPU：ARM-based architecture, dual core, hardware flow engine 1.2
RAM：1 GB DDR3
Flash：256 MB
Standards：IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (s
Antennas：4 external fixed paddle antennas (RV340W) 802.1X supplicant

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

CPU	ARM-based architecture, dual core, hardware flow engine 1.2 Ghz (RV340W) 900 Mhz (RV345, RV345P, RV340)
RAM	1 GB DDR3
Flash	256 MB
Standards	IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS)
Antennas	4 external fixed paddle antennas (RV340W) 802.1X supplicant Yes
SSID-to-VLAN mapping	Yes
Auto channel selection	Yes
WPA/WPA2	Yes, including enterprise authentication
Access control	Yes, MAC filtering
Rouge access point detection	No
QoS	Wi-Fi Multimedia (WMM) with unscheduled automatic power save Performance
Wireless throughput	PHY data rate: 2.4 GHz: 450 Mbps 964-QAM), 600 Mbps (256-QAM) 5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM) Total: Up to 2.7 Gbps (real-world throughput will vary)
Recommended user support	Up to 50 users at 2.4 GHz and 124 users at 5 GHz simultaneously
Captive Portal for guest access	Yes Wireless parameters
Frequency	Dual concurrent radios (2.4 and 5 GHz)
WLAN	802.11n/ac 4x4 MU-MIMO with 4 partial streams at 5GHz 3x3 MIMO with 3 spatial streams at 2.4 GHz 20 MHz, 40 MHz and 80 MHZ channels for 802.11ac 20 MHz and 40 MHz channels for 802.11n PHY data rate: 2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM) 5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM) Total: up to 2.7 Gbps 802.11 Dynamic Frequency Selection (DFS) MU-MIMO up to 3 clients simultaneously
Data rates supported	802.11 a/b/g: ● 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps ● 802.11n: 6.5 to 450 Mbps ◦ 20-MHz bandwidth: MCS 0-15 for supported data rates ◦ 40-MHz bandwidth: MCS 0-15 for supported data rates 802.11ac: ● 6.5 Mbps to 1.7 Gbps ◦ 20-MHz bandwidth: MCS 0-9 for supported data rates ◦ 40-MHz bandwidth: MCS 0-9 for supported data rates ◦ 80-MHz bandwidth: MCS 0-9 for supported data rates
Frequency band and operating	A (A regulatory domain): channels 2412 to ~2462 MHz: 11 channels 5.15 to 5.25 GHz: 4 channels 5.25 to 5.35 GHz: 4 channels 5.47 to 5.725 GHz: 8 channels 5.725 to 5.825 GHz: 5 channels E (E regulatory domain): 2412 to ~2472 MHz: 13 channels 5.15 to 5.25 GHz: 4 channels 5.25 to 5.35 GHz: 4 channels 5.47 to 5.725 GHz: 8 channels C (C regulatory domain): 2412 to ~2462 MHz: 13 channels 5.15 to 5.25 GHz
Transmitter output power	2.4 GHz ● 802.11b: 17.5 +/- 2 dBm ● 802.11g: 17.5 +/- 2 dBm @ 6 Mbps ● 802.11g: 15.5 +/- 2 dBm @ 54 Mbps ● 802.11n (HT20): 17.5 +/- 2 dBm @ MCS0 ● 802.11n (HT20): 15.5 +/- 2 dBm @ MCS7 ● 802.11n (HT40): 15.5 +/- 2 dBm @ MCS7 5 GHz ● 802.11a: 18.5 +/- 2 dBm @ 6 Mbps ● 802.11a: 14 +/- 2 dBm @ 54 Mbps ● 802.11n (HT20): 14 +/- 2 dBm @ MCS7 ● 802.11n (HT40): 14 +/- 2 dBm @ MCS7 ● 802.11ac (VHT80): 12.0
Wireless isolation	Wireless isolation between clients
Antenna gain in dBi	2.4 GHz: 3 dBi each antenna 5 GHz: 5 dBi each antenna
Receiver sensitivity	2.4 GHz ● 802.11b: -82 dBm @ 11 Mbps ● 802.11g: -71 dBm @ 54 Mbps ● 802.11n (HT20): -69 dBm @ MCS7 ● 802.11n (HT40): -67 dBm @ MCS7 5 GHz ● 802.11ac (VHT20): -59 dBm @ MCS8 ● 802.11ac (VHT40): -54 dBm @ MCS9 ● 802.11ac (VHT80): -51 dBm @ MCS9 Wireless Distribution System (WDS) No Product Dimensions
RV340, RV345, RV345P, RV340W	280 x 44 x 170 mm (11 x 1.75 x 6.75 in) excluding antennas
RV340W with antennas	280 x 44 x 315 mm (11 x 1.75 x 12.40 in)
Package dimensions	RV340W: 375 x 505 x 80 mm (14.76 x 19.88 x 3.15 in) RV340: 448 x 293 x 80 mm (17.64 x 11.54 x 3.15 in) RV345: 448 x 293 x 80 mm (17.64 x 11.54 x 3.15 in) RV345P: 550 x 300 x 95 mm (21.65 x 11.81 x 3.74)
Product weight device only	RV340W: 1150 g (2.53 lb) RV340: 960 g (2.1 lb) RV345: 1140 g (2.5 lb) RV345P: 1180 g (2.6 lb)
Packaging weight	RV340W: 2400 g (5.29 lb) RV340: 2210 g (4.9 lb) RV345: 2390 g (5.3 lb) RV345P: 3200 g (7.1 lb)
MTBF	50000 hours
Rack mountable RV340, RV345,	Yes RV345P
Rack mountable RV340W	No
Included accessories	RV340, RV345, RV345P Power supply, power cord, Ethernet cable, rack mount kit RV340W Power supply, power cord, Ethernet cable
Fan	No
供電	RV340W: AC 100-240V/1A DC 12V/3A RV340, RV345: AC 100-240V/1A DC 12V/2.5A DC RV345P: AC 100-240V/2A DC 54V/2.78A
Certification	RV340, RV340W: FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel RV345, RV345P: FCC Class A CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
工作溫度	0° to 40°C (32° to 104°F)
儲存溫度	0° to 70°C (32° to 158°F)
工作濕度	10% to 85% noncondensing
Storage humidity	5% to 90% noncondensing
Model/Product ID	Description
Interfaces	RV340 2 WAN, 4 LAN, 3G/4G USB support
RV345	2 WAN, 16 LAN, 3G/4G USB support
RV345P	2 WAN, 8 LAN + 8 PoE LAN, 3G/4G USB support
RV340W	2 WAN, 4 LAN, WiFi5, 3G/4G USB support
Security license	LS-RV34X-SEC-1YR= RV Security: 1 year: Dynamic Web security, Application Visibility, Client Identification, Gateway Antivirus, and Intrusion Prevention System IPS.
Regional SKU	RV340W-A-K9-NA US, Canada, Mexico, Peru RV340-K9-NA RV345-K9-NA RV345P-K9-NA
RV345-K9-G5	South Africa RV345P-K9-G5
Printed in USA	C78-742350-01 11/20
