| System | Operating Humidity 5%–90% (RH), non-condensing |
|---|
| Main Processor | Embedded Processor Operating environment Indoor; Outdoor Basic |
|---|
| Product Type | Swing turnstile Ordering Information |
|---|
| Motor | Brushless DC motor Type Model Description Single left turnstile,with none face |
|---|
| Status Indicator Light | Yes |
|---|
| Swing Barrier | DHI-ASGB110K-L recognition terminal installation hole |
|---|
| Voice Prompt | Yes Single right turnstile,with none |
|---|
| Casing Material | SUS 304 Swing Barrier DHI-ASGB110K-R face recognition terminal installation hole Performance Single middle turnstile,with |
|---|
| MCBF | 3 million Swing Barrier DHI-ASGB120K-D none face recognition terminal installation hole |
|---|
| Passage Width | 600 mm (23.62") |
|---|
| Max Custom Passage Width | 900 mm (35.43") Dimensions |
|---|
| Input Port | 1× Wiegand input port, 1 × RS-485 input port |
|---|
| Passing Speed | 20–70 people/min 600.0 [23.62] 600.0 [23.62] mm[inch] |
|---|
| Unlock/Lock Speed | 0.8 s 980.0 [38.58] |
|---|
| Pairs of IR Detectors | 4 |
|---|
| Cabinet Thickness | 1.0 mm (0.04") 422.0 [16.61] |
|---|
| Top Cover Thickness | 1.2 mm (0.05") 1200.0 [47.24] 285.0 [11.22] 140.0 [5.51] |
|---|
| Barrier Material | Acrylic |
|---|
| Barrier Thickness | 8.0 mm (0.31") Port |
|---|
| Network Port | 1 × 10 Mbps/100 Mbps self-adaptive Ethernet port |
|---|
| 用戶容量 | 100000 Application |
|---|
| Record Capacity | 100000 |
|---|
| 供電 | 100-240 VAC, 3 A, 50 Hz/60 Hz Glass plate: IK04 Vandal-proof Rating Stainless steel cabinet: IK07 |
|---|
| 防護等級 | IPX4 |
|---|
| 功耗 | Single turnstile: ≤15 W (standby), ≤80 W (working) 1,200 mm × 140 mm × 980 mm (47.24" × 5.51" × Product Dimensions 38.58") (L × W × H) 1299 mm × 332 mm × 1,173 mm (51.14" × 13.07" × Packaging Dimensions 42.24") (L × W × H) |
|---|

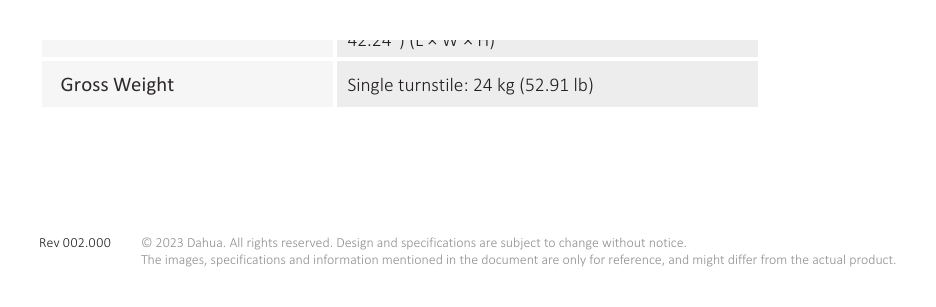

| 毛重 | Single turnstile: 24 kg (52.91 lb) |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
