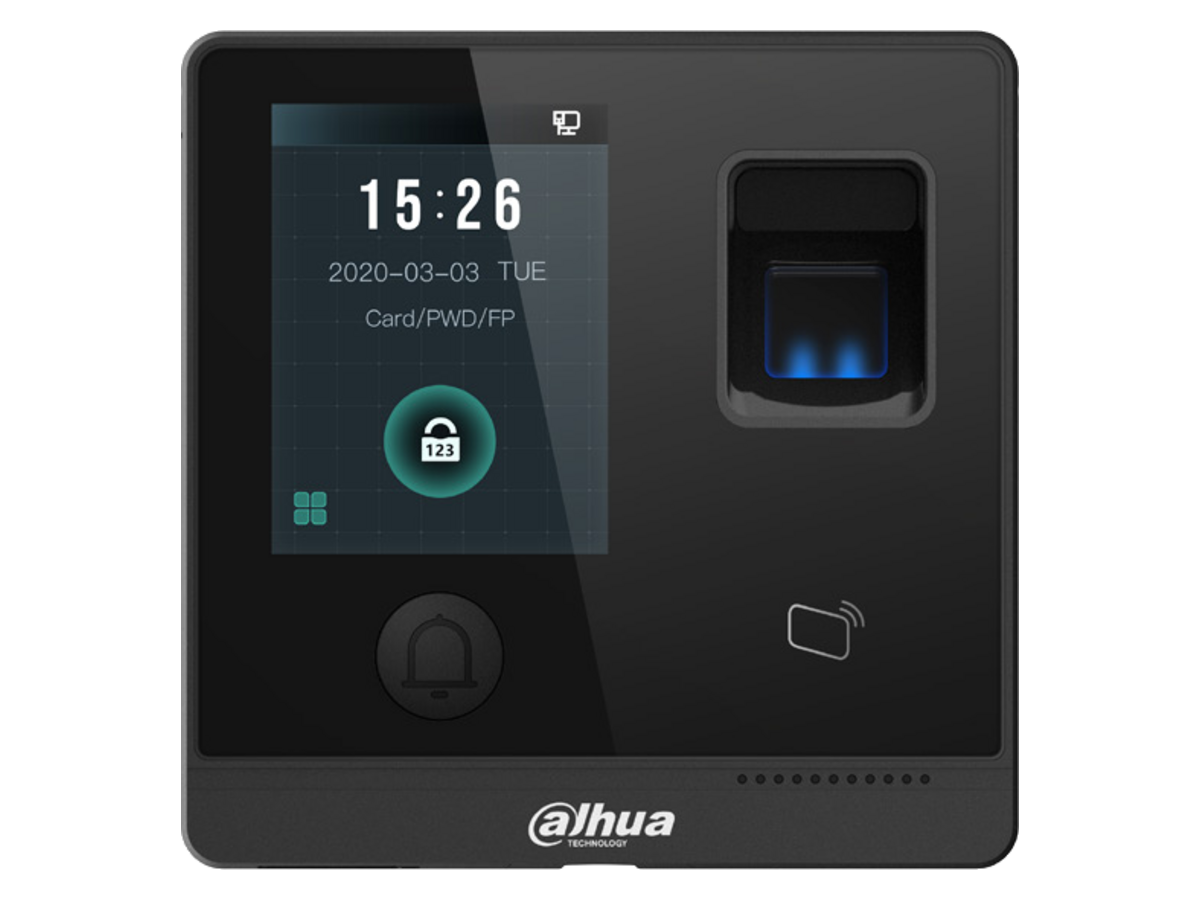

| Models | ASI1212F ASI1212F-D Blacklist/Whitelist Yes |
|---|
| System | Ads Broadcast Support graphic advertisement play |
|---|
| Main Processor | Embedded processor Peripheral Card Reader 1 RS-485, 1 Wiegand |
|---|
| 網絡協議 | IPv4, TCP, P2P Group Combination Card/remote/password/fingerprint |
|---|
| Button Type | Touch button Web Configuration on PC Yes |
|---|
| OSDP Protocol | Yes (only supported as a host) Web Configuration on Mobile Yes |
|---|
| Basic | Performance |
|---|
| Display | 2.8 inch TFT touch screen Card Reading Distance 1 cm–3 cm (0.03 ft–0.10 ft) |
|---|
| Screen Type | Capacitive screen Fingerprint Sensor Type Optical fingerprint |
|---|
| 解像度 | 240(H)×320(V) Fingerprint Verification Mode 1:N, 1:1 |
|---|
| Voice Prompt | Yes Fingerprint Comparison Time 1.5 s |
|---|
| Buzzer | Yes Capacity |
|---|
| Housing Material | PC+ABS User 30,000 |
|---|
| Function | Fingerprint 3,000 |
|---|
| Unlock Mode | Card/remote/password/fingerprint Card 30,000 |
|---|
| 卡類型 | IC card ID card Password 30,000 |
|---|
| Period List | 128 Record 150,000 |
|---|
| Holiday Period | 128 Port |
|---|
| Network Update | Yes RS-485 1 |
|---|
| First Card Unlock | Yes Wiegand 1 (input or output) www.dahuasecurity.com |
|---|
| USB | 1 USB2.0 port Dimensions (mm[inch]) |
|---|
| Network | One 10/100 Mbps self-adaptive network port |
|---|
| 警報輸入 | 1 |
|---|
| 警報輸出 | 1 |
|---|
| Alarm Linkage | Yes |
|---|
| Unlock Button | 1 |
|---|
| Door Status Detection | 1 |
|---|
| 鎖控 | 1 Alarm |
|---|
| Anti-passback | Yes Application |
|---|
| 防拆 | Yes |
|---|
| Duress | Yes |
|---|
| Door Sensor Timeout | Yes |
|---|
| Intrusion | Yes Illegal Card Exceeding Yes Threshold |
|---|
| Duress Fingerprint | Yes |
|---|
| 供電 | DC 12V 1A |
|---|
| 功耗 | ≤ 4.0W (standby), ≤ 6.0W (working) 114.5 mm × 114.5 mm × 32.5 mm Dimensions (H×W×D) (4.51”× 4.51”× 1.28”) Packing box: 187 mm ×164 mm ×72 mm (7.36"× 6.46"× 2.83") Packing Dimensions (H×W×D) Protective box: 585 mm×390 mm×360 mm (23.03"× 15.35"× 14.17") |
|---|
| 工作溫度 | -10°C to +45°C (14°F to 113°F) |
|---|
| 工作濕度 | 5%RH-90%RH (no condensation) |
|---|
| Operating Environment | Indoor |
|---|
| 毛重 | 415.0 g (0.91 lb) |
|---|
| 安裝 | Surface mount, flush mount, 86 case mount |
|---|

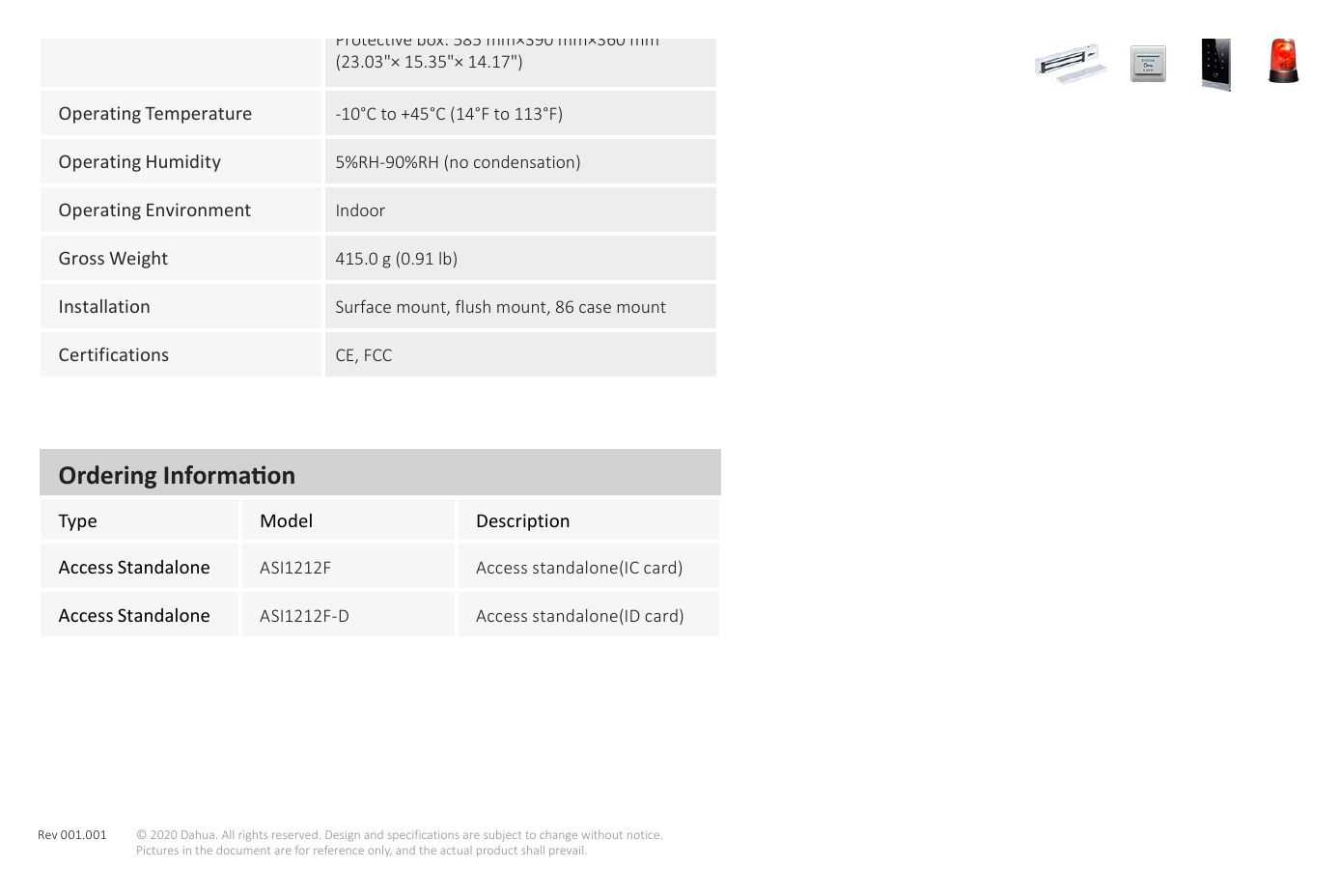

| Certifications | CE, FCC Ordering Information |
|---|
| 類型 | Model Description |
|---|
| Access Standalone | ASI1212F Access standalone(IC card) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
