| System | Network Update Yes |
|---|
| Main Processor | Embedded Processor First User Unlock Yes |
|---|
| Button Type | Mechanical Remote Verification Yes |
|---|
| 網絡協議 | UDP; TCP; IPv4; P2P Restricted List/Trusted List Yes |
|---|
| Yes | 1 × RS-485 card reader |
|---|
| OSDP Protocol | Peripheral Card Reader 1 × Wiegand card reader |
|---|
| Interoperability | ONVIF; CGI |
|---|
| Multi-user Authentication | Yes |
|---|
| SDK and API | Yes |
|---|
| Multi-factor Authentication | Yes |
|---|
| Basic | Web Configuration Yes |
|---|
| Product Type | Standalone |
|---|
| Auto Registration | Yes |
|---|
| Display Screen | 2.4" LCD Performance |
|---|
| Screen Type | LCD |
|---|
| Card Reading Distance | 0 cm–6 cm (0"–2.36") |
|---|
| Screen Resolution | 240 (H) × 320 (V) |
|---|
| Fingerprint Sensor Type | Optical |
|---|
| Voice Prompt | Yes |
|---|
| Fingerprint Verification | 1:N |
|---|
| Backlight | Yes Mode |
|---|
| Fingerprint Comparison | 1s |
|---|
| Casing Material | PC+ABS Time |
|---|
| Function | User Configuration of card, remote, password, fingerprint Normal user; VIP users; patrol users; guest user; |
|---|
| Verification Method | combination unlock and multi-user combination unlock User (Card) Type blocklist user; other user Card, remote, password, fingerprint unlock, |
|---|
| Unlock Mode | unlock through their combinations and multi-user Capacity combination unlock. |
|---|
| 用戶容量 | 5000 |
|---|
| 卡類型 | ID cards |
|---|
| Fingerprint Capacity | 3000 |
|---|
| Period List | 128 periods |
|---|
| 卡容量 | 5000 |
|---|
| Holiday Period | 128 periods |
|---|
| Password Capacity | 5000 www.dahuasecurity.com |
|---|
| Record Capacity | 100,000 Installation Port |
|---|
| RS-485 | 1 |
|---|
| Wiegand | 1 |
|---|
| USB | 1 × USB 2.0 |
|---|
| Network Port | 1 × RJ-45 100 Mbps self-adaptive Ethernet port |
|---|
| 警報輸入 | 2 |
|---|
| 警報輸出 | 2 |
|---|
| Alarm Linkage | Yes |
|---|
| Doorbell | 1 |
|---|
| 出門按鈕 | 1 |
|---|
| Door Status Detection | 1 |
|---|
| 鎖控 | 1 Dimensions (mm[inch]) Alarm |
|---|
| Anti-pass Back | Yes mm[inch] |
|---|
| Tamper Alarm | Yes 86.0 [3.39] 30.0 [1.18] |
|---|
| Duress Alarm | Yes |
|---|
| Door Sensor Timeout | Yes 170.0 [6.69] 60.0 [2.36] 205.0 [8.07] |
|---|
| Intrusion | Yes |
|---|
| Illegal Card Exceeding | Yes Threshold |
|---|
| Duress Fingerprint | Yes 70.0 [2.76] |
|---|
| Power Adapter | Optional 12 VDC |
|---|
| 供電 | (the device can provide power to the lock) |
|---|
| 功耗 | ≤12 W 205 mm × 86 mm × 30 mm (8.07" × 3.38" × 1.18") (H |
|---|
| Product Dimensions | × W × W) 254 mm × 131 mm × 75 mm (10.00" × 5.16" × 2.95") (H |
|---|
| Packaging Dimensions | × W × W) |
|---|

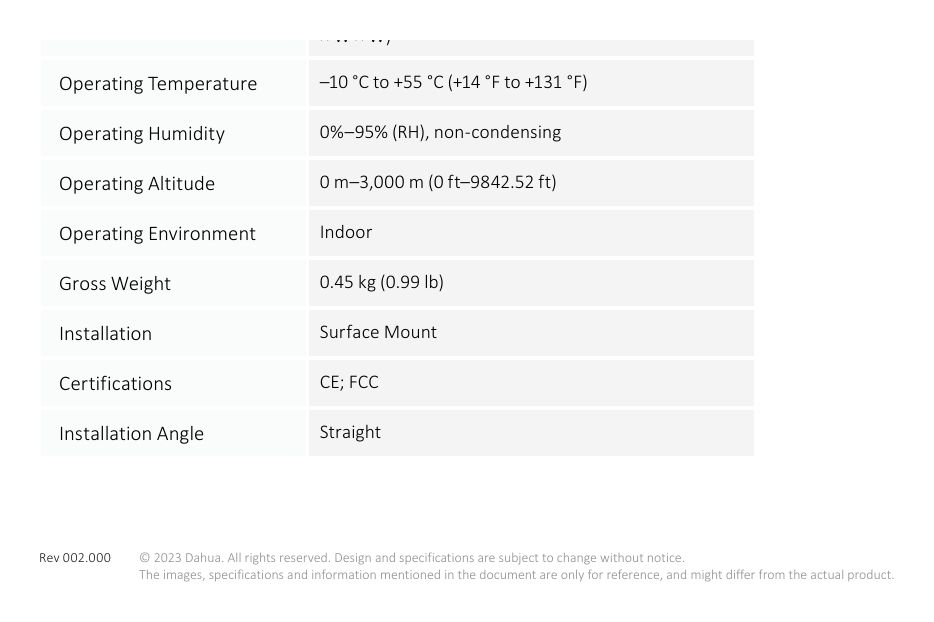

| 工作溫度 | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 0%–95% (RH), non-condensing |
|---|
| Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
|---|
| Operating Environment | Indoor |
|---|
| 毛重 | 0.45 kg (0.99 lb) |
|---|
| 安裝 | Surface Mount |
|---|
| Certifications | CE; FCC |
|---|
| Installation Angle | Straight |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
