| System | · Supports PoE to provide power to the access controller, and the access |
|---|
| Main Processor | Embedded Processor controller provides power to both a card reader (12 V 200 mA at most) |
|---|
| Button Type | Mechanical and an electromagnetic lock (12 V, 500 mA at most). |
|---|
| 網絡協議 | UDP; TCP; IPv4; P2P Network Update Yes |
|---|
| OSDP Protocol | Yes First User Unlock Yes |
|---|
| Interoperability | ONVIF; CGI Remote Verification Yes |
|---|
| SDK and API | Yes Restricted List/Trusted List Yes |
|---|
| Basic | Wi-Fi Yes |
|---|
| Product Type | Standalone 1 × RS-485 card reader |
|---|
| Peripheral Card Reader | 1 × Wiegand card reader |
|---|
| Display Screen | 2.4" LCD |
|---|
| Multi-user Authentication | Yes |
|---|
| Screen Type | LCD |
|---|
| Multi-factor Authentication | Yes |
|---|
| Screen Resolution | 240 (H) × 320 (V) |
|---|
| Web Configuration | Yes |
|---|
| Voice Prompt | Yes |
|---|
| Auto Registration | Yes |
|---|
| Backlight | Yes Performance |
|---|
| Casing Material | PC+ABS |
|---|
| Card Reading Distance | 0 cm–6 cm (0"–2.36") Configuration of card, remote, password, fingerprint Fingerprint Sensor Type Optical |
|---|
| Verification Method | combination unlock and multi-user combination unlock |
|---|
| Fingerprint Verification | 1:N Card, remote, password, fingerprint unlock, Mode |
|---|
| Unlock Mode | unlock through their combinations and multi-user |
|---|
| combination unlock. | Fingerprint Comparison 1s Time |
|---|
| 卡類型 | ID card User |
|---|
| Period List | 128 periods Normal user; VIP users; patrol users; guest user; |
|---|
| User (Card) Type | blocklist user; other user |
|---|
| Holiday Period | 128 periods www.dahuasecurity.com |
|---|
| 容量 | Gross Weight 0.45 kg (0.99 lb) |
|---|
| 用戶容量 | 30,000 Installation Surface Mount |
|---|
| Fingerprint Capacity | 5,000 Certifications CE; FCC |
|---|
| 卡容量 | 30,000 Installation Angle Straight |
|---|
| Password Capacity | 30,000 |
|---|
| Record Capacity | 100,000 Installation Port |
|---|
| RS-485 | 1 |
|---|
| Wiegand | 2 |
|---|
| USB | 1 × USB 2.0 |
|---|
| Network Port | 1 × RJ-45 100 Mbps self-adaptive Ethernet port |
|---|
| 警報輸入 | 2 |
|---|
| 警報輸出 | 2 |
|---|
| Alarm Linkage | Yes |
|---|
| Doorbell | 1 |
|---|
| 出門按鈕 | 1 |
|---|
| Door Status Detection | 1 |
|---|
| 鎖控 | 1 Dimensions (mm[inch]) Alarm |
|---|
| Anti-pass Back | Yes mm[inch] |
|---|
| Tamper Alarm | Yes 86.0 [3.39] 30.0 [1.18] |
|---|
| Duress Alarm | Yes |
|---|
| Door Sensor Timeout | Yes 170.0 [6.69] 60.0 [2.36] 205.0 [8.07] |
|---|
| Intrusion | Yes |
|---|
| Illegal Card Exceeding | Yes Threshold |
|---|
| Duress Fingerprint | Yes 70.0 [2.76] |
|---|
| Power Adapter | Optional Standard PoE |
|---|
| 供電 | 12 VDC (the device can provide power to the lock) |
|---|
| 功耗 | ≤12 W 205 mm × 86 mm × 30 mm (8.07" × 3.38" × 1.18") (H |
|---|
| Product Dimensions | × W × W) 254 mm × 131 mm × 75 mm (10.00" × 5.16" × 2.95") (H |
|---|
| Packaging Dimensions | × W × W) |
|---|

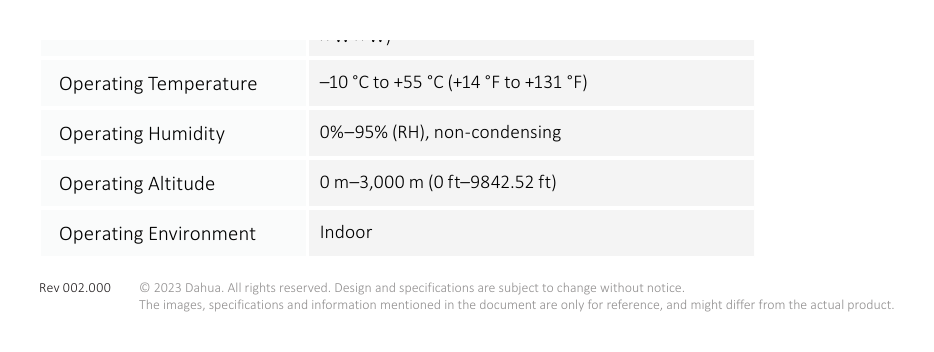

| 工作溫度 | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 0%–95% (RH), non-condensing |
|---|
| Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
|---|
| Operating Environment | Indoor |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
