| System | Network Update Yes |
|---|
| Main Processor | Embedded Processor First User Unlock Yes |
|---|
| 網絡協議 | IPv4; RTSP; RTP; TCP; UDP; SIP; P2P Remote Verification Yes |
|---|
| OSDP Protocol | Yes Restricted List/Trusted List Yes |
|---|
| Interoperability | ONVIF; CGI Wi-Fi Yes |
|---|
| SDK and API | Yes Wireless Standard IEEE802.11b/802.11g/802.11n |
|---|
| Basic | Wireless Frequency Range 2.4 GHz |
|---|

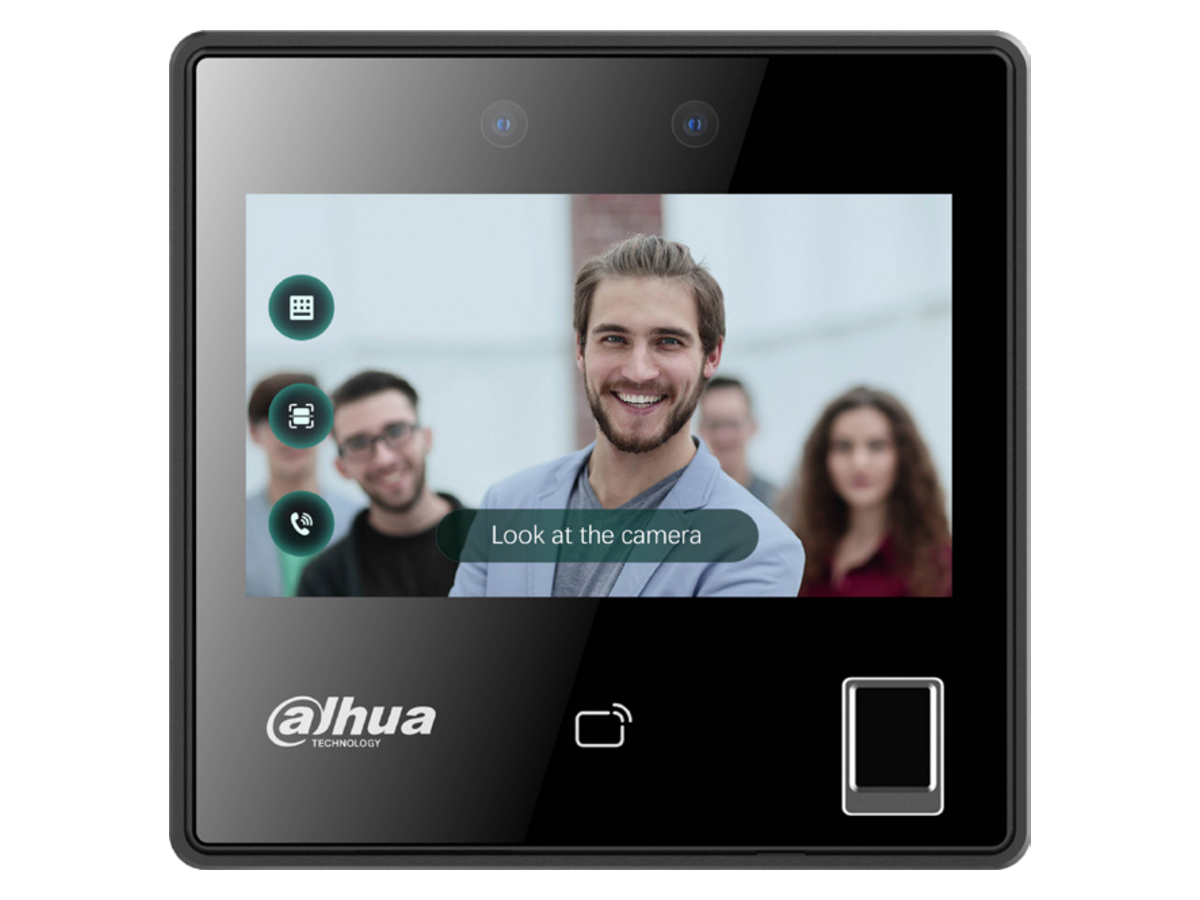

| Product Type | Standalone Peripheral Card Reader 1 × RS–485 card reader; 1 × Wiegand card reader |
|---|
| Display Screen | 4.3" LCD Multi-user Authentication Yes |
|---|
| Screen Type | Capacitive Touchscreen Real-time Monitoring Yes |
|---|
| Screen Resolution | 480 (H) × 272 (V) Web Configuration Yes |
|---|
| Camera | 2-MP CMOS HD dual-lens camera Auto Registration Yes |
|---|
| WDR | DWDR RFID |
|---|
| Light Compensation | Auto IR Modulation Type ASK |
|---|
| Voice Prompt | Yes Frequency Range 13.56 MHz |
|---|
| Casing | PC + ABS Max. Transmission Power 42dBuA/m @10m |
|---|
| Function | Network Password, fingerprint, card, remote, face and Max. Transmission Power ≤20dBm@2400-2483.5 MHz |
|---|
| Unlock Mode | combination unlock IC card; Desfire card (EV3,Compatible with Dahua card Performance |
|---|
| 卡類型 | by default) |
|---|
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
|---|
| Period List | 128 periods www.dahuasecurity.com |
|---|
| Face Recognition Height | 1.1 m– 2.0 m (3.61 ft–6.56 ft) Power Supply 12 VDC, 1.5 A Range |
|---|
| 功耗 | ≤18 W |
|---|
| 識別距離 | 0.3 m–1.5 m (0.98 ft–4.92 ft) 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × |
|---|
| Face Recognition Accuracy | 99.9% Product Dimensions 1.07") (H × W × D) 190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L |
|---|
| Face Recognition Time | 0.2 s Packaging Dimensions × W × H, protection box) |
|---|
| Fingerprint Verification | 1:N Operating Temperature –10 °C to +40 °C (+14 °F to +104 °F) Mode |
|---|
| 工作濕度 | 0%–90% (RH), non-condensing |
|---|
| Fingerprint Comparison | 1.5 s Time |
|---|
| Operating Environment | Indoor |
|---|
| Fingerprint Recognition | 0.5 s |
|---|
| Time | Net Weight 250 g (0.55 lb) |
|---|
| Read Speed (QR Code ) | 500 ms 400 g (0.88 lb) Gross Weight |
|---|
| Code Type | Paper; Electronic Wall mount bracket (included) |
|---|
| User | Installation Wall mount; 86 case mount; desk mount Normal user; VIP users; patrol users; guest user; |
|---|
| User (Card) Type | blocklist user; other user |
|---|
| 用戶容量 | 3,000 Dimensions (mm[inch]) |
|---|
| Face Image Capacity | 3,000 |
|---|
| 卡容量 | 5,000 |
|---|
| Fingerprint Capacity | 5,000 |
|---|
| Password Capacity | 3,000 |
|---|
| Record Capacity | 300,000 Port |
|---|
| RS-485 | 1 |
|---|
| Wiegand | 1 |
|---|
| USB | 1 × USB 2.0 |
|---|
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
|---|
| 出門按鈕 | 1 |
|---|
| 鎖控 | 1 |
|---|
| Door Status Detection | 1 Alarm |
|---|
| Anti-pass Back | Yes |
|---|
| Tamper Alarm | Yes |
|---|
| Duress Alarm | Yes |
|---|
| Door Sensor Timeout | Yes |
|---|
| Intrusion | Yes |
|---|
| Illegal Card Exceeding | Yes Threshold |
|---|
| Duress Fingerprint | Yes |
|---|
| Power Adapter | Standard www.dahuasecurity.com Application |
|---|
| Rev 002.000 | © 2025 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
