Dahua ASI6214J-MFW-V1 為DHI-ASI6214J-MFW-V1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 ASI6214J-MFW-V1 香港價格連安裝報價。
| System | · Supports visitor QR code and doorbell. |
|---|---|
| Main Processor | Embedded Processor · Supports video intercom and app control. |
| 網絡協議 | UDP;TCP;IPv6;IPv4;RTSP;SIP;P2P;RTP · TCP/IP and Wi-Fi connection. · IP65 rated. |
| OSDP Protocol | Yes |
| Interoperability | CGI;ONVIF |
| Holiday Period | 128 |
| SDK and API | Yes |
| Network Update | Yes Basic |
| First User Unlock | Yes |
| Product Type | Standalone |
| Remote Verification | Yes |
| Display Screen | 4.3-inch LCD |
| Restricted List/Trusted List | Yes |
| Screen Type | Capacitive Touchscreen |
| WiFi | Yes |
| Screen Resolution | 272 (H) × 480 (V) |
| 無線標準 | IEEE802.11b, 802.11g and 802.11n. |
| Camera | 2MP CMOS high definition camera |
| Wireless Frequency Range | 2.4 GHz |
| WDR | DWDR |
| Peripheral Card Reader | 1 × RS-485 card reader, and 1 × Wiegand card reader |
| Light Compensation | Auto white light;Auto IR |
| Multi-user Authentication | Yes |
| Voice Prompt | Yes |
| Real-time Monitoring | Yes |
| Speaker | Yes |
| Multi-factor Authentication | Yes |
| Casing Material | PC and ABS metal back case |
| Capture Function | Yes |
| Web Configuration | Yes Unlock through card, password, face, fingerprint, QR |
| Unlock Mode | code and remote unlock. You can also combine them to Yes Auto Registration create your own personal unlock methods. |
| 卡類型 | IC card Performance |
| IC Card Encryption | Yes |
| Period List | 128 |
| Card Reading Distance | 0 cm–2 cm (0"–0.79") www.dahuasecurity.com |
| Face Recognition Height | 0.9 m–2.4 m (2.95 ft–7.87 ft) Range |
| Power Adapter | Standard |
| 識別距離 | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| 供電 | 12 VDC, 1.5A |
| Face Recognition Accuracy | 99.9% |
| 防護等級 | IP65 |
| Face Recognition Time | 0.2 s |
| 功耗 | ≤18 W |
| Fingerprint Sensor Type | Capacitive 174.0 mm × 87.5 mm × 22.5 mm (6.85" × 3.44" × 0.89") |
| Product Dimensions | (W × H × D) |
| Fingerprint Verification | 1:N Mode 219.0 mm × 122.0 mm × 111.0 mm (6.85" × 3.44" × |
| Packaging Dimensions | 0.89") (W × H × D) |
| Fingerprint Comparison | 1.5 s Time |
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
| Fingerprint Recognition | 0.5 s |
| Time | Operating Humidity 5%–95% (RH), non-condensing |
| Code Type | Printed code, and electronic code |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| User | Gross Weight 0.80 kg (1.76 lb) Normal, VIP, patrol, guest, blocklist, customized user 1, |
| User (Card) Type | customized user 2 and more. Accessory Bracket (included) |
| 容量 | Installation Wall |
| 用戶容量 | 20000 |
| Face Image Capacity | 20000 Ordering Information |
| Fingerprint Capacity | 10000 Type Model Description |
| 卡容量 | 50000 Face |
| Recognition | DHI-ASI6214J- Dahua Single Door Face Recognition Access |
| Password Capacity | 20000 Access MFW-V1 Controller Controller |
| Record Capacity | 300000 Port Dimensions (mm[inch]) |
| RS-485 | 1 |
| Wiegand | 1, input and output port |
| USB | 1 × USB 2.0 port |
| Network Port | 1 × 10 Mbps/100 Mbps Ethernet port |
| 警報輸入 | 1 (On/off signal) |
| Alarm Linkage | Yes |
| 出門按鈕 | 1 |
| Door Status Detection | 1 |
| 鎖控 | 1 Alarm |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding | Yes Threshold |
| Duress Fingerprint | Yes |
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。

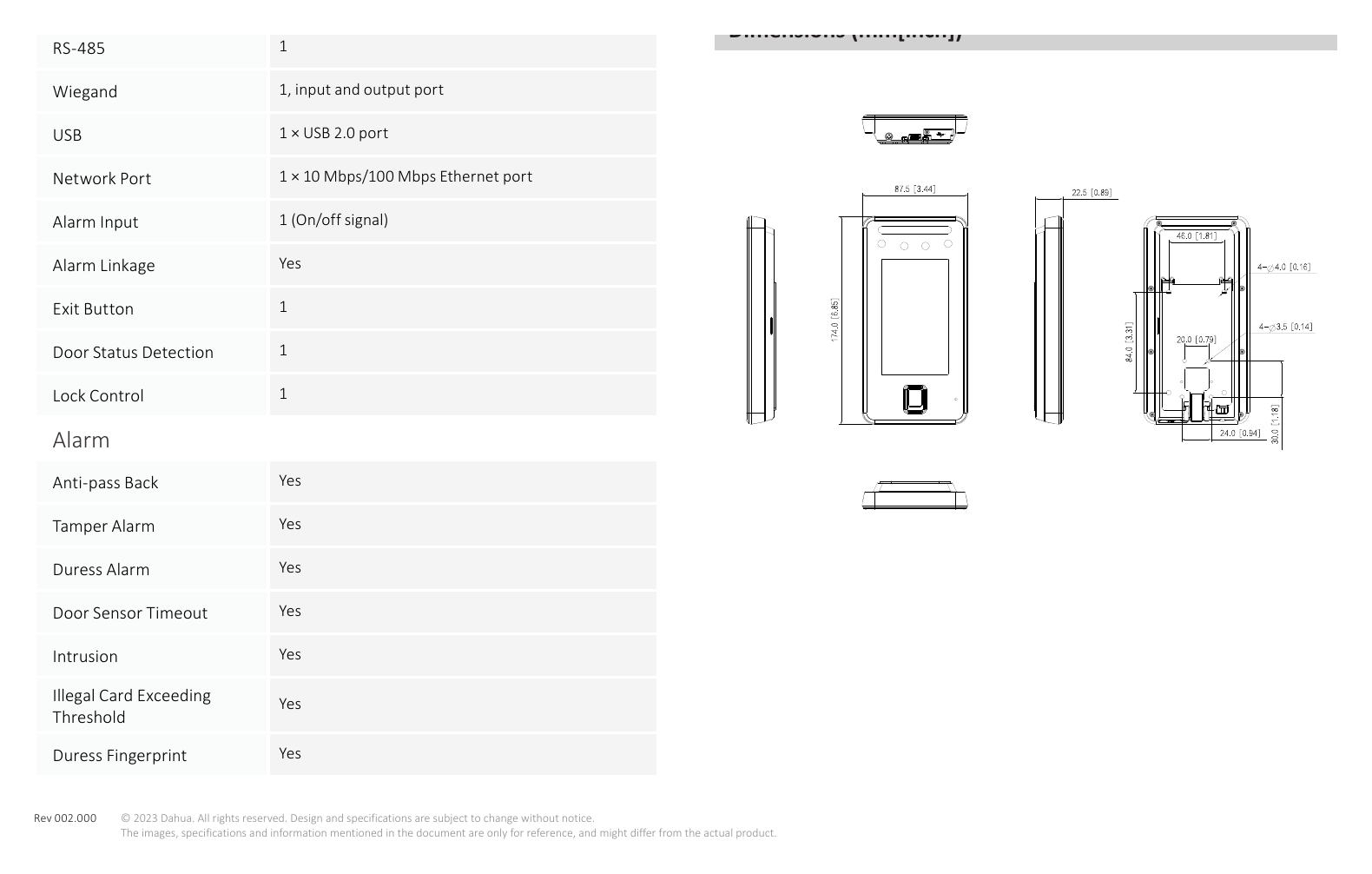

詳見圖示｜Unit: mm
ASI6214J-MFW-V1 Dahua DHI-ASI6214J-MFW-V1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，ASI6214J-MFW-V1 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者主要規格分別：Screen Type方面，ASI6214J-MFW-V1 係 Capacitive Touchscreen，DHI-VTH5441G 係 Capactive screen Alarm Parameter；供電方面，ASI6214J-MFW-V1 係 12 VDC, 1.5A，DHI-VTH5441G 係 Optional；功耗方面，ASI6214J-MFW-V1 係 ≤18 W，DHI-VTH5441G 係 ≤7W (Work)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DHI-VTH5441G 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 ASI6214J-MFW-V1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
ASI6214J-MFW-V1 Dahua DHI-ASI6214J-MFW-V1適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
NGO、社福機構、社企裝門禁系統，員工義工刷卡指紋出入、服務區分區權限、考勤統計，訪客登記管理，門禁系統安裝上門報價。免費上門度尺、按規模報價，屯門、元朗項目即約勘察。
WhatsApp 查詢 →工廠大廈單位裝門禁系統，玻璃門電鎖配刷卡感應、夜間自動上鎖、租戶分層授權，管控貨梯與單位出入。免費上門勘察、明碼實價報價，將軍澳、銅鑼灣一帶即日約期。
WhatsApp 查詢 →凍倉冷庫裝門禁系統，低溫防凍讀卡器、防夾安全門控、進出溫控區記錄，保障食品安全與人員安全。全港覆蓋上門安裝，灣仔、北角各區歡迎致電查詢。
WhatsApp 查詢 →數據中心機房裝門禁系統，多重身份核驗、防尾隨互鎖門、機櫃級權限分級，滿足合規審計要求。免費上門度尺、按規模報價，深水埗、葵涌項目即約勘察。
WhatsApp 查詢 →酒店客房裝門禁系統，房卡感應電子鎖、退房自動失效、樓層電梯權限聯動，提升住客體驗與保安。專業團隊上門評估，旺角、觀塘場地歡迎洽談報價。
WhatsApp 查詢 →學生宿舍裝門禁系統，學生證刷卡進出、宵禁時段管控、訪客登記聯動，保障住宿安全與管理。一站式勘測安裝，中環、尖沙咀各區即日約見報價。
WhatsApp 查詢 →查看更多門禁系統適用場景，請參閱 門禁系統安裝工程。
如需整套門禁系統方案，請參閱 門禁系統安裝工程。
