| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/3" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1280(H)×720(V), 1MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.05Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 30m (98feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 24 |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 供電 | 12V DC ±25% |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) |
|---|
| 功耗 | Max 2.4W (12V DC, IR on) |
|---|
| Max Aperture | F2.0 |
|---|
| Angle of View | H: 72.3° (91.6°/46°) Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 500mm (400mm/1300mm) Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Close Focus Distance 19.69'' (15.75''/51.18'') Ingress Protection & Vandal IP67 & IK10 |
|---|
| DORI Distance | Resistance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Casing Aluminium sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ109.9mm×81.0mm(Φ4.33"×3.19") |
|---|
| Distance | Net Weight 0.31kg (0.68lb) Definition 2.8mm: 35m(114ft) Gross Weight 0.41kg (0.90lb) 25px/m |
|---|
| Detect | 3.6mm: 38m(126ft) (8px/ft) 6mm: 64m(210ft) 2.8mm:14m(46ft) 63px/m |
|---|
| Observe | 3.6mm: 15m(50ft) (19px/ft) 6mm: 26m(84ft) 2.8mm: 7m(23ft) 125px/m |
|---|
| Recognize | 3.6mm: 8m(25ft) (38px/ft) 6mm: 13m(42ft) 2.8mm: 3m(11ft) 250px/m |
|---|
| Identify | 3.6mm: 4m(13ft) (76px/ft) 6mm: 6m(21ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 720P (1280×720) |
|---|
| Frame Rate | 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA136 | PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HDBW1100EP 2.8mm |
|---|
| DH-HAC-HDBW1100EP 3.6mm | 1MP HDCVI IR Dome Camera, PAL |
|---|
| DH-HAC-HDBW1100EP 6mm | Wall Mount 1MP Camera PFB203W DH-HAC-HDBW1100EN 2.8mm |
|---|
| DH-HAC-HDBW1100EN 3.6mm | 1MP HDCVI IR Dome Camera, NTSC DH-HAC-HDBW1100EN 6mm |
|---|
| PFA152-E | PFB203W+PFA200W wall mount) Rain Shade (For use with PFB203W |
|---|
| PFA200W | wall mount or with PFB203W wall mount and PFA152-E pole mount) Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|

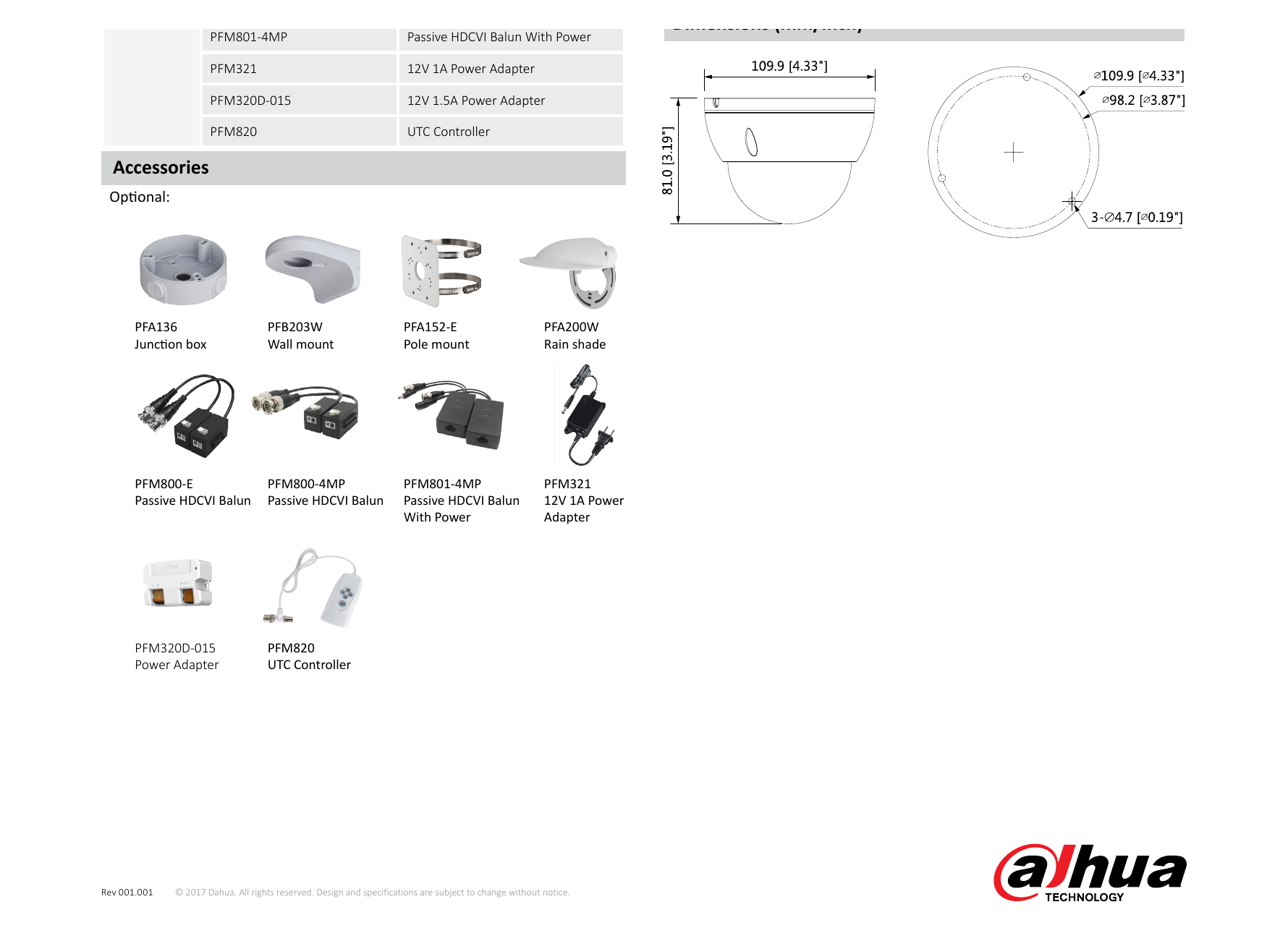

| PFM800-4MP | Passive HDCVI Balun Dimensions (mm/inch) |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount Rain shade |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun 12V 1A Power |
|---|
| With Power | Adapter |
|---|
| Power Adapter | UTC Controller |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
