| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1280(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 12 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm Optional) Power Supply 12V DC ±30% |
|---|
| Max Aperture | F1.6 Power Consumption Max 3.1W (12V DC, IR on) |
|---|
| Angle of View | H: 86.9° (106.0°) Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 1200mm (600mm) |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH 47.2'' (23.6'') Ingress Protection & Vandal IP67 & IK10 |
|---|
| DORI Distance | Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

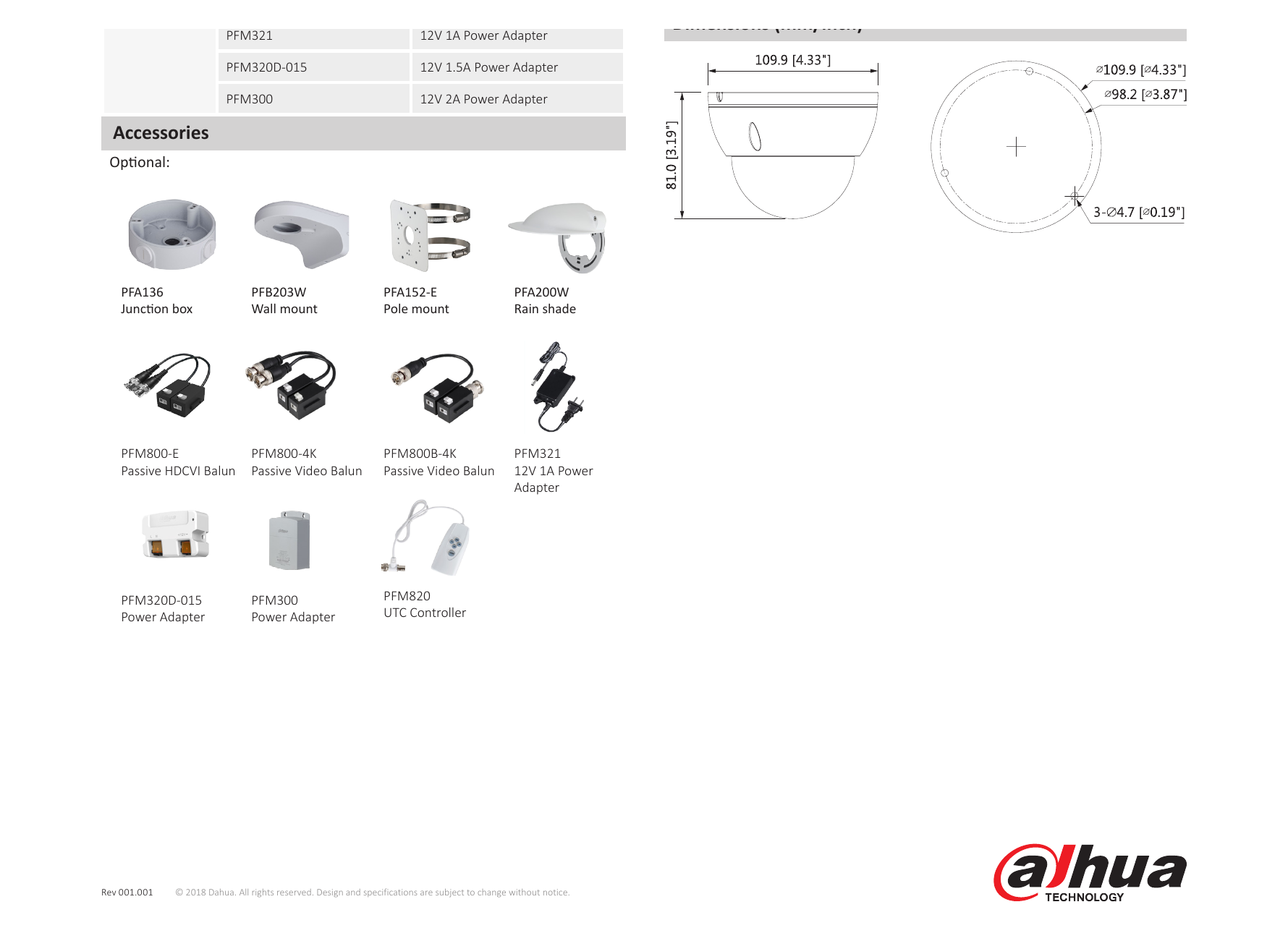

| 尺寸 | Φ109.9mm×81.0mm (Φ4.33"×3.19") |
|---|
| Distance | Net Weight 0.31kg (0.68lb) Definition 25px/m 2.8mm: 39m(127ft) Gross Weight 0.45kg (0.99lb) Detect (8px/ft) 3.6mm: 55m(181ft) 63px/m 2.8mm: 15m(51ft) Observe (19px/ft) 3.6mm: 22m(73ft) 125px/m 2.8mm: 8m(25ft) Recognize (38px/ft) 3.6mm: 11m(36ft) 250ppm 2.8mm: 4m(13ft) Identify (76px/ft) 3.6mm: 6m(18ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA136 | PFB203W + PFA152-E |
|---|

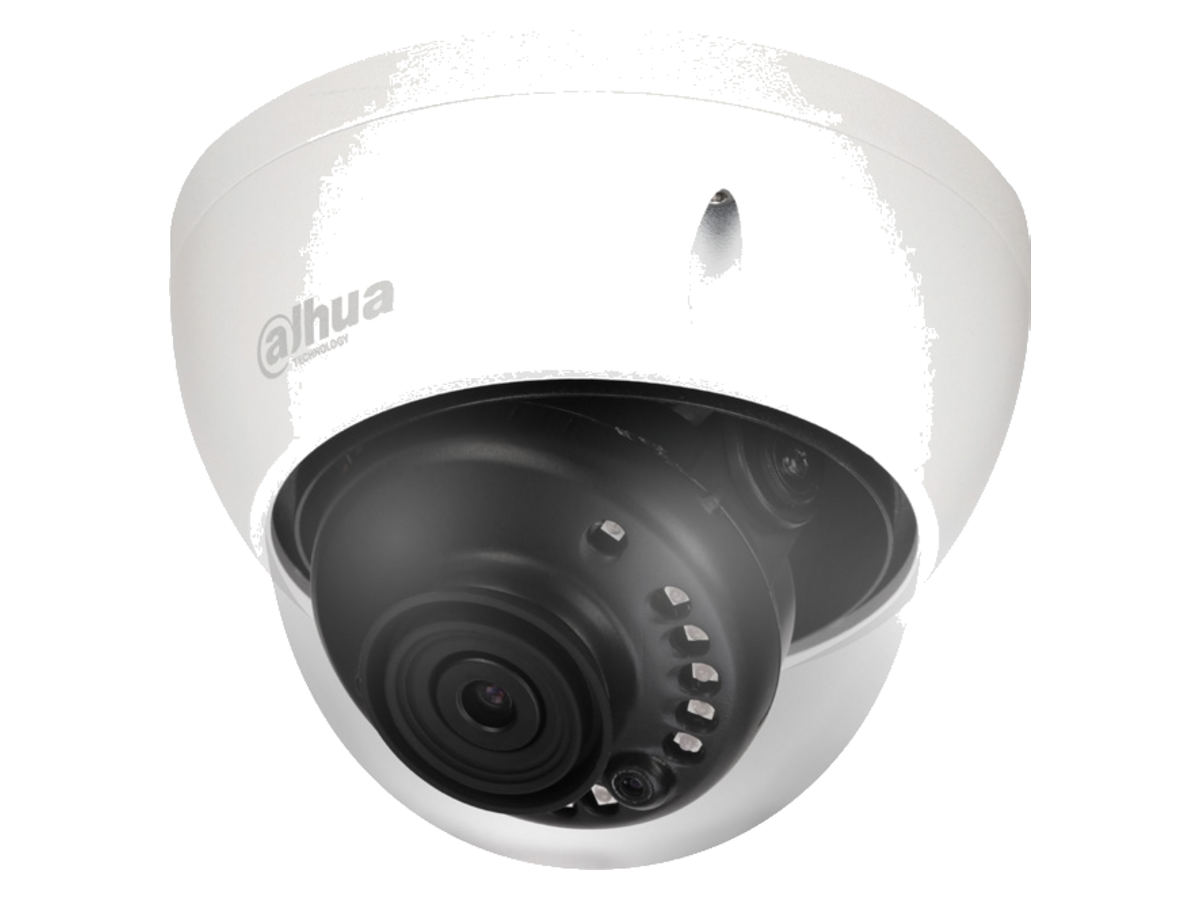

| 類型 | Part Number Description DH-HAC-HDBW1230EP 2.8mm 2MP Starlight HDCVI IR Dome |
|---|
| DH-HAC-HDBW1230EP 3.6mm | Camera, PAL 2MP Camera |
|---|
| DH-HAC-HDBW1230EN 2.8mm | Wall Mount 2MP Starlight HDCVI IR Dome |
|---|
| Camera, NTSC | PFB203W DH-HAC-HDBW1230EN 3.6mm |
|---|
| Pole mount (For use with | PFB203W + PFA152-E+PFA200W PFA152-E PFB203W wall mount) |
|---|
| Rain shade (For use alone or with | Wall Mount with Rain Shade |
|---|
| PFA200W | PFB203W wall mount or/and |
|---|
| FPA152-E pole mount) | PFB203W+PFA200W |
|---|
| Accessories | PFM820 UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun Dimensions (mm/inch) |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount Rain shade |
|---|
| Passive HDCVI Balun | Passive Video Balun Passive Video Balun 12V 1A Power Adapter |
|---|
| Power Adapter | Power Adapter UTC Controller |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
