| Camera | Gain Control Auto/Manual |
|---|
| Pixel | 2MP Noise Reduction 3D NR |
|---|
| 影像感測器 | 1/2.8"CMOS Smart Illumination Yes |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/25 s–1/100,000 s | Certifications NTSC: 1/30 s–1/100,000 s CE (EN55032:2015, EN 61000-3-2:2014, EN |
|---|
| 最低照度 | 0.002lux/F1.5, 30IRE, 0Lux IR on 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- |
|---|
| S/N Ratio | > 65 dB Certifications 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Illumination Distance | 60 m (196.9 ft) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Illuminator On/Off Control | Auto Port |
|---|
| Illuminator Number | 3 (IR light) Video output choices of CVI/TVI/AHD/CVBS by one Video Output BNC port Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° Audio Input One channel built-in mic Rotation: 0°–355° |
|---|
| 鏡頭 | Power |
|---|
| 供電 | 12V DC±10%; 24V AC±25% |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| 功耗 | Max.10.2W (12V DC, IR on) |
|---|
| Auto Focus | Yes |
|---|
| 鏡頭接口 | φ14 Environment –30°C to +60°C (–22°F to +140°F); < 95% (non- |
|---|
| 焦距 | 2.7 mm–12 mm Operating Temperature condensation) |
|---|
| Max. Aperture | F1.5 –30°C to +60°C (–22°F to +140°F); < 95% (non- Storage Temperature condensation) Diagonal: 38°– 123° |
|---|
| Field of View | Horizontal: 33°–102° Protection IP67; IK10 Vertical: 19°–53° |
|---|
| Iris Control | Fixed Structure |
|---|
| Close Focus Distance | 0.5 m (1.6ft ) Casing Metal throughout the whole casing |
|---|
| Camera Dimensions | φ126 mm × 100 mm (φ5" × 3.9") |
|---|
| DORI 偵測距離 | 47.6 m 19.0 m 9.5 m 4.76 m 2.7 mm |
|---|
| Distance | (156.2 ft) (62.3 ft) (31.2 ft) (15.6 ft) Net Weight 0.65 kg (1.4 lb) 132.1 m 52.9 m 26.4 m 13.2 m 12 mm (433.4 ft) (173.6 ft) (86.6 ft) (43.3 ft) Gross Weight 0.83 kg (1.8 lb) CVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps; Video Frame Rate TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960×576H; NTSC: 960×480H; 1080P (1920 × 1080); Resolution 960H (960 × |
|---|
| Day/Night | Auto (ICR) |
|---|
| BLC | BLC/WDR/HLC |
|---|
| WDR | 130 dB www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description DH-HAC- |
|---|
| HDBW1231RAP-Z-A-DP | 2MP Starlight HDCVI IR Dome Camera, PAL 2.7-12mm 2M Camera DH-HAC- HDBW1231RAN-Z-A-DP 2MP Starlight HDCVI IR Dome Camera, NTSC 2.7-12mm |
|---|
| PFA123 | IP66 Junction Box |
|---|
| PFA137 | Junction Box |
|---|
| PFB203W | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFB220C | Ceiling Mount Bracket Accessories |
|---|
| PFA106 | Mount Adapter |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|

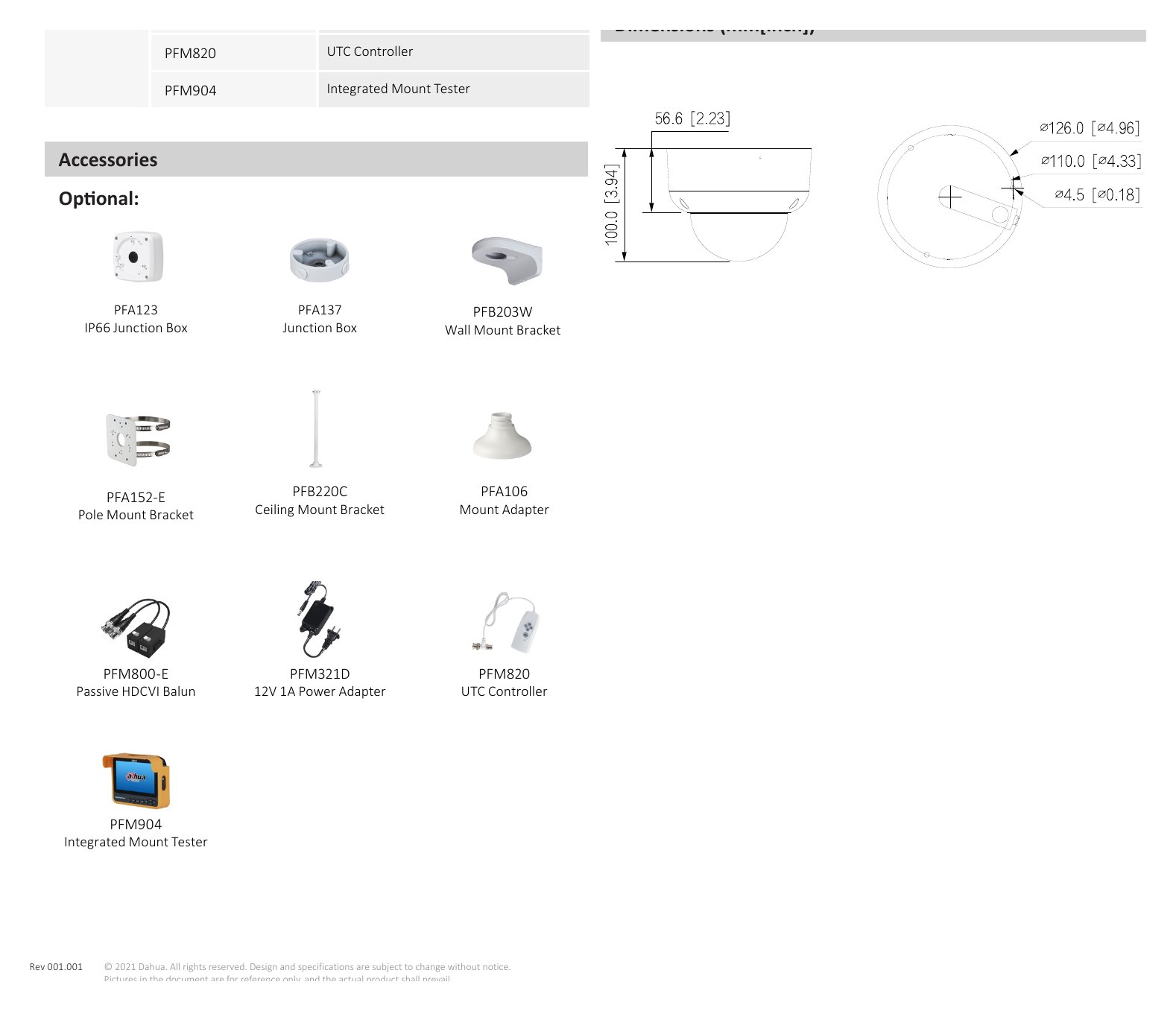

| PFM321D | 12V 1A Power Adapter Dimensions (mm[inch]) |
|---|
| PFM820 | UTC Controller |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| IP66 Junction Box | Junction Box Wall Mount Bracket |
|---|
| Pole Mount Bracket | Ceiling Mount Bracket Mount Adapter |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter UTC Controller PFM904 Integrated Mount Tester |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
