| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 12 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm optional) Power Supply 12V DC ±30% |
|---|
| Max Aperture | F1.85 Power Consumption Max. 4.2W (12V DC, IR on) |
|---|
| Angle of View | H: 77.5° (98°) Environmental |
|---|
| Focus Control | N/A -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 1400mm (900mm) |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH 55" (35'') Ingress Protection & Vandal |
|---|
| DORI Distance | Resistance IP67, IK10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ109.9mm×81.0mm (Φ4.33"×3.19") Distance |
|---|
| Definition | Net Weight 0.31kg (0.68lb) 25px/m 2.8mm: 63m(207ft) Gross Weight 0.45kg (0.99lb) Detect (8px/ft) 3.6mm: 80m(262ft) 63px/m 2.8mm: 25m(82ft) Observe (19px/ft) 3.6mm: 32m(105ft) 125px/m 2.8mm: 13m(43ft) Recognize (38px/ft) 3.6mm: 16m(53ft) 250ppm 2.8mm: 6m(21ft) Identify (76px/ft) 3.6mm: 8m(26ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA136 | PFB203W + PFA152-E |
|---|

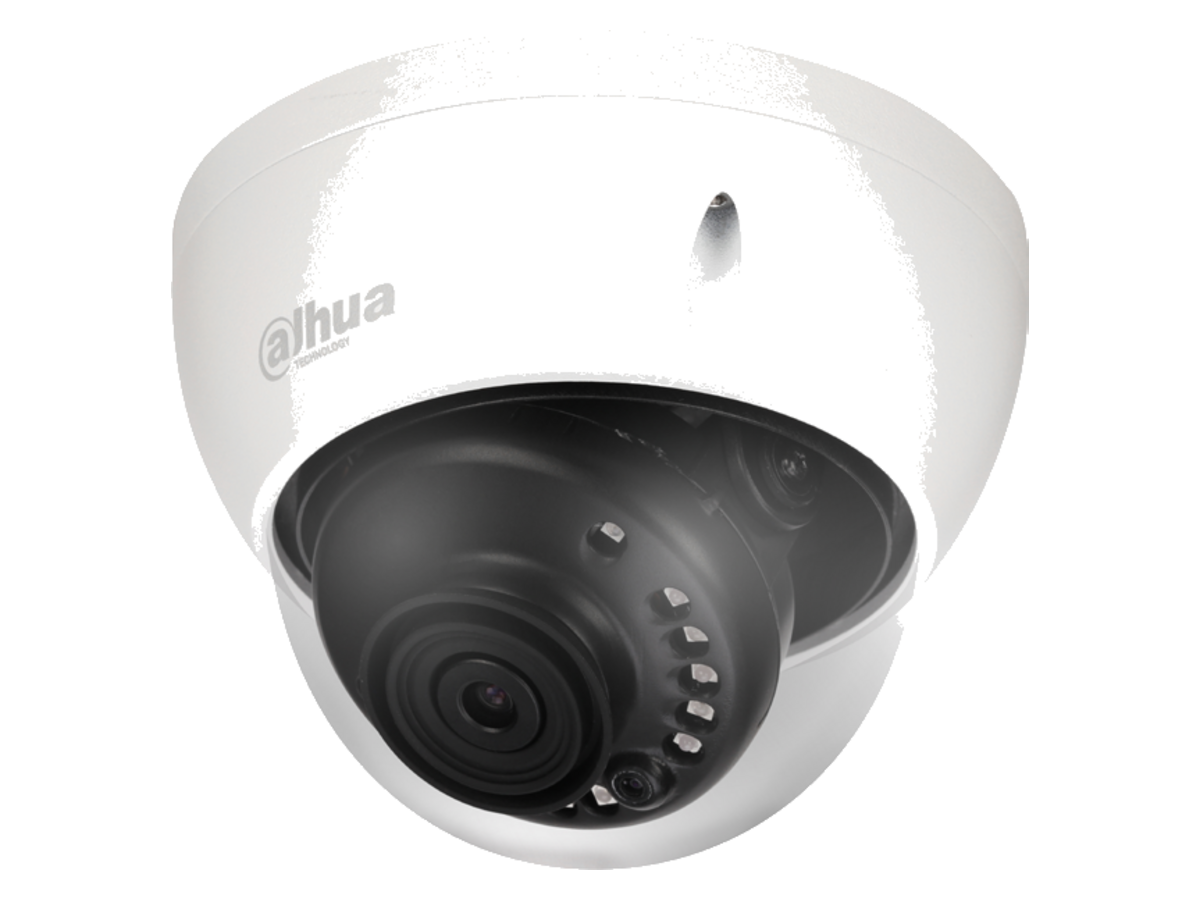

| 類型 | Part Number Description DH-HAC-HDBW1500EP 2.8mm 5MP HDCVI IR Dome Camera, PAL DH-HAC-HDBW1500EP 3.6mm 5MP Camera |
|---|
| DH-HAC-HDBW1500EN 2.8mm | Wall Mount 5MP HDCVI IR Dome Camera, NTSC PFB203W DH-HAC-HDBW1500EN 3.6mm |
|---|
| Pole mount (For use with PFB203W | PFB203W + PFA152-E+PFA200W PFA152-E wall mount) |
|---|
| Rain Shade (For use with PFB203W | Wall Mount with Rain Shade |
|---|
| PFA200W | wall mount or with PFB203W wall |
|---|
| mount and PFA152-E pole mount) | PFB203W+PFA200W |
|---|

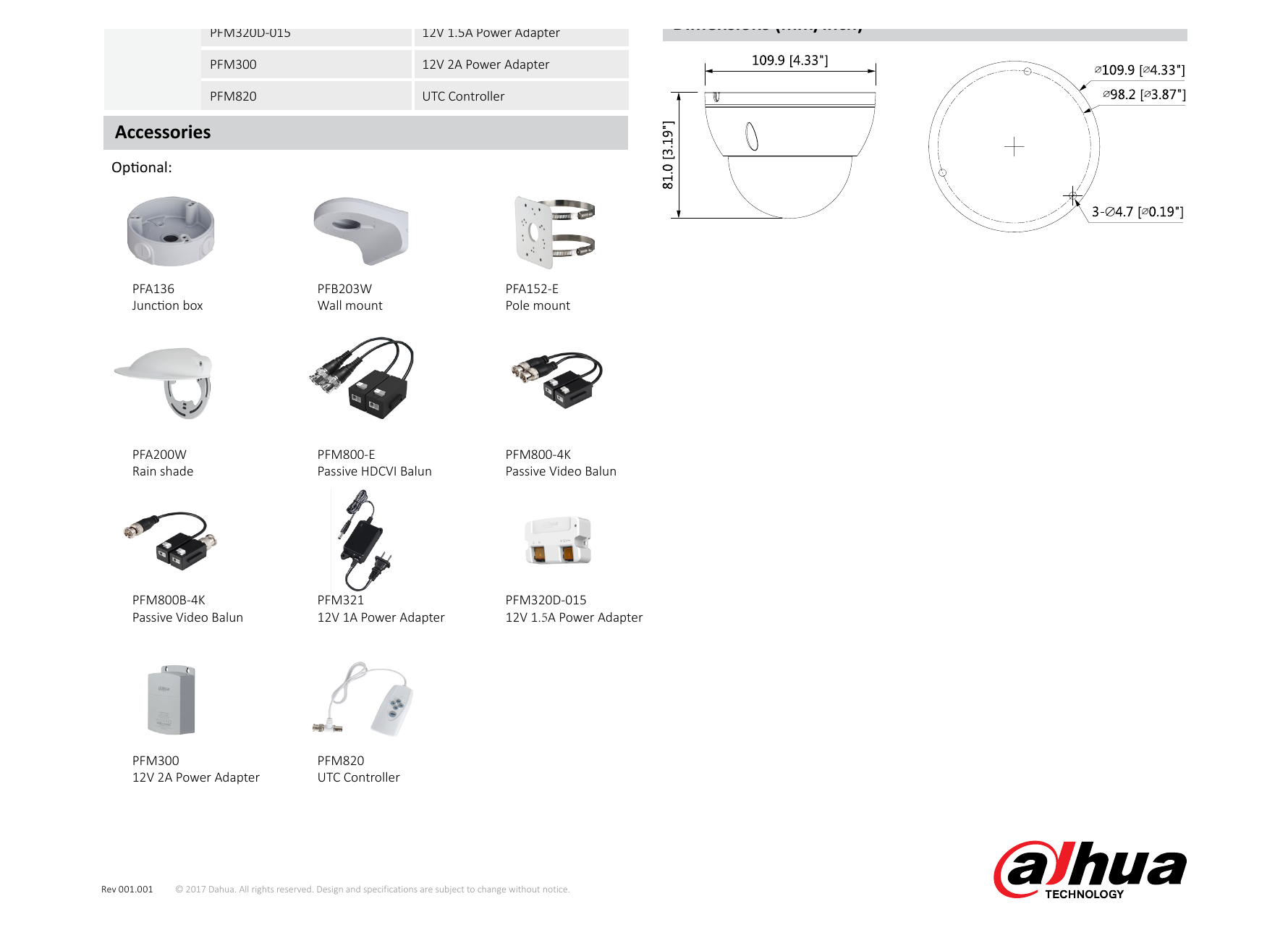

| Accessories | PFM800-E Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Dimensions (mm/inch) |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount |
|---|
| Rain shade | Passive HDCVI Balun Passive Video Balun |
|---|
| Passive Video Balun | 12V 1A Power Adapter 12V 1.5A Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
