| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/3" CMOS WDR 120dB |
|---|
| Effective Pixels | 2688(H)×1520(V), 4.1MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.01Lux/F1.3, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 30m (98feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply 12V DC ±25% |
|---|
| 焦距 | 2.7-13.5mm Power Consumption Max 7.5W (12V DC, IR on) |
|---|
| Max Aperture | F1.3 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 98°~26° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 200mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 & IK10 7.87'' Resistance |
|---|
| DORI Distance | Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| Casing | Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Dimensions Φ122mm×88.9mm (Φ4.8"×3.5") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.47kg (1.04lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.62kg (1.37lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 64m(210ft) 222m(728ft) |
|---|
| Observe | 63px/m (19px/ft) 26m(84ft) 89m(291ft) |
|---|
| Recognize | 125px/m (38px/ft) 13m(42ft) 44m(146ft) |
|---|
| Identify | 250px/m (76px/ft) 6m(21ft) 22m(73ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description DH-HAC-HDBW2401RP-Z 4MP WDR HDCVI IR Dome Camera, PAL 2.7~13.5mm 4MP Camera DH-HAC- |
|---|
| HDBW2401RN-Z | 4MP WDR HDCVI IR Dome Camera, NTSC 2.7~13.5mm |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB203W | PFB203W + PFA152-E |
|---|
| PFB200C | Inceiling mount (For use alone) Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W wall PFA152-E mount) Rain shade (For use with PFB203W wall |
|---|
| FPA200W | mount or with PFB203W wall mount and PFA152-E pole mount) |
|---|
| Adapter Plate of Mini Dome & Eyeball | Wall Mount with Rain Shade Ceiling Mount (Extensible) PFA106 |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM809-4MP | 16 channel Passive HDCVI Balun Receiver Pole Mount with Rain Shade |
|---|
| PFM321 | 12V 1A Power Adapter PFA137+PFA200W+PFA152-E |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

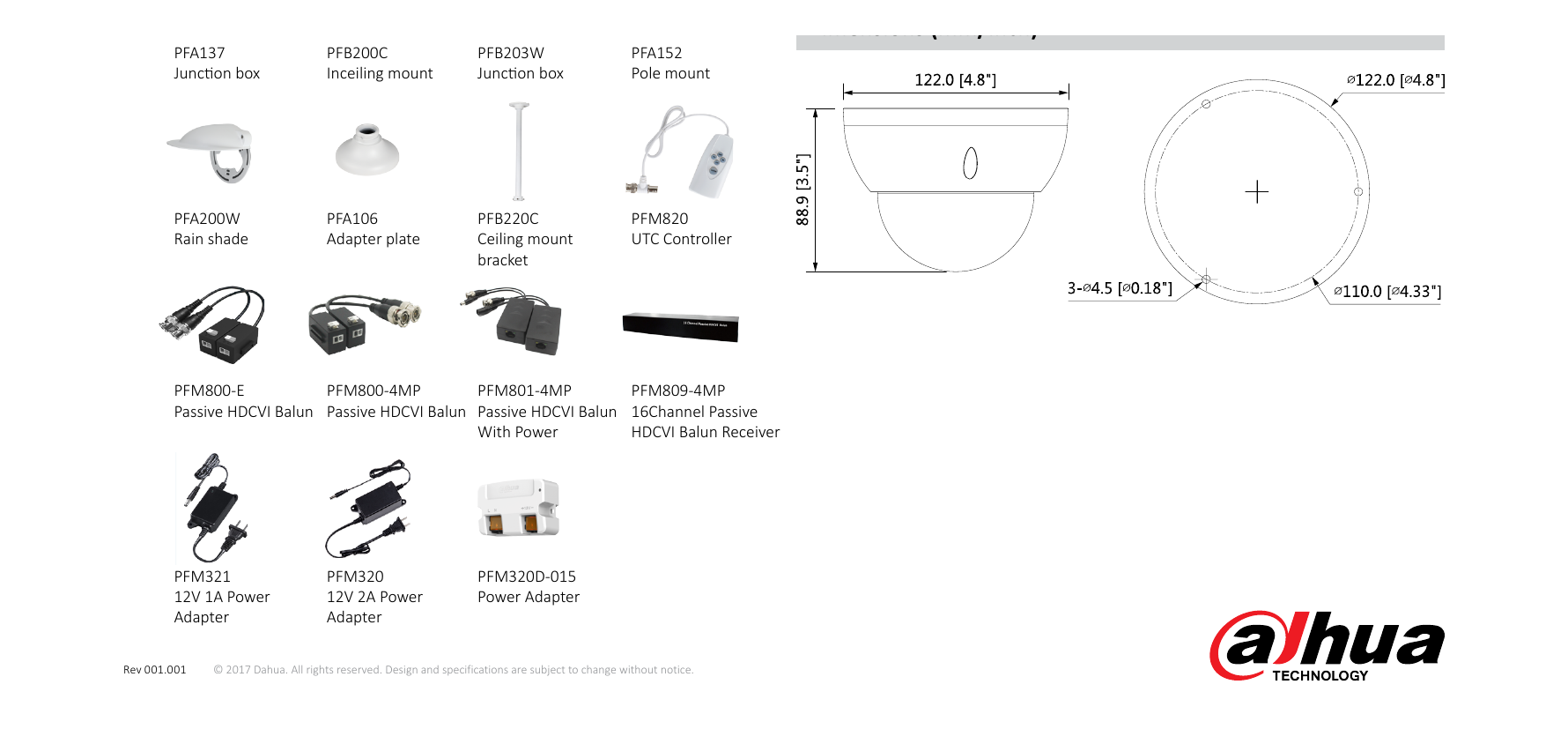

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Inceiling mount Junction box Pole mount |
|---|
| PFA200W | PFA106 PFB220C PFM820 |
|---|
| Rain shade | Adapter plate Ceiling mount UTC Controller bracket |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
