| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.9" CMOS WDR 120dB |
|---|
| Effective Pixels | 2880(H)×1920(V), 6MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.01Lux/F1.3, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 30m (98feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 |
|---|
| Audio Interface | 1 |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| 供電 | 12V DC ±30% |
|---|
| Mount Type | Board-in |
|---|
| 功耗 | Max 6.8W (12V DC, IR on) |
|---|
| 焦距 | 2.7-13.5mm |
|---|
| Max Aperture | F1.3 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 88°~24° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 300mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 & IK10 11.8'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Dimensions Φ122mm×88.9mm (Φ4.8"×3.5") sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.455kg (1.0lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.625kg (1.38lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 79m(259ft) 274m(899ft) |
|---|
| Observe | 63px/m (19px/ft) 32m(105ft) 110m(361ft) |
|---|
| Recognize | 125px/m (38px/ft) 16m(52ft) 55m(180ft) |
|---|
| Identify | 250px/m (76px/ft) 8m(26ft) 27m(89ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 6MP (2880×1920) |
|---|
| Frame Rate | 20fps@6MP, 25/30fps@4MP 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description DH-HAC-HDBW2601RP-Z 6MP WDR HDCVI IR Dome Camera, PAL 2.7~13.5mm 6MP Camera DH-HAC-HDBW2601RN-Z 6MP WDR HDCVI IR Dome Camera, NTSC 2.7~13.5mm |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB200C | Inceiling mount (For use alone) PFB203W PFB203W + PFA152-E Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W wall PFA152-E mount) Rain shade (For use with PFB203W wall |
|---|
| FPA200W | mount or with PFB203W wall mount and PFA152-E pole mount) Accessories Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| PFA137+PFA200W | PFA106+PFB220C Ceiling Mount Bracket of Mini Dome & PFB220C Eyeball Camera |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| Accessories | Pole Mount with Rain Shade PFA137+PFA200W+PFA152-E Optional: |
|---|

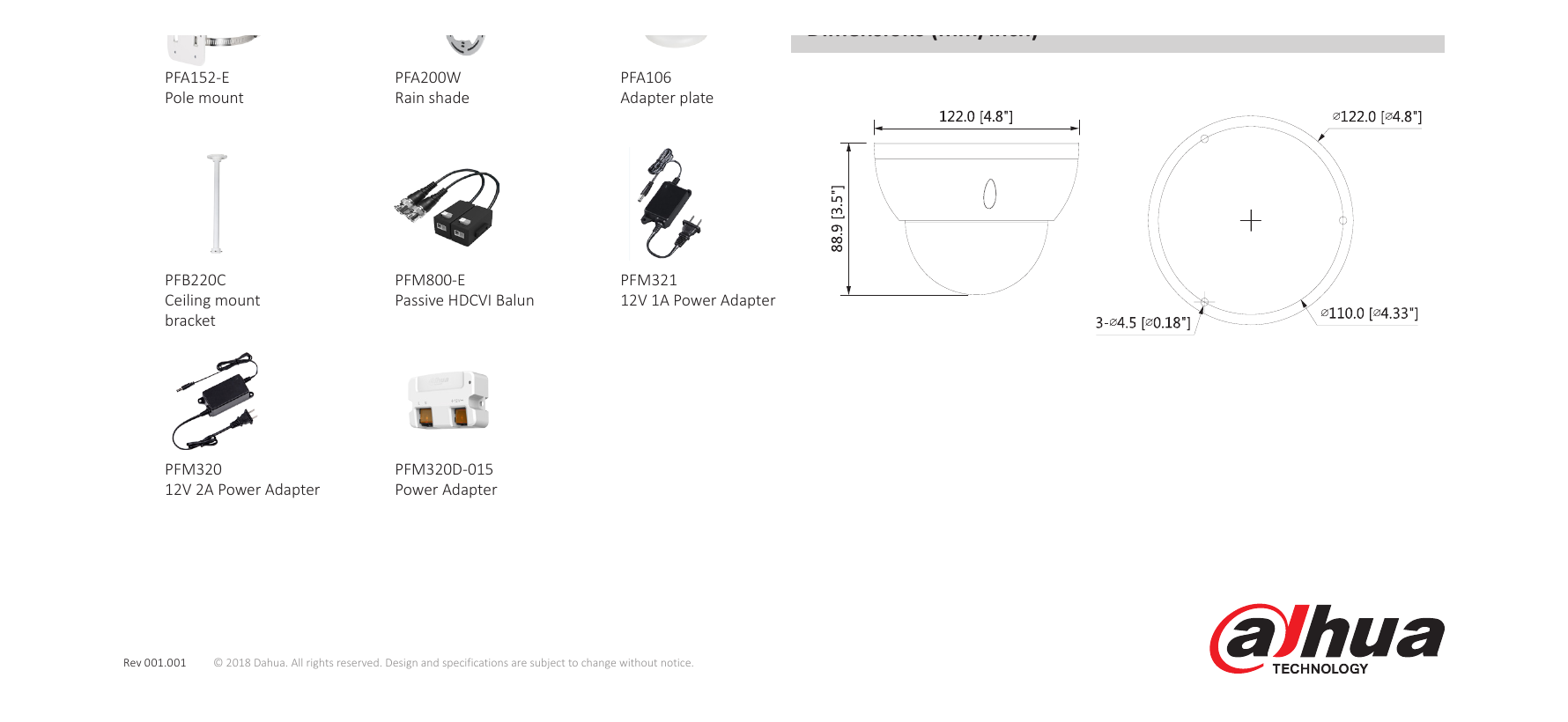

| Junction box | Inceiling mount Junction box Dimensions (mm/inch) |
|---|
| PFA152-E | PFA200W PFA106 |
|---|
| Pole mount | Rain shade Adapter plate |
|---|
| PFB220C | PFM800-E PFM321 |
|---|
| Ceiling mount | Passive HDCVI Balun 12V 1A Power Adapter bracket |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
