| Camera | WDR DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS Gain Control AGC |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Noise Reduction 2D |
|---|
| Scanning System | Progressive White Balance Auto / Manual |
|---|
| PAL: 1/25~1/100000s | Smart IR Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Minimum Illumination | 0.02Lux/F2.0, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) EN50155 (EN50121-3-2, IEC61373) |
|---|
| IR Distance | Up to 3m (9feet) |
|---|
| IR On/Off Control | Auto / Manual Interface |
|---|
| IR LEDs | 1 Audio Interface Built-in Mic |
|---|
| 鏡頭 | Eelectrical |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Power Supply 12V DC ±25% |
|---|
| Mount Type | Board-in Power Consumption Max 1.5W (12V DC, IR on) |
|---|
| 焦距 | 2.1mm Environmental |
|---|
| Max Aperture | F2.0 -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| Angle of View | H: 139° |
|---|
| 儲存環境 | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| Focus Control | N/A Ingress Protection & Vandal N/A Resistance |
|---|
| Close Focus Distance | 500mm(19.68") Construction |
|---|
| DORI Distance | Casing Plastic Note: The DORI distance is a “general proximity” of distance which makes it easy to Dimensions 71.6mm×60.9mm×45.9mm (2.82"×2.4"×1.8") pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Net Weight 0.085kg (0.187lb) criteria for Detect, Observe, Recognize and Identify res |
|---|
| 毛重 | 0.160kg(0.353lb) Distance Definition |
|---|
| Detect | 25px/m (8px/ft) 37.3m(122ft) |
|---|
| Observe | 63px/m (19px/ft) 14.9m(49ft) |
|---|
| Recognize | 125px/m (38px/ft) 7.5m(25t) |
|---|
| Identify | 250px/m (76px/ft) 3.7m(12ft) Pan / Tilt / Rotation Pan: 0° ~ 40° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 55° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) PAL:1920×1080@25fps, 1280×720@25/50fps; Frame Rate NTSC:1920×1080@30fps, 1280×720@30/60fps 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Electronic |
|---|
| OSD Menu | Multi-language www.dahuasecurity.com |
|---|
| Ordering Information | Installation |
|---|
| 類型 | Part Number Description 3M Double-side Tape Mounting Mode: Screw Mounting Mode : 2MP HDCVI Mobile IR Eyeball DH-HAC-HDW1200LP (2.1mm) Camera, PAL 2MP Camera 2MP HDCVI Mobile IR Eyeball DH-HAC-HDW1200LN (2.1mm) Camera, NTSC |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power Accessories |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: Mounting Surface Mounting Surface 3M Double-side Tape Expansion Bolt |
|---|
| Unit Device | Pedestal Self-tapping Screw Dome Body |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun |
|---|

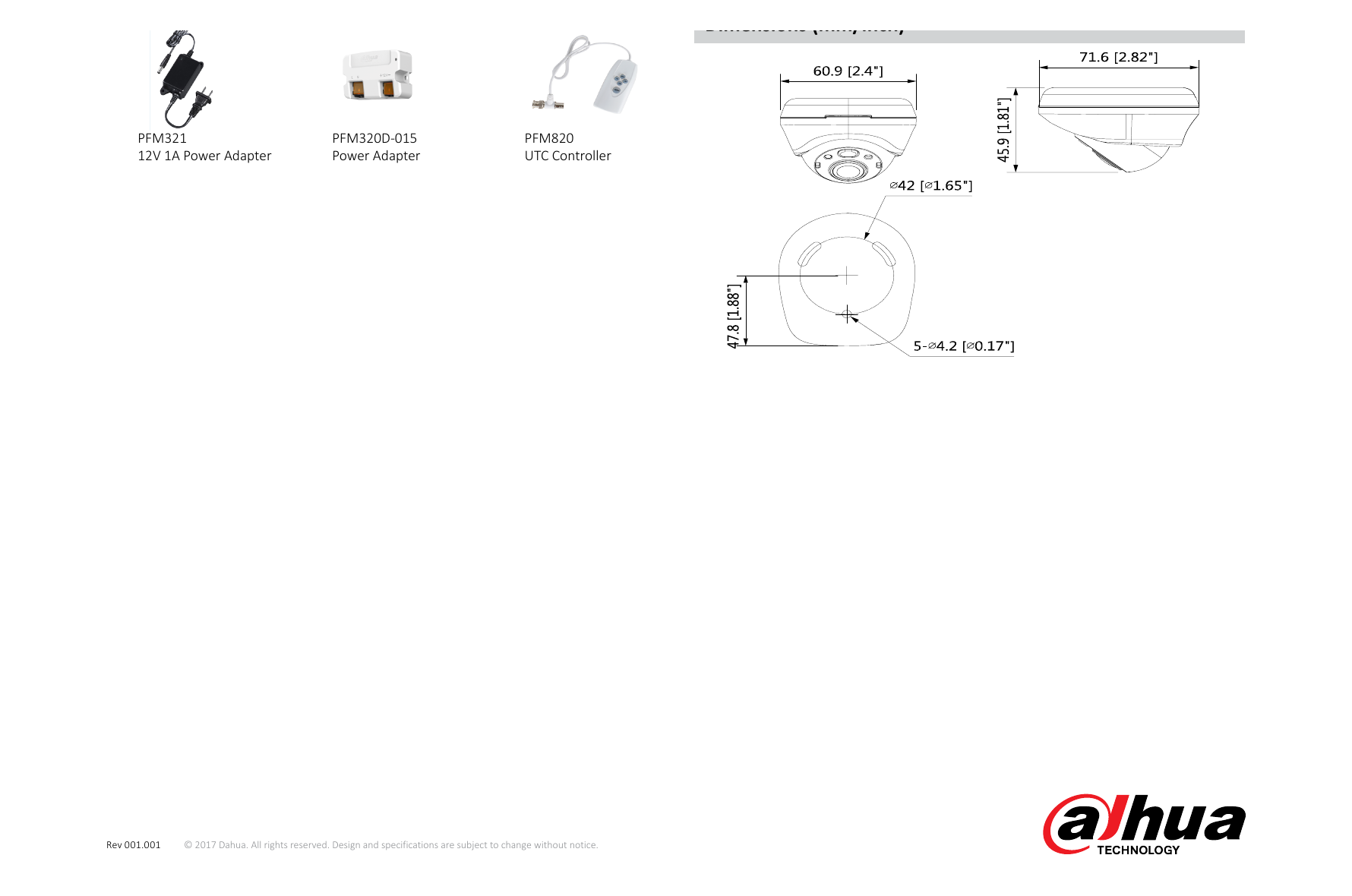

| With Power | Cover Screw Dimensions (mm/inch) |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
