| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.8, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 60m (197feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris |
|---|
| Audio Interface | N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-12mm |
|---|
| 供電 | 12V DC ±30% |
|---|
| Max Aperture | F1.8 |
|---|
| 功耗 | Max 8.2W (12V DC, IR on) |
|---|
| Angle of View | H: 101.7°~32.3° Environmental |
|---|
| Focus Control | Motorized -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Auto Focus | N/A |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 200mm Close Focus Distance 7.87'' Ingress Protection & Vandal IP67 Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| Casing | Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| 尺寸 | Φ122mm×104mm (Φ4.8"×4.1") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Distance | Net Weight 0.57kg (1.26lb) |
|---|
| Definition | Wide Tele Gross Weight 0.72kg (1.59lb) 25px/m |
|---|
| Detect | 47m(153ft) 137m(448ft) (8px/ft) 63px/m |
|---|
| Observe | 19m(61ft) 55m(179ft) (19px/ft) 125px/m |
|---|
| Recognize | 9m(31ft) 27m(90ft) (38px/ft) 250px/m |
|---|
| Identify | 5m(15ft) 14m(45ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description 2MP Starlight HDCVI IR Eyeball DH-HAC-HDW1230TP-Z Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Eyeball DH-HAC-HDW1230TN-Z Camera, NTSC |
|---|
| Pole mount (For use with | Wall Mount PFA152-E |
|---|
| PFB203W wall mount) | PFB203W |
|---|
| PFM820 | UTC Controller |
|---|
| Accessories | PFM800-E Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|

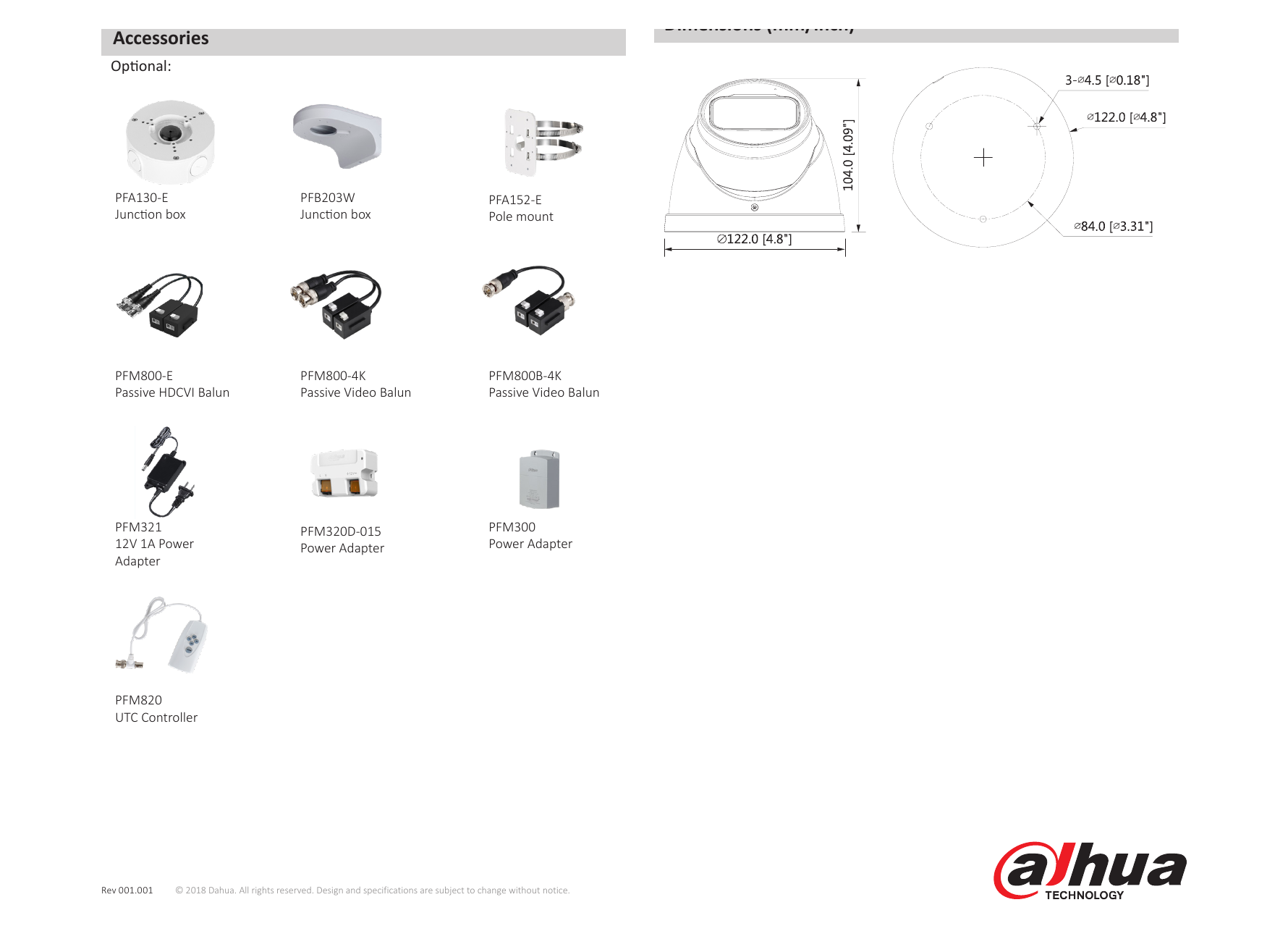

| PFM300 | 12V 2A Power Adapter Dimensions (mm/inch) Accessories Optional: |
|---|
| Junction box | Junction box Pole mount |
|---|
| PFM800-E | PFM800-4K PFM800B-4K |
|---|
| Passive HDCVI Balun | Passive Video Balun Passive Video Balun |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
