| Camera | Gain Control Auto; manual |
|---|
| 影像感測器 | 5MP CMOS Noise Reduction 3D NR |
|---|
| 最大解像度 | 2880 (H) × 1620 (V) Smart Light Yes |
|---|
| Pixel | 5MP Mirror Off/On |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 area, rectangle) PAL: 1/3 s–1/100,000 s |
|---|
| Electronic Shutter Speed | Certifications NTSC: 1/4 s–1/100,000 s CE (EN55032, EN55024, EN50130-4,EN60950-1) |
|---|
| S/N Ratio | > 65 dB |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| 最低照度 | 0.001 Lux/F1.0, 0 Lux White Light on UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Illumination Distance | 40 m (132.1 ft) Port Video output choices of CVI/TVI/AHD/CVBS by one |
|---|
| Illuminator On/Off Control | Auto; manual Video Output BNC port |
|---|
| Illuminator Number | 2 Audio Input One channel built-in mic Pan: 0°–360° Power |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Power Supply DC12 V±10%;AC24V±25% |
|---|
| 鏡頭 | Power Consumption Max 9.9 W (12 V DC, warm light on) |
|---|
| 鏡頭類型 | Motorized Vari-focal Environment |
|---|
| Mount Type | φ14 –30 °C to +60 °C (–22 °F to 140 °F); < 95% (nonconden- Operating Temperature sation) |
|---|
| 焦距 | 2.7 mm–13.5 mm –30 °C to +60 °C (–22 °F to 140 °F); < 95% (nonconden- Storage Temperature sation) |
|---|
| Max. Aperture | F1.2 |
|---|
| Protection Grade | IP67 H: 35°–112°; |
|---|
| Field of View | V: 19°–58°; Structure D: 40–137° |
|---|
| Casing | Metal throughout the whole casing |
|---|
| 光圈類型 | Fixed iris |
|---|
| Camera Dimensions | φ122 mm × 104.8 mm (φ4.8" × 4.13") |
|---|
| Close Focus Distance | 1.5 m (4.9 ft) |
|---|
| 淨重 | 0.61 kg (1.34 lb) |
|---|
| 毛重 | 0.78 kg (1.72 lb) |
|---|
| DORI 偵測距離 | 65.2 m 26 m 13 m 6.5 m 2.7 mm |
|---|
| Distance | (213.9 ft) ( 85.3 ft) (42.7 ft) (21.3 ft) 186.6 m 74.6 m 37.3 m 18.6 m 13.5 mm (612.2 ft) (244.8 ft) (122.4 ft) (61 ft) CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps Frame Rate TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × Resolution 1080); 960H (960 × 5 |
|---|
| BLC | BLC/HLC/WDR/HLC-Pro |
|---|
| WDR | 120 dB www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC-HDW1509TP-Z- | 5MP Full-Color HDCVI Motorized Vari-focal |
|---|
| A-LED-DP | Eyeball Camera, PAL 5MP Camera |
|---|
| DH-HAC-HDW1509TN-Z- | 5MP Full-Color HDCVI Motorized Vari-focal |
|---|
| PFA137 | Junction box |
|---|
| PFA130-E | Water-proof Junction Box |
|---|
| PFB205W | Wall Mount Bracket Adapter Plate of Mini Dome & Eyeball |
|---|
| PFA106+PFB220C | Camera + Ceiling Mount Bracket of Mini |
|---|
| Accessories | Dome & Eyeball Camera (Optional) |
|---|
| PFA152-E+PFB205W | Pole Mount Bracket + Wall Mount Bracket |
|---|
| PFM800-4K | Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

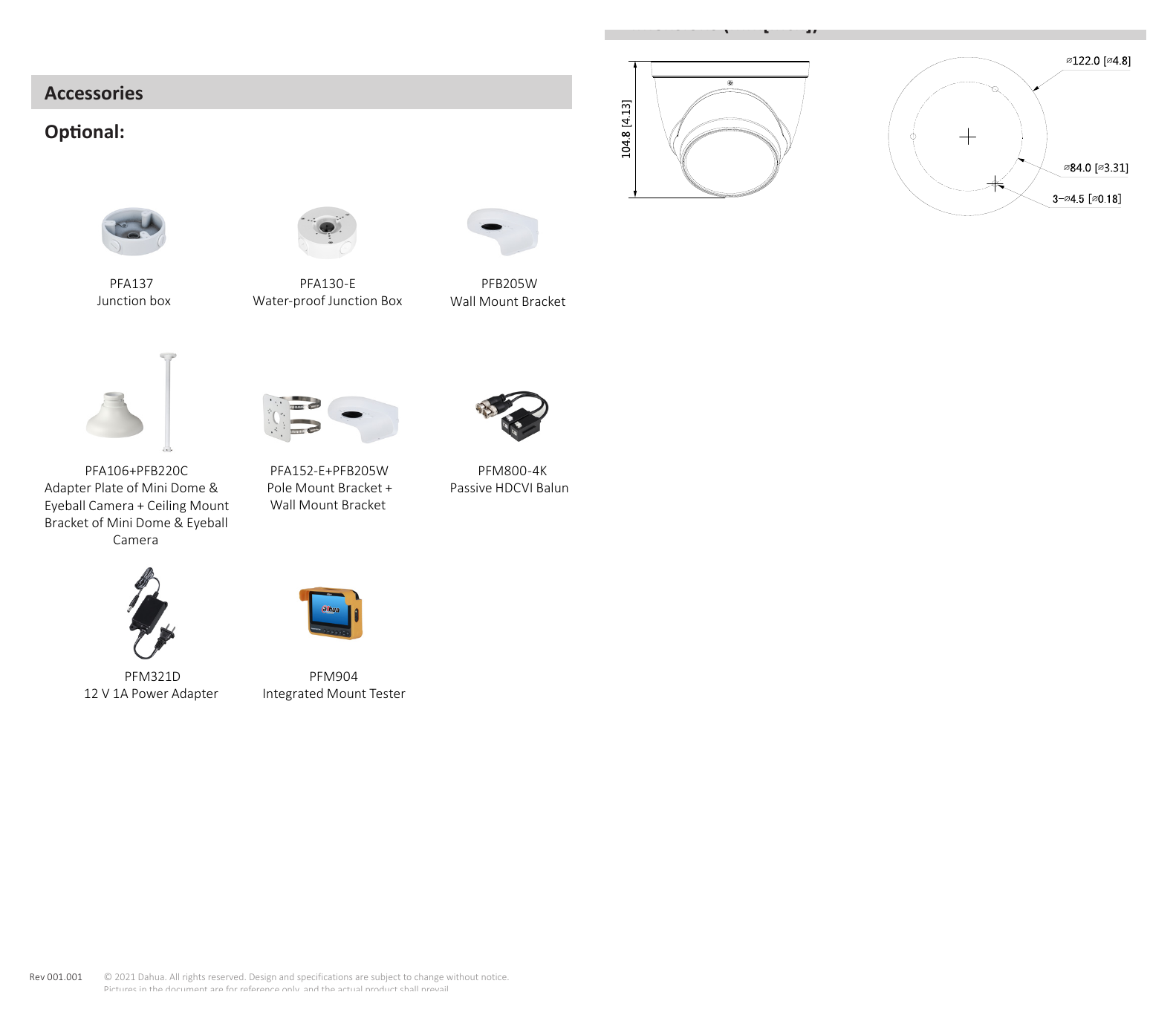

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction box | Water-proof Junction Box Wall Mount Bracket |
|---|
| Adapter Plate of Mini Dome & | Pole Mount Bracket + Passive HDCVI Balun |
|---|
| Eyeball Camera + Ceiling Mount | Wall Mount Bracket Bracket of Mini Dome & Eyeball |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
