| Camera | CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| 影像感測器 | 1/2.7 inch CMOS UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Effective Pixels | 3840 (H)×2160 (V), 4K Port |
|---|
| PAL: 1/3s-1/100000s | Video output choices of CVI/TVI/AHD/CVBS by one |
|---|
| Electronic Shutter Speed | Video Port |
|---|
| NTSC: 1/4s-1/100000s | BNC port |
|---|
| Audio Port | Built-in mic (-A) |
|---|
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on Power |
|---|
| IR Distance | Distance up to 30m (98.43ft) |
|---|
| 供電 | 12V±30% DC |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 功耗 | Max 5.2W (12V DC, IR on) |
|---|
| IR LEDs | 1 Pan: 0°-360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°-78° Operating Temperature -40°C to +60°C (-40°F to 140°F); <95% |
|---|
| Rotation: 0°-360° | (non-condensation) |
|---|
| 鏡頭 | Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Protection Grade | IP67 |
|---|
| Mount Type | M12 Structure |
|---|
| 焦距 | 2.8mm; 3.6mm |
|---|
| Casing | Metal inner core+plastic cover |
|---|
| Max. Aperture | F2.0 |
|---|

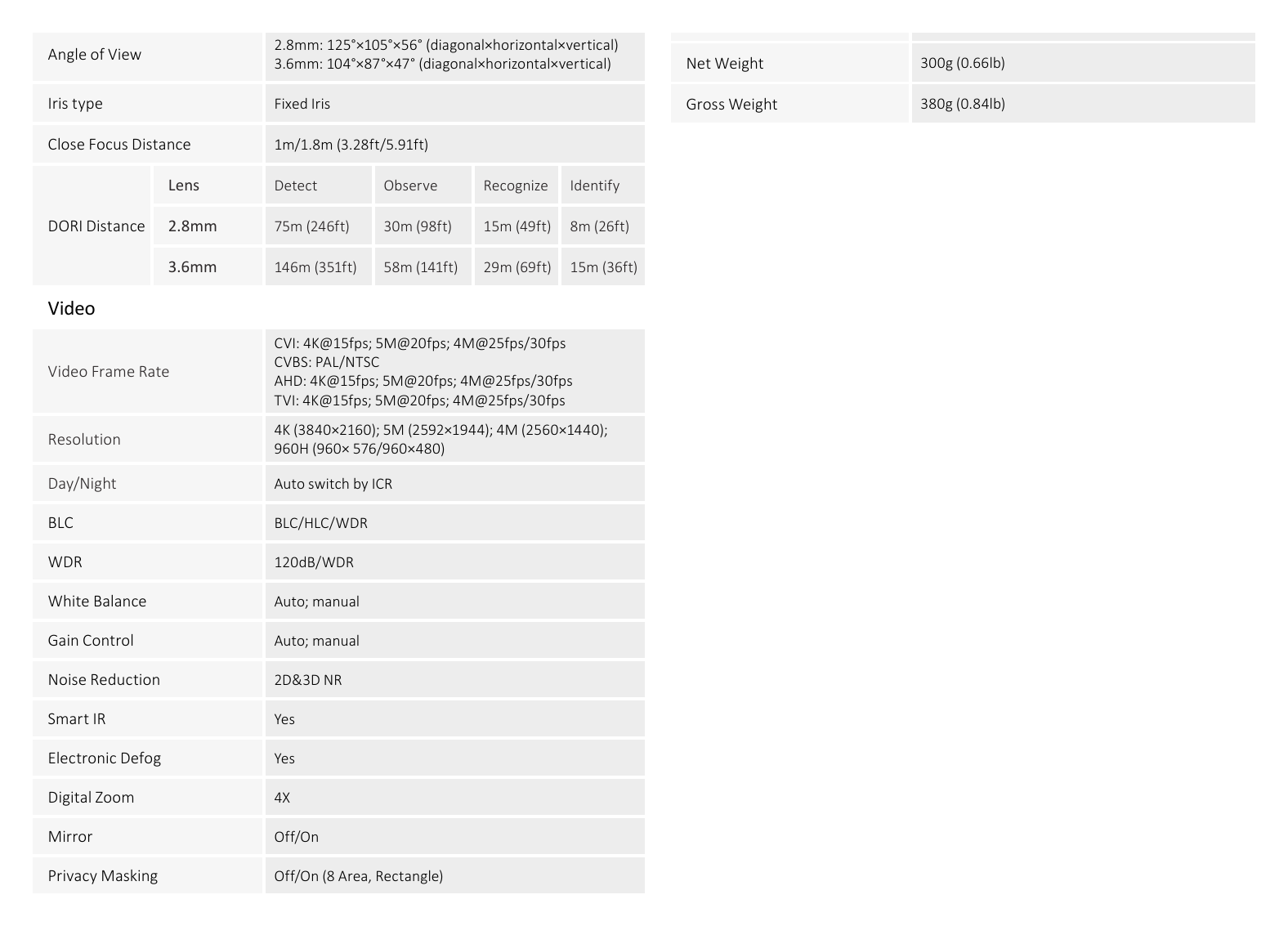

| 尺寸 | φ97mm×85.8mm (3.82‘‘×3.38’’) 2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) Angle of View 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) Net Weight 300g (0.66lb) |
|---|
| 光圈類型 | Fixed Iris Gross Weight 380g (0.84lb) |
|---|
| Close Focus Distance | 1m/1.8m (3.28ft/5.91ft) |
|---|
| DORI Distance | 2.8mm 75m (246ft) 30m (98ft) 15m (49ft) 8m (26ft) 3.6mm 146m (351ft) 58m (141ft) 29m (69ft) 15m (36ft) CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC Video Frame Rate AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); Resolution 960H (960× 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | 120dB/WDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D&3D NR |
|---|
| Smart IR | Yes |
|---|
| Electronic Defog | Yes |
|---|
| Digital Zoom | 4X |
|---|
| Mirror | Off/On |
|---|
| Privacy Masking | Off/On (8 Area, Rectangle) www.dahuasecurity.com |
|---|
| Ordering Information | Accessories |
|---|
| 類型 | Part Number Description Optional: DH-HAC- HDW1801TLP- 0280B |
|---|
| PFA130-E | PFA152-E PFA12A |
|---|
| DH-HAC- | Junction box Pole box Plastic Junction box |
|---|
| HDW1801TLN- | (For use alone or with (For usewith PFA130-E (For use alone) 0280B PFA152-E pole mount) junction mount) DH-HAC- HDW1801TLP- 0360B |
|---|
| PFM800-4K | PFM800B-4K PFM320D-015 |
|---|
| PFA12A | Plastic Junction box (For use alone) |
|---|
| PFA152-E | Pole box (For usewith PFA130-E junction mount) |
|---|
| Accessories | PFM800-4K Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
