| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 20m (66feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 12 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) |
|---|
| 供電 | 12V DC ±30% |
|---|
| Max Aperture | F1.85 |
|---|
| 功耗 | Max 3.3W (12V DC, IR on) |
|---|
| Angle of View | H: 87.5° (103°, 54.7°) Environmental |
|---|
| Focus Control | N/A -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 500mm (900mm, 2000mm) Close Focus Distance 19.69'' (35.43", 78.74'') Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Plastic criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| DORI 偵測距離 | Dimensions 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75") Distance Definition |
|---|
| 淨重 | 0.15kg (0.33lb) 2.8mm: 37m(122ft) 25px/m |
|---|
| Detect | 3.6mm: 53m(175ft) Gross Weight 0.22kg (0.47lb) (8px/ft) 6mm: 80m(262ft) 2.8mm: 15m(49ft) 63px/m |
|---|
| Observe | 3.6mm: 21m(70ft) (19px/ft) 6mm: 32m(105ft) 2.8mm: 8m(25ft) 125px/m |
|---|
| Recognize | 3.6mm: 11m(35ft) (38px/ft) 6mm: 16m(52ft) 2.8mm: 4m(12ft) 250ppm |
|---|
| Identify | 3.6mm: 5m(17ft) (76px/ft) 6mm: 8m(26ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFA134 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1200RP 2.8mm |
|---|
| DH-HAC-HFW1200RP 3.6mm | 2MP HDCVI IR Bullet Camera, PAL DH-HAC-HFW1200RP 6mm 2MP Camera DH-HAC-HFW1200RN 2.8mm 2MP HDCVI IR Bullet Camera, DH-HAC-HFW1200RN 3.6mm NTSC DH-HAC-HFW1200RN 6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA152-E junction box) |
|---|
| PFM820 | UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun Accessories |
|---|

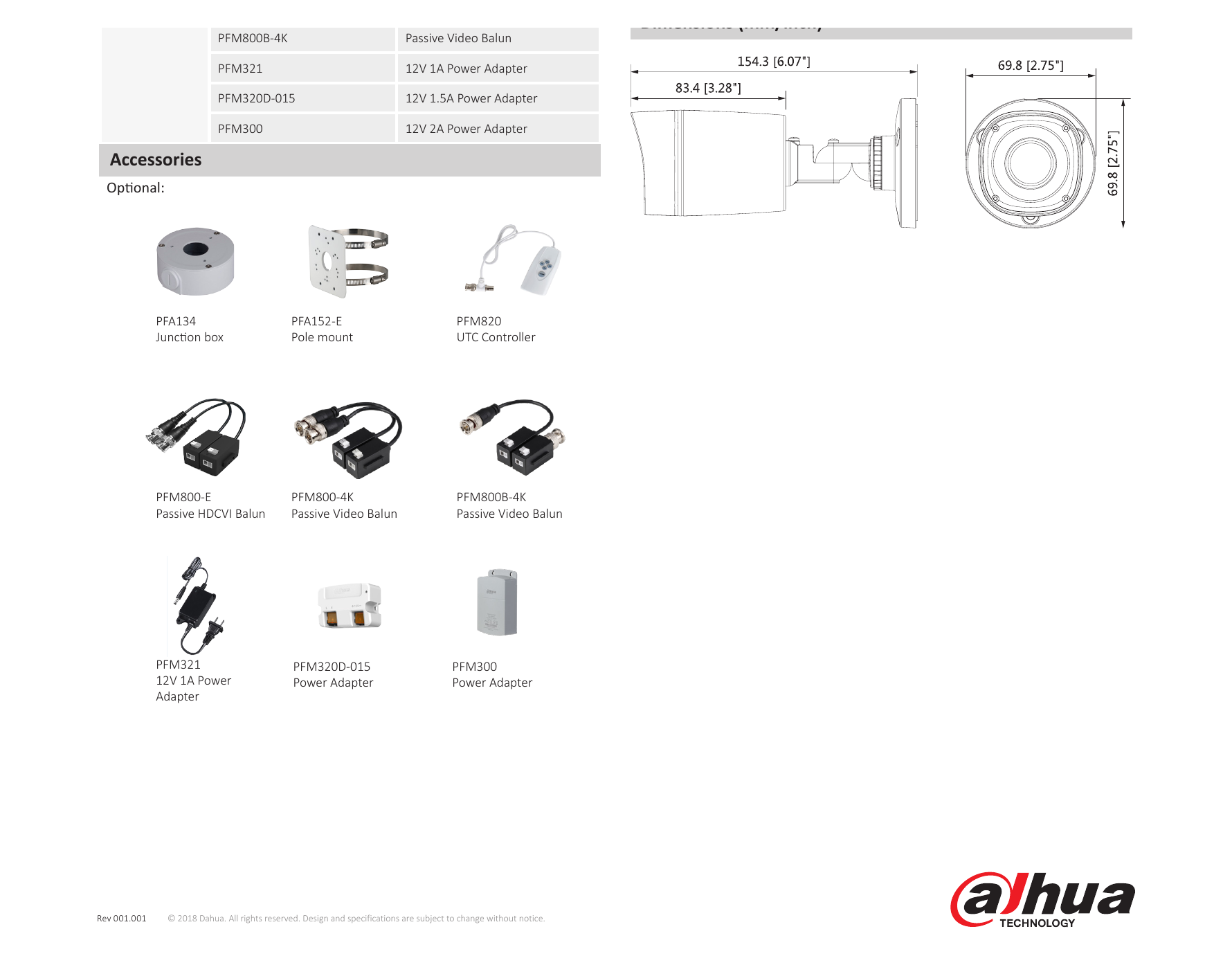

| PFM800-4K | Passive Video Balun Dimensions (mm/inch) |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter Accessories Optional: |
|---|
| Junction box | Pole mount UTC Controller |
|---|
| Passive HDCVI Balun | Passive Video Balun Passive Video Balun |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
