| Camera | Smart Light Yes |
|---|
| 影像感測器 | 1/2.8 inch CMOS Mirror Off/On |
|---|
| Effective Pixels | 1920 (H) × 1080 (V), 2MP Privacy Masking Off/On (8 area, rectangle) |
|---|
| Scanning System | Progressive Certifications |
|---|
| PAL: 1/25 s–1/100000 s | CE (EN55032, EN55024, EN50130-4,EN60950-1) |
|---|
| Electronic Shutter Speed | Certifications |
|---|
| NTSC: 1/30 s–1/100000 s | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| S/N Ratio | > 65 dB Port |
|---|
| Minimum Illumination | 0.01 Lux/F1.6, 0 Lux white light on Video output choices of CVI/TVI/AHD/CVBS by one Video Output BNC port |
|---|
| Illumination Distance | Distance up to 20 m (65.61 ft) |
|---|
| Audio Interface | Built-in Mic (-A) |
|---|
| Illuminator On/Off Control | Auto; manual Power |
|---|
| Illuminator Number | 1 |
|---|
| 供電 | 12V ±30% DC Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Power Consumption Max 3.1W (12V DC, white light on) Rotation: 0°–360° –40°C to +60°C (–40°F to 140°F); <95% (non- Operating Temperature |
|---|
| 鏡頭類型 | Fixed-focal condensation) –40°C to +60°C (–40°F to 140°F); <95% (non- |
|---|
| Mount Type | M12 Storage Temperature condensation) |
|---|
| 焦距 | 2.8 mm; 3.6 mm Protection Grade IP67 |
|---|
| Max. Aperture | F1.6 Structure 2.8 mm: 126.2° × 106° × 56.5° Casing Metal throughout the whole casing (diagonal × horizontal × vertical); Field of View 3.6 mm: 103.6° × 86.9° × 46.3° Camera Dimensions 166.6 mm × 69.7 mm × 70.0 mm (6.56" × 2.75" × 2.75") (diagonal × horizontal × vertical) |
|---|
| 淨重 | 0.33 kg (0.73 lb) |
|---|
| 光圈類型 | Fixed iris 2.8 mm: 0.7 m (2.29 ft); Gross Weight 0.43 kg (0.95 lb) Close Focus Distance 3.6 mm: 1.2 m (3.94 ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | 43.9 m 17.5 m 8.8 m 4.4 m 2.8 mm |
|---|
| Distance | (144.02 ft) (57.41 ft) (28.87 ft) (14.43 ft) 55.2 m 22.1 m 11.0 m 5.5 m 3.6 mm (181.1 ft) (72.5 ft) (36.1 ft) (18.0 ft) CVI: PAL: 1080p@25 fps; 720p@25 fps; NTSC: 1080p@30 fps; 720p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps CVBS: PAL: 960H; NTSC: 960H 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × Resolution 576/960 × 480) |
|---|
| BLC | BLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual www.dahuasecurity.com Ordering Information |
|---|

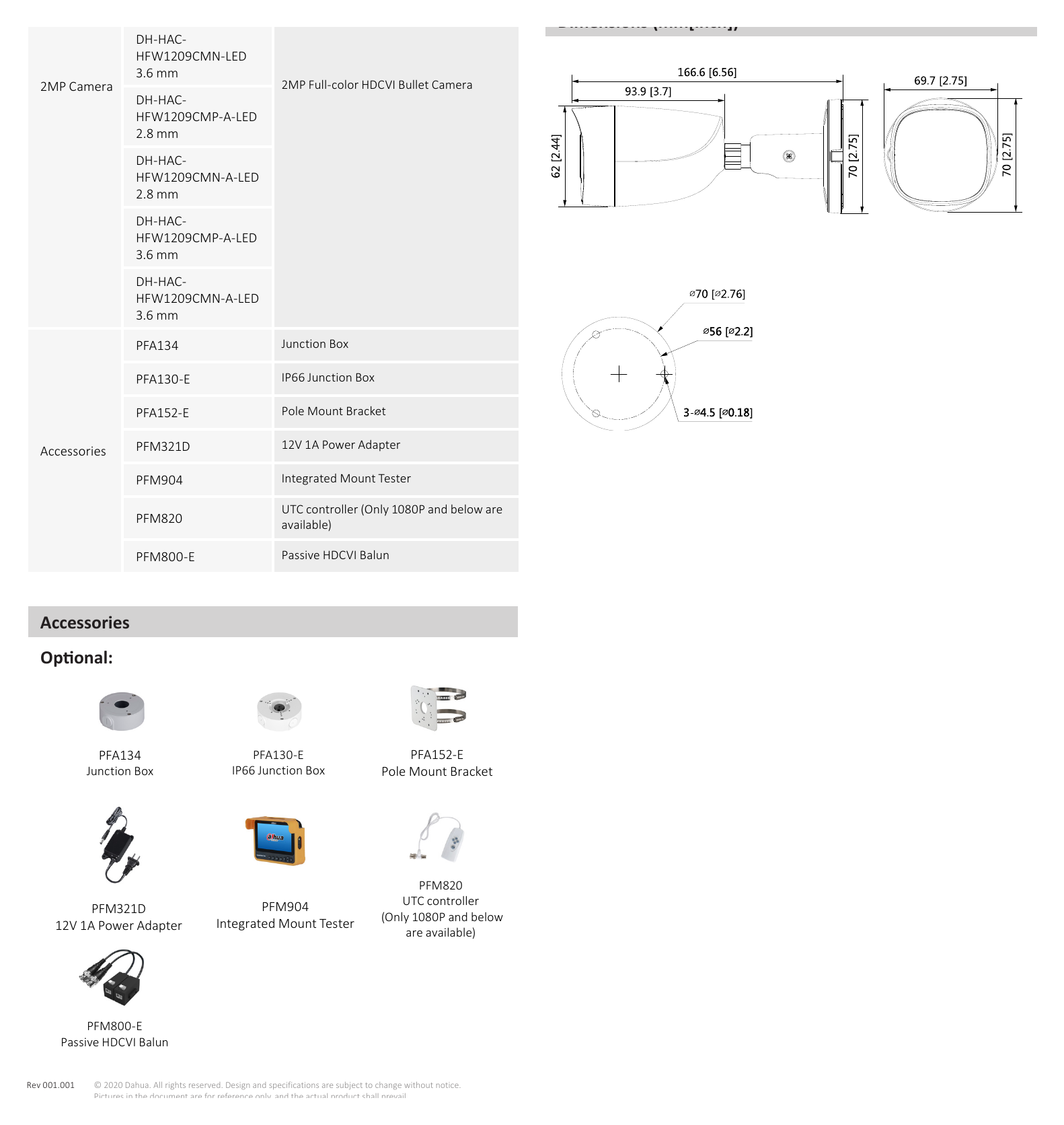

| 類型 | Part Number Description DH-HAC- HFW1209CMP-LED 2.8 mm DH-HAC- HFW1209CMN-LED 2.8 mm DH-HAC- HFW1209CMP-LED 3.6 mm Dimensions (mm[inch]) DH-HAC- HFW1209CMN-LED 3.6 mm 2MP Camera 2MP Full-color HDCVI Bullet Camera DH-HAC- HFW1209CMP-A-LED 2.8 mm DH-HAC- HFW1209CMN-A-LED 2.8 mm DH-HAC- HFW1209CMP-A-LED 3.6 mm DH-HAC- HFW1209CMN-A-LED 3.6 mm |
|---|
| PFA134 | Junction Box |
|---|
| PFA130-E | IP66 Junction Box |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFM321D | 12V 1A Power Adapter Accessories |
|---|
| PFM904 | Integrated Mount Tester UTC controller (Only 1080P and below are |
|---|
| PFM820 | available) |
|---|
| PFM800-E | Passive HDCVI Balun Accessories Optional: |
|---|
| Junction Box | IP66 Junction Box Pole Mount Bracket PFM820 |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
