| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 2560(H)×1440(V), 4MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 18 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) Power Supply 12V DC ±30% |
|---|
| Max Aperture | F2.0 Power Consumption Max 4.9W (12V DC, IR on) |
|---|
| H: 76.4° (97.0°/48.6°) | Environmental Angle of View V: 41.6° (52°/27.9°) -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 1400mm (800mm/2500mm) Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Close Focus Distance 55.1'' (31.5''/98.4'') Ingress Protection & Vandal IP67 |
|---|
| DORI Distance | Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Plastic criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

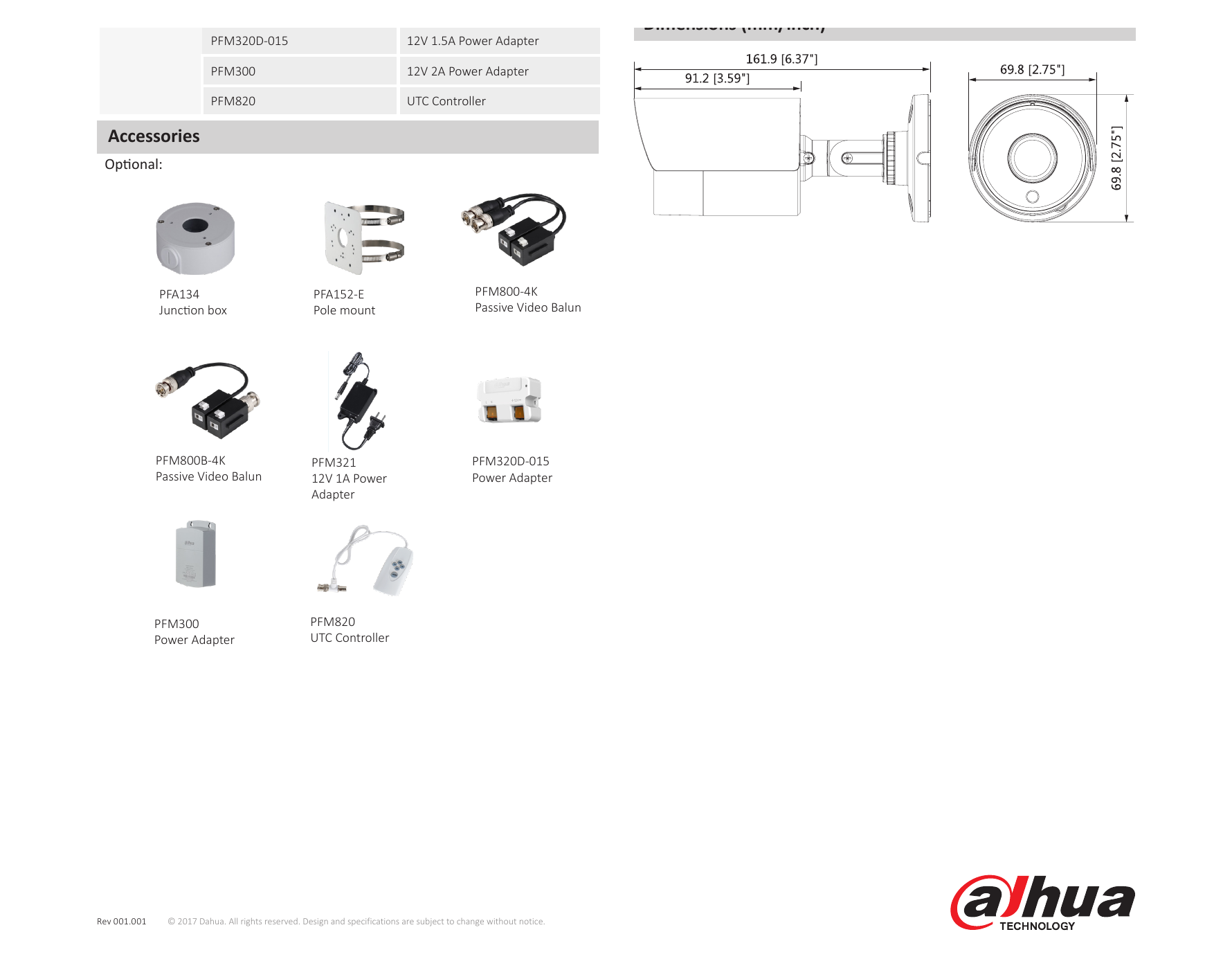

| 尺寸 | 161.9mm×69.8mm×69.8mm (6.37"×2.75"×2.75") |
|---|
| Distance | Net Weight 0.22kg (0.49lb) Definition 2.8mm: 56m(184ft) Gross Weight 0.31kg (0.68lb) 25px/m |
|---|
| Detect | 3.6mm: 80m(262ft) (8px/ft) 6mm: 120m(394ft) 2.8mm: 22m(73ft) 63px/m |
|---|
| Observe | 3.6mm: 32m(105ft) (19px/ft) 6mm: 48m(157ft) 2.8mm: 11m(37ft) 125px/m |
|---|
| Recognize | 3.6mm: 16m(52ft) (38px/ft) 6mm: 24m(79ft) 2.8mm: 6m(18ft) 250ppm |
|---|
| Identify | 3.6mm: 8m(26ft) (76px/ft) 6mm: 12m(39ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFB134 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1400SLP 2.8mm |
|---|
| DH-HAC-HFW1400SLP 3.6mm | 4MP HDCVI IR Bullet Camera, PAL DH-HAC-HFW1400SLP 6mm 4MP Camera DH-HAC-HFW1400SLN 2.8mm 4MP HDCVI IR Bullet Camera, DH-HAC-HFW1400SLN 3.6mm NTSC DH-HAC-HFW1400SLN 6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA152-E junction box) |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| Accessories | PFM800B-4K Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter Dimensions (mm/inch) |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| Junction box | Pole mount Passive Video Balun |
|---|
| PFM800B-4K | PFM321 PFM320D-015 |
|---|
| Passive Video Balun | 12V 1A Power Power Adapter Adapter |
|---|
| Power Adapter | UTC Controller |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
