| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 1 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface Built-in Mic |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm Power Supply POC/12V DC ±30% |
|---|
| Max Aperture | F1.85 Power Consumption Max. 3.6W (12V DC, IR on) |
|---|
| H: 77.5° | Environmental Angle of View V: 56.5° -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 1400mm Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Close Focus Distance 55.1'' Ingress Protection & Vandal IP67 |
|---|
| DORI Distance | Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

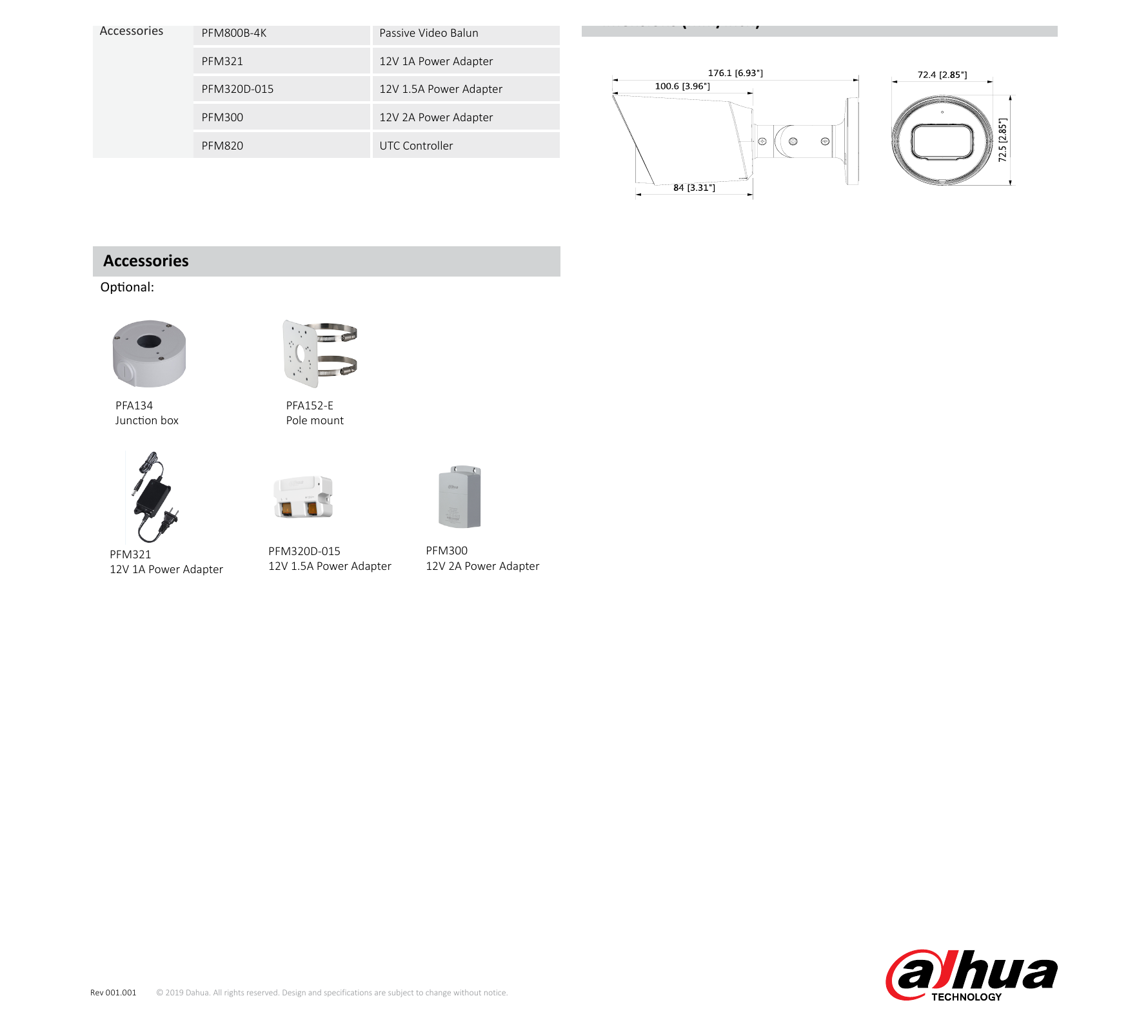

| 尺寸 | 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85") |
|---|
| Distance | Net Weight 0.37kg (0.82lb) Definition 25px/m Gross Weight 0.48kg (1.06lb) |
|---|
| Detect | 3.6mm: 80m(262ft) (8px/ft) 63px/m |
|---|
| Observe | 3.6mm: 32m(105ft) (19px/ft) 125px/m |
|---|
| Recognize | 3.6mm: 16m(52ft) (38px/ft) 250ppm |
|---|
| Identify | 3.6mm: 8m(26ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Pole Mount |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HFW1500TP-A-POC | 5MP HDCVI POC IR Bullet Camera, 3.6mm PAL 5MP Camera |
|---|
| DH-HAC-HFW1500TN-A-POC | 5MP HDCVI POC IR Bullet Camera, 3.6mm NTSC Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA150-E junction box) |
|---|
| PFM800-4K | Passive Video Balun Dimensions (mm/inch) |
|---|
| Accessories | PFM800B-4K Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| PFA134 | PFA152-E |
|---|
| Junction box | Pole mount |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
