| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR 120dB |
|---|
| Effective Pixels | 1928(H)×1088(V), 2.1MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D / 3D |
|---|
| PAL: 1.3s~1/30000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.03Lux/F1.4, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 60m (197feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR On/Off Control | Auto / Manual UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 4 Interface |
|---|
| 鏡頭 | Audio Interface N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply AC 24V±25% / DC 12V±25% |
|---|
| 焦距 | 2.7-12mm Power Consumption Max 15.2W (12V DC, IR on) |
|---|
| Max Aperture | F1.4 Environmental |
|---|
| Angle of View | H: 99°~37° -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual |
|---|
| 儲存環境 | 30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 300mm |
|---|
| Close Focus Distance | Ingress Protection & Vandal 11.81'' IP67 Resistance |
|---|
| DORI Distance | Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Dimensions 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.59kg (1.30lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.72kg (1.59lb) |
|---|
| Definition | Wide Tele 25px/m |
|---|
| Detect | 47m(154ft) 129m(422ft) (8px/ft) 63px/m |
|---|
| Observe | 19m(61ft) 51m(169ft) (19px/ft) 125px/m |
|---|
| Recognize | 9m(31ft) 26m(84ft) (38px/ft) 250px/m |
|---|
| Identify | 5m(15ft) 13m(42ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW2221RP-Z- 2MP WDR HDCVI IR Bullet Camera, PAL IRE6-DP 2MP Camera DH-HAC-HFW2221RN-Z- 2MP WDR HDCVI IR Bullet Camera, NTSC IRE6-DP Junction box (For use alone or with PFA130-E PFA152-E pole mount) Pole mount (For use with PFA130-E PFA152-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun Accessories |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM809-4MP | 16 channel Passive HDCVI Balun Receiver |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

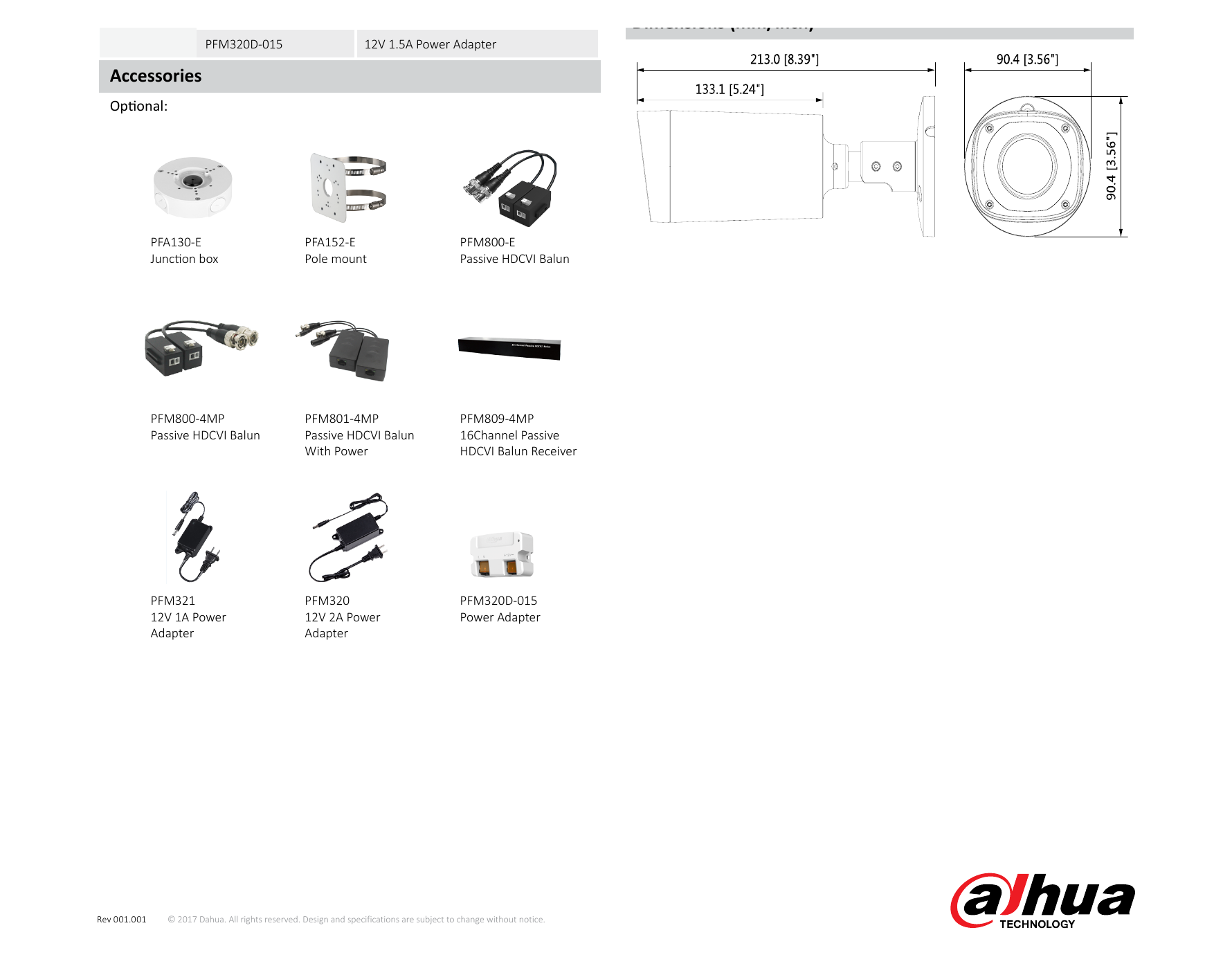

| PFM321 | 12V 1A Power Adapter Dimensions (mm/inch) |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun 16Channel Passive |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
