| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1937(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1/3s~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 60m (197feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 4 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm Power Supply POC/12V DC ±25% |
|---|
| Max Aperture | F1.3 Power Consumption Max 6.8W (12V DC, IR on) |
|---|
| Angle of View | H: 102°~29° Environmental |
|---|
| Focus Control | Auto / Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH 7.87'' |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 Resistance *Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

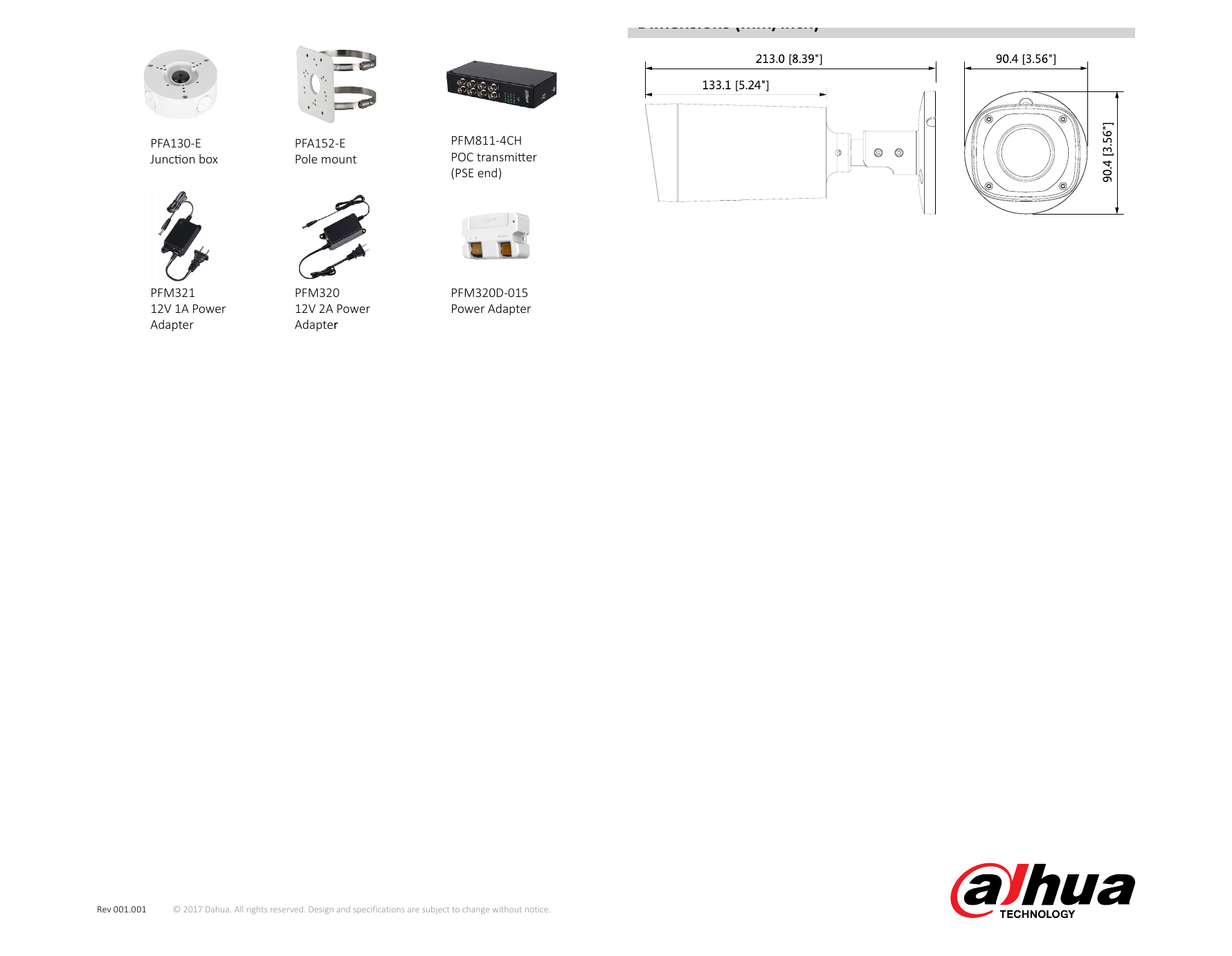

| 尺寸 | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
|---|
| DORI 偵測距離 | Distance |
|---|
| Definition | Net Weight 0.63kg (1.39lb) |
|---|
| Wide | Tele 25px/m Gross Weight 0.76kg (1.68lb) |
|---|
| Detect | 47m(153ft) 153m(502ft) (8px/ft) 63px/m |
|---|
| Observe | 19m(61ft) 61m(201ft) (19px/ft) 125px/m |
|---|
| Recognize | 9m(31ft) 31m(100ft) (38px/ft) 250px/m |
|---|
| Identify | 5m(15ft) 15m(50ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description |
|---|

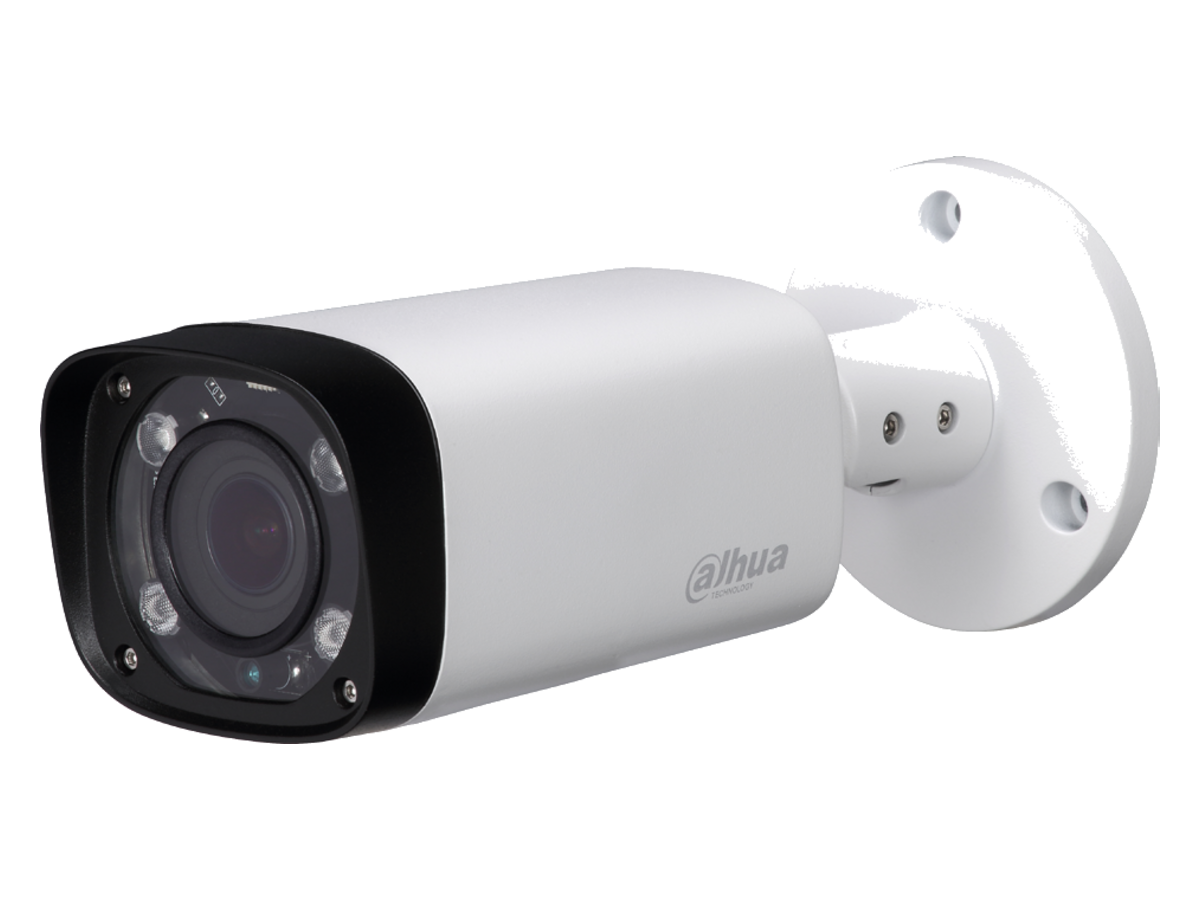

| DH-HAC-HFW2231RP-Z-IRE6- | 2MP Starlight HDCVI PoC IR Bullet |
|---|
| POC 2.7~13.5mm | Camera, PAL 2MP Camera |
|---|
| DH-HAC-HFW2231RN-Z-IRE6- | 2MP Starlight HDCVI PoC IR Bullet |
|---|
| PFM811-4CH | POC transmitter (PSE end) |
|---|
| PFM321 | 12V 1A power adapter |
|---|
| PFM320 | 12V 2A power adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount POC transmitter (PSE end) |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
