| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 80m (262feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| 供電 | POC/12V DC ±30% |
|---|
| Mount Type | Board-in |
|---|
| 功耗 | Max. 10.2W (12V DC, IR on) |
|---|
| 焦距 | 2.7-13.5mm |
|---|
| 電源輸出 | 12V DC, Max.2W |
|---|
| Max Aperture | F1.6 |
|---|
| Angle of View | H: 108.7°~28.7° Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | Auto / Manual * -30°C ~ +45°C (-22°F ~ +113°F) With 2W power Operating Conditions output. 200mm * Start up should be done at above -30°C (-22°F) Close Focus Distance 7.87'' |
|---|
| 儲存環境 | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Casing Aluminium |
|---|
| DORI 偵測距離 | Distance Dimensions 244.1mm×90.4mm×90.4mm (9.61"×3.56"×3.56") |
|---|
| Definition | Wide Tele Net Weight 0.79kg (1.74lb) |
|---|
| Detect | 25px/m (8px/ft) 44m(144ft) 153m(502ft) Gross Weight 1.04kg (2.29lb) |
|---|
| Observe | 63px/m (19px/ft) 18m(59ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 4m(13ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HFW2241TP-Z- | 2MP Starlight HDCVI POC IR Bullet |
|---|
| POC 2.7~13.5mm | Camera, PAL 2MP Camera |
|---|
| DH-HAC-HFW2241TN-Z- | 2MP Starlight HDCVI POC IR Bullet |
|---|
| Accessories | PFA130-E junction box) PFA130-E + PFA151 |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFW320D-015 | 12V 1.5A Power Adapter |
|---|

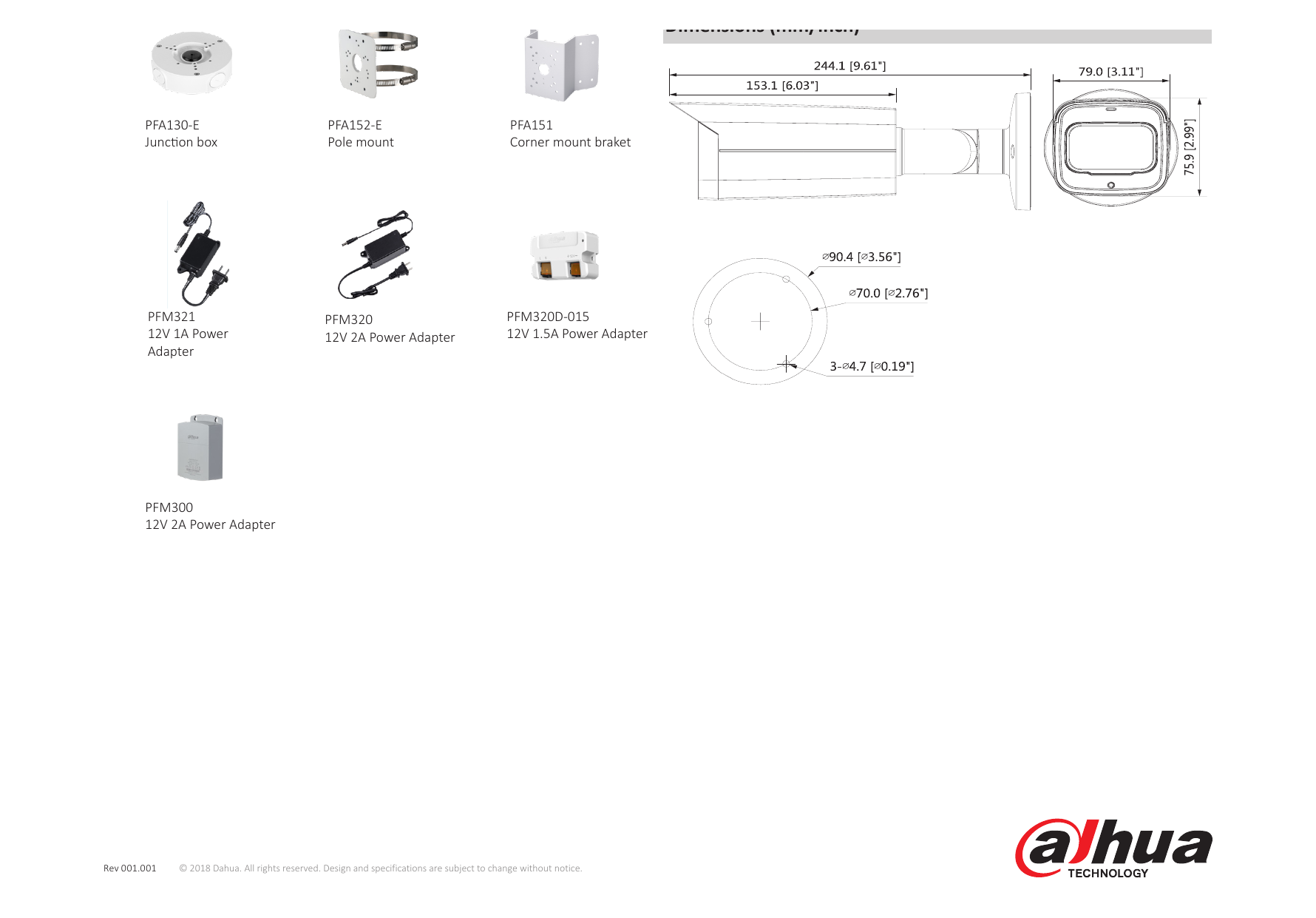

| PFM300 | 12V 2A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount Corner mount braket |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
