| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/3" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 2688(H)×1520(V), 4.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100,000s | Noise Reduction 2D/3D Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.01Lux/F1.5, 0Lux IR on, 30IRE |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 80m (262feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 2 |
|---|
| 鏡頭 | Audio Interface N/A |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in |
|---|
| 供電 | 12V DC ±25% |
|---|
| 焦距 | 3.6mm (6mm, 8mm Optional) |
|---|
| 功耗 | Max 6W (12V DC, IR on) |
|---|
| Max Aperture | F1.5 Environmental |
|---|
| Angle of View | H: 79° (48.6°/32.9°) -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | N/A |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 1500mm (1700mm, 4000mm) Close Focus Distance 59.06'' (66.93'', 157.48'') Ingress Protection & Vandal IP67 Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification a |
|---|
| 淨重 | 0.64kg (1.41lb) Distance |
|---|
| Definition | Gross Weight 0.77kg (1.70lb) 3.6mm: 80m(262ft) |
|---|
| Detect | 25px/m (8px/ft) 6mm:120m(394ft) 8mm:161m(527ft) 3.6mm: 32m(105ft) |
|---|
| Observe | 63px/m (19px/ft) 6mm:48m(157ft) 8mm:64m(211ft) 3.6mm: 16m(52ft) |
|---|
| Recognize | 125px/m (38px/ft) 6mm: 24m(79ft) 8mm:32m(105ft) 3.6mm: 8m(26ft) |
|---|
| Identify | 250px/m (76px/ft) 6mm: 12m(39ft) 8mm:16m(53ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFB130-E + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW2401DP 3.6mm 4MP HDCVI WDR IR Bullet DH-HAC-HFW2401DP 6mm Camera, PAL DH-HAC-HFW2401DP 8mm 4MP Camera DH-HAC-HFW2401DN 3.6mm 4MP HDCVI WDR IR Bullet DH-HAC-HFW2401DN 6mm Camera, NTSC DH-HAC-HFW2401DN 8mm Junction box (For use alone or PFA130-E with PFA152-E pole mount) Pole mount (For use with PFA152-E PFA130-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun Accessories |
|---|

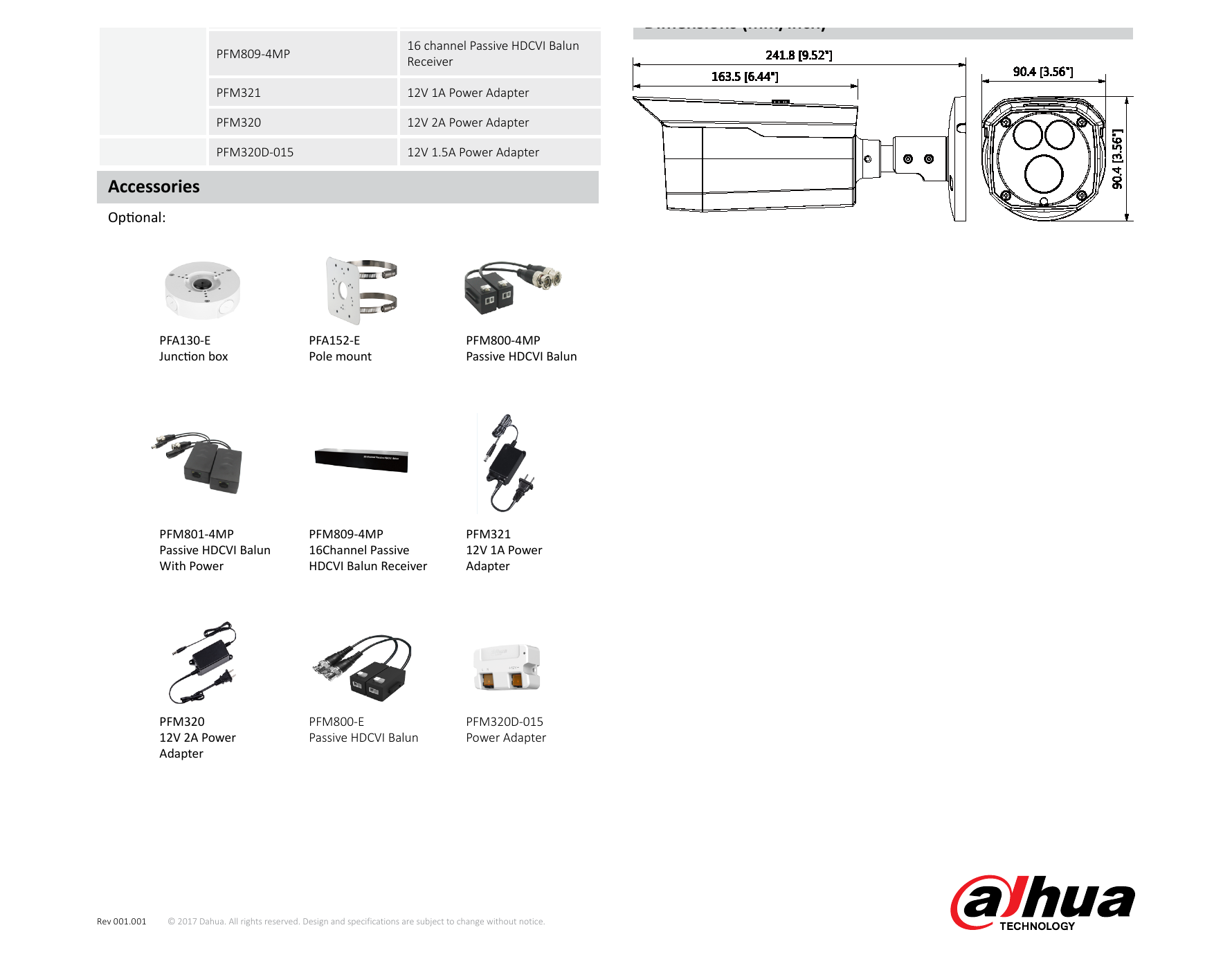

| PFM801-4MP | Passive HDCVI Balun With Power Dimensions (mm/inch) 16 channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| Passive HDCVI Balun | 16Channel Passive 12V 1A Power |
|---|
| With Power | HDCVI Balun Receiver Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
