| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/3" CMOS WDR 120dB |
|---|
| Effective Pixels | 2688(H)×1520(V), 4.1MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.01Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 60m (197feet) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 4 Interface |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply AC 24V±25% / DC 12V±25% |
|---|
| 焦距 | 2.7-13.5mm Power Consumption Max 15.4W (12V DC, IR on) |
|---|
| Max Aperture | F1.3 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 98°~26° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 200mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 7.87'' Resistance |
|---|
| DORI Distance | Construction |
|---|
| Casing | Aluminium Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| 尺寸 | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.63kg (1.39lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 0.76kg (1.68lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 64m(210ft) 222m(728ft) |
|---|
| Observe | 63px/m (19px/ft) 26m(84ft) 89m(291ft) |
|---|
| Recognize | 125px/m (38px/ft) 13m(42ft) 44m(146ft) |
|---|
| Identify | 250px/m (76px/ft) 6m(21ft) 22m(73ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P 1-channel BNC HDCVI high definition video output & Video Output 1-channel BNC CVBS video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| 類型 | Part Number Description PFA130-E PFA130-E + PFA152-E |
|---|

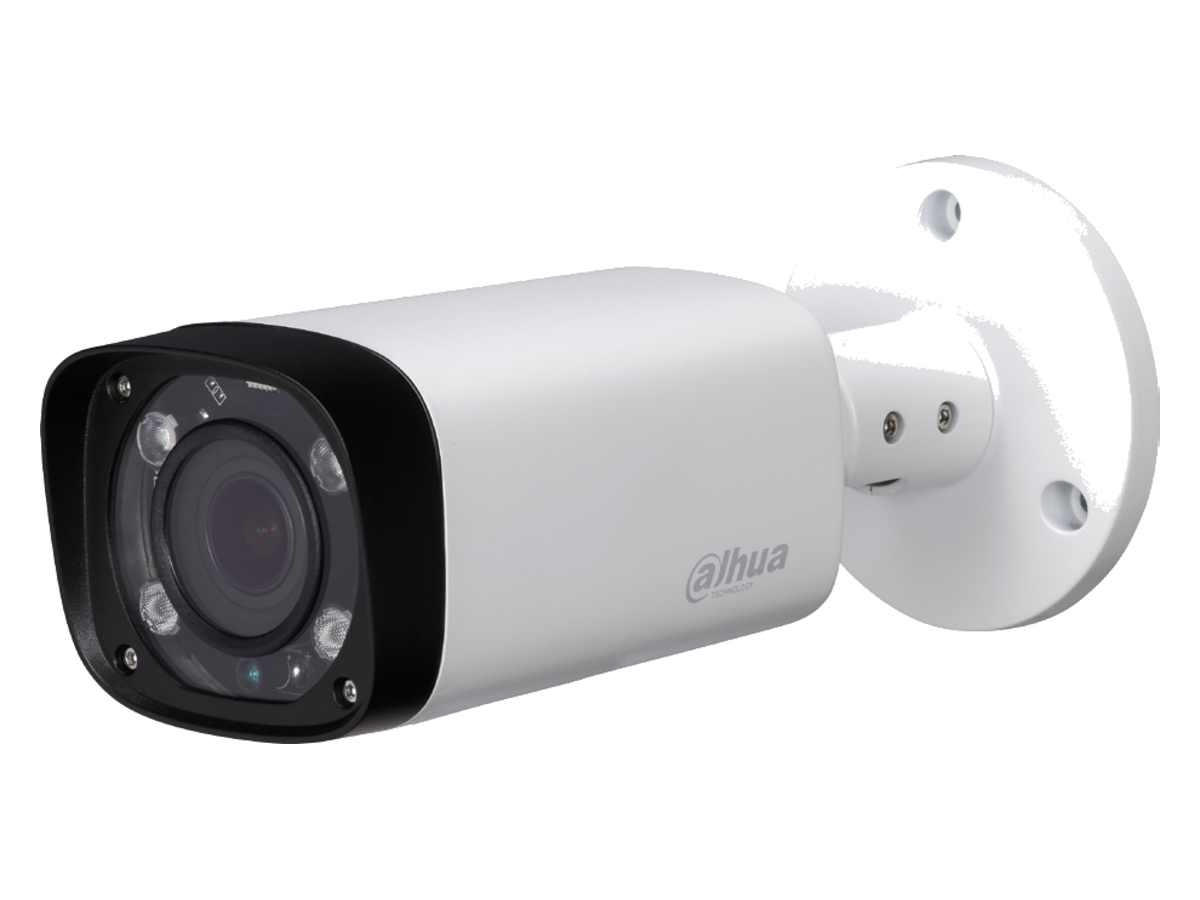

| DH-HAC-HFW2401RP-Z-IRE6-DP | 4MP WDR HDCVI IR Bullet 2.7~13.5mm Camera, PAL 4MP Camera |
|---|
| DH-HAC-HFW2401RN-Z-IRE6- | 4MP WDR HDCVI IR Bullet |
|---|
| DP 2.7~13.5mm | Camera, NTSC Junction box (For use alone or PFA130-E with PFA152-E pole mount) Pole mount (For use with PFA152-E PFA130-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun Accessories |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power 16 channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

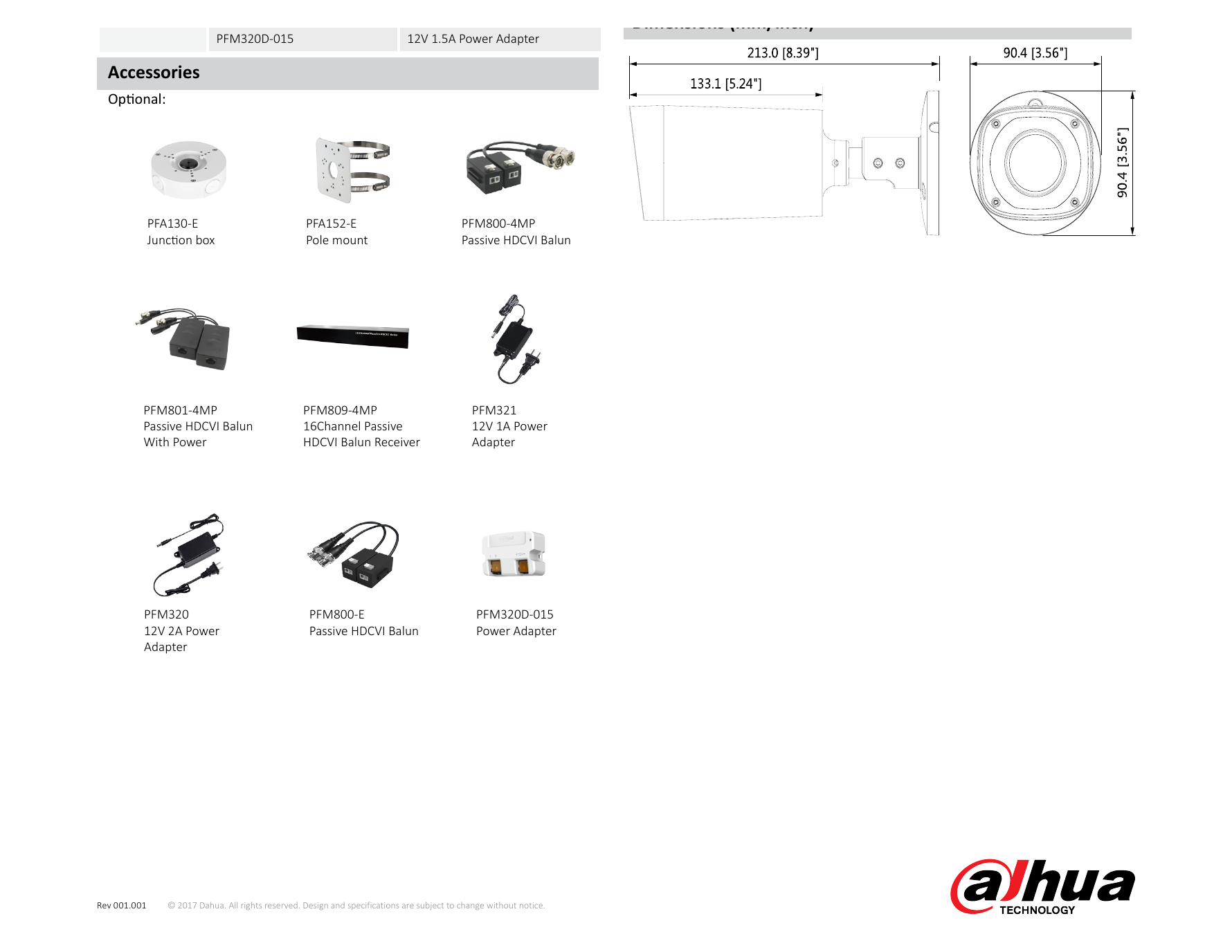

| PFM321 | 12V 1A Power Adapter Dimensions (mm/inch) |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| PFA130-E | PFA152-E PFM800-4MP |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| Passive HDCVI Balun | 16Channel Passive 12V 1A Power |
|---|
| With Power | HDCVI Balun Receiver Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
