| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/1.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 2560(H)×1440(V), 4MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/25s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.002Lux/F1.9, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 80m (262feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | 1ch in & Built-in Mic |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| 供電 | AC 24V±30% / DC 12V±30% |
|---|
| Mount Type | Board-in |
|---|
| 電源輸出 | DC 12V / Max. 2W |
|---|
| 焦距 | 3.7-11mm |
|---|
| 功耗 | Max 13.5W (12V DC, IR on) |
|---|
| Max Aperture | F1.9 |
|---|
| H: 114.3°~47.2° | Environmental Angle of View V: 61.7°~26.8° -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH Operating Conditions |
|---|
| Focus Control | Auto / Manual * Start up should be done at above -30°C (-22°F) 1500mm Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH Close Focus Distance 59.06" Ingress Protection & Vandal IP67 Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated base |
|---|
| DORI 偵測距離 | Distance Net Weight 0.80kg (1.76lb) |
|---|
| Definition | Wide Tele Gross Weight 1.05kg (2.31lb) |
|---|
| Detect | 25px/m (8px/ft) 58m(189ft) 131m(429ft) |
|---|
| Observe | 63px/m (19px/ft) 23m(75ft) 52m(172ft) |
|---|
| Recognize | 125px/m (38px/ft) 12m(38ft) 26m(86ft) |
|---|
| Identify | 250px/m (76px/ft) 6m(19ft) 13m(43ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 4MP (2560×1440) |
|---|
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description |
|---|

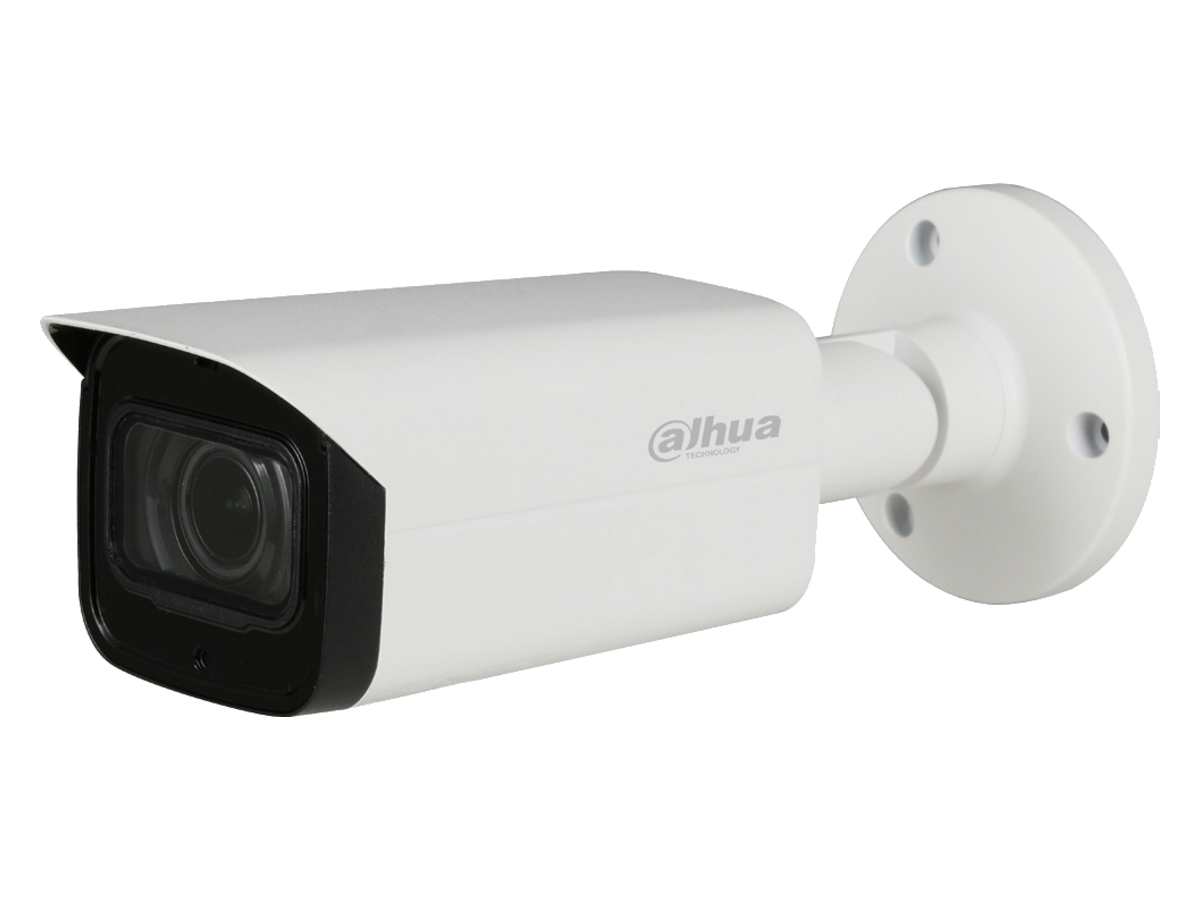

| DH-HAC-HFW2402TP-Z-A-DP | 4MP Starlight HDCVI IR Bullet Camera, 3.7~11mm PAL 4MP Camera |
|---|
| DH-HAC-HFW2402TN-Z-A-DP | 4MP Starlight HDCVI IR Bullet Camera, 3.7~11mm NTSC Junction box (For use alone or with PFA130-E PFA152-E pole mount) Pole mount (For use with PFA130-E PFA152-E junction box) PFA151 |
|---|
| Corner mount braket (For use with | Corner Mount PFA130-E junction box) |
|---|
| Accessories | PFA130-E + PFA151 |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

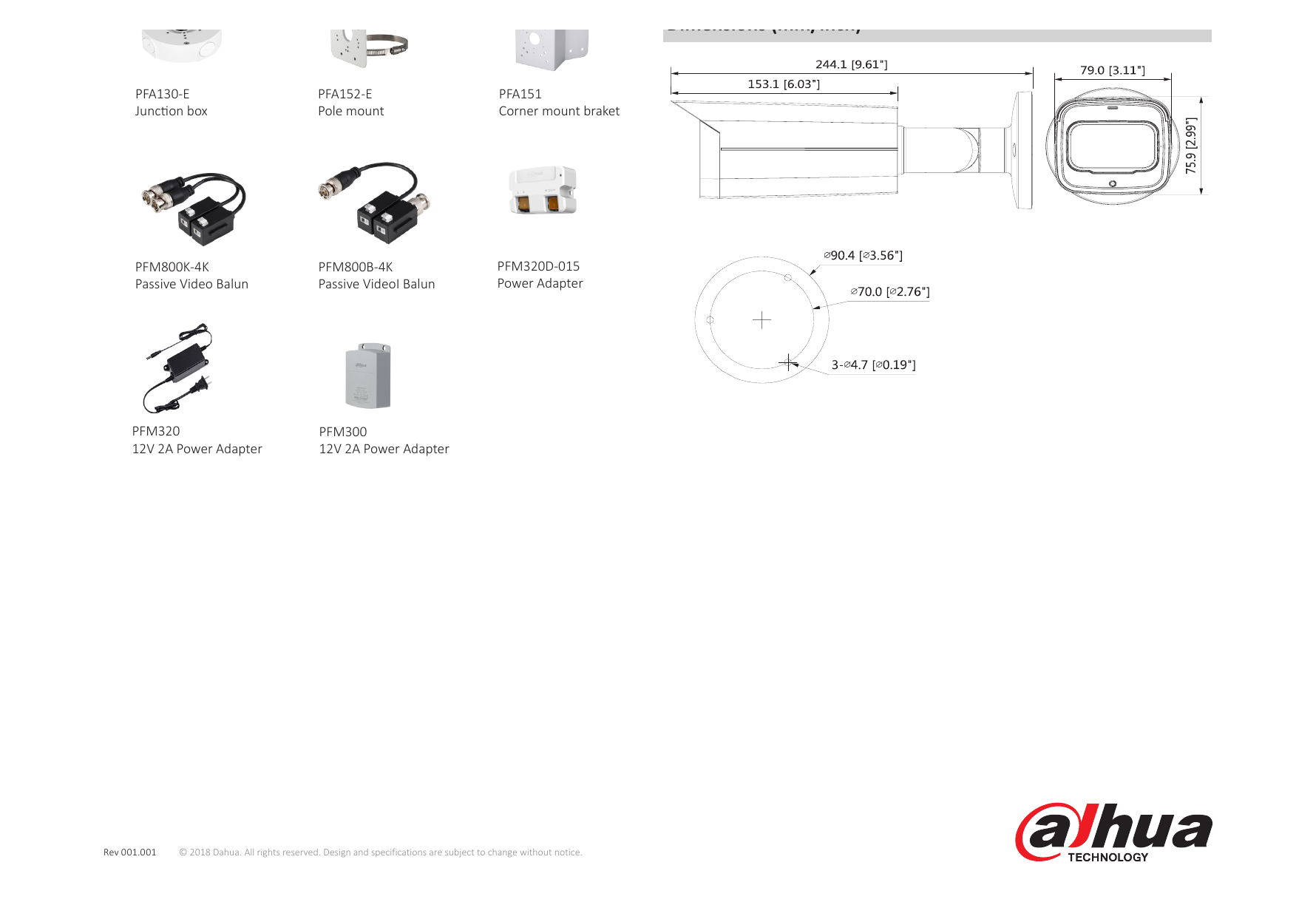

| PFM300 | 12V 2A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount Corner mount braket |
|---|
| PFM800K-4K | PFM800B-4K PFM320D-015 |
|---|
| Passive Video Balun | Passive VideoI Balun Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
