| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100,000s | Noise Reduction 2D/3D Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 80m (262feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | 1ch in & Built-in Mic |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in |
|---|
| 供電 | 12V DC ±30% |
|---|
| 焦距 | 3.6mm (6mm, 8mm Optional) |
|---|
| 功耗 | Max. 10W (12V DC, IR on) |
|---|
| Max Aperture | F1.6 Environmental |
|---|
| Angle of View | H: 79° (49.5°/38°) -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| Focus Control | N/A |
|---|
| 儲存環境 | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH 1300mm (3000mm, 4400mm ) Close Focus Distance 51.2'' (118", 173") Ingress Protection & Vandal IP67 Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab |
|---|
| 尺寸 | 244.1mm×90.4mm×90.4mm (9.61"×3.5"×23.5") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

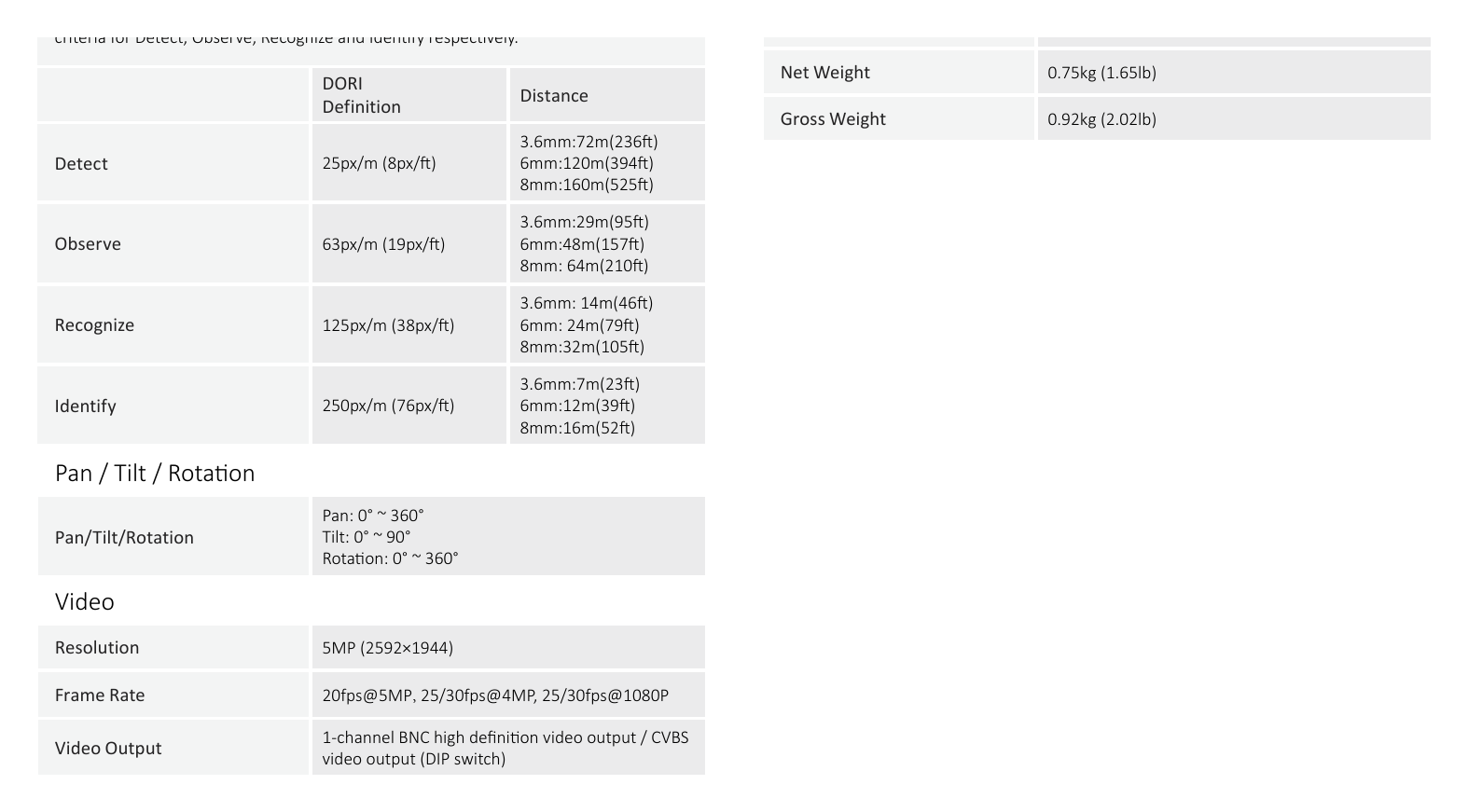

| 淨重 | 0.75kg (1.65lb) Distance Definition |
|---|
| 毛重 | 0.92kg (2.02lb) 3.6mm:72m(236ft) |
|---|
| Detect | 25px/m (8px/ft) 6mm:120m(394ft) 8mm:160m(525ft) 3.6mm:29m(95ft) |
|---|
| Observe | 63px/m (19px/ft) 6mm:48m(157ft) 8mm: 64m(210ft) 3.6mm: 14m(46ft) |
|---|
| Recognize | 125px/m (38px/ft) 6mm: 24m(79ft) 8mm:32m(105ft) 3.6mm:7m(23ft) |
|---|
| Identify | 250px/m (76px/ft) 6mm:12m(39ft) 8mm:16m(52ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW2501TP-I8-A 3.6mm 5MP Starlight HDCVI IR Bullet DH-HAC-HFW2501TP-I8-A 6mm Camera, PAL DH-HAC-HFW2501TP-I8-A 8mm 5MP Camera DH-HAC-HFW2501TN-I8-A 3.6mm 5MP Starlight HDCVI IR Bullet DH-HAC-HFW2501TN-I8-A 6mm Camera, NTSC DH-HAC-HFW2501TN-I8-A 8mm |
|---|
| Junction box (For use alone or | Corner Mount |
|---|
| PFA151 corner mount) | PFA130-E + PFA151 Pole mount (For use with PFA152-E PFA130-E junction box) Corner mount (For use with PFA151 PFA130-E junction box) Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| Accessories | Dimensions (mm/inch) Optional: |
|---|
| Junction box | Pole mount Corner mount |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter 12V 2A Power Adapter PFM300 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
