| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1945(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 100m (328feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 4 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Auto iris Audio Interface 1-channel audio in |
|---|
| Mount Type | Board-in Alarm Interface 1-channel alarm in & 1-channel alarm out |
|---|
| 焦距 | 5.3-64mm Eelectrical |
|---|
| Max Aperture | F1.6 Power Supply AC 24V±25% / DC 12V±25% |
|---|
| Angle of View | H: 58°~5° Power Consumption Max 15.6W (12V DC, IR on) |
|---|
| Focus Control | Auto / Manual Environmental 1500mm -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Close Focus Distance | Operating Conditions 59.06'' * Start up should be done at above -30°C (-22°F) |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH DORI Distance Ingress Protection & Vandal IP67 & IK10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Resistance pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Construction criteria for Detect, O |
|---|
| Casing | Aluminium |
|---|
| DORI 偵測距離 | Distance |
|---|
| 尺寸 | 273.2mm×95.0mm×95.0mm (10.76"×3.74"×3.74") |
|---|

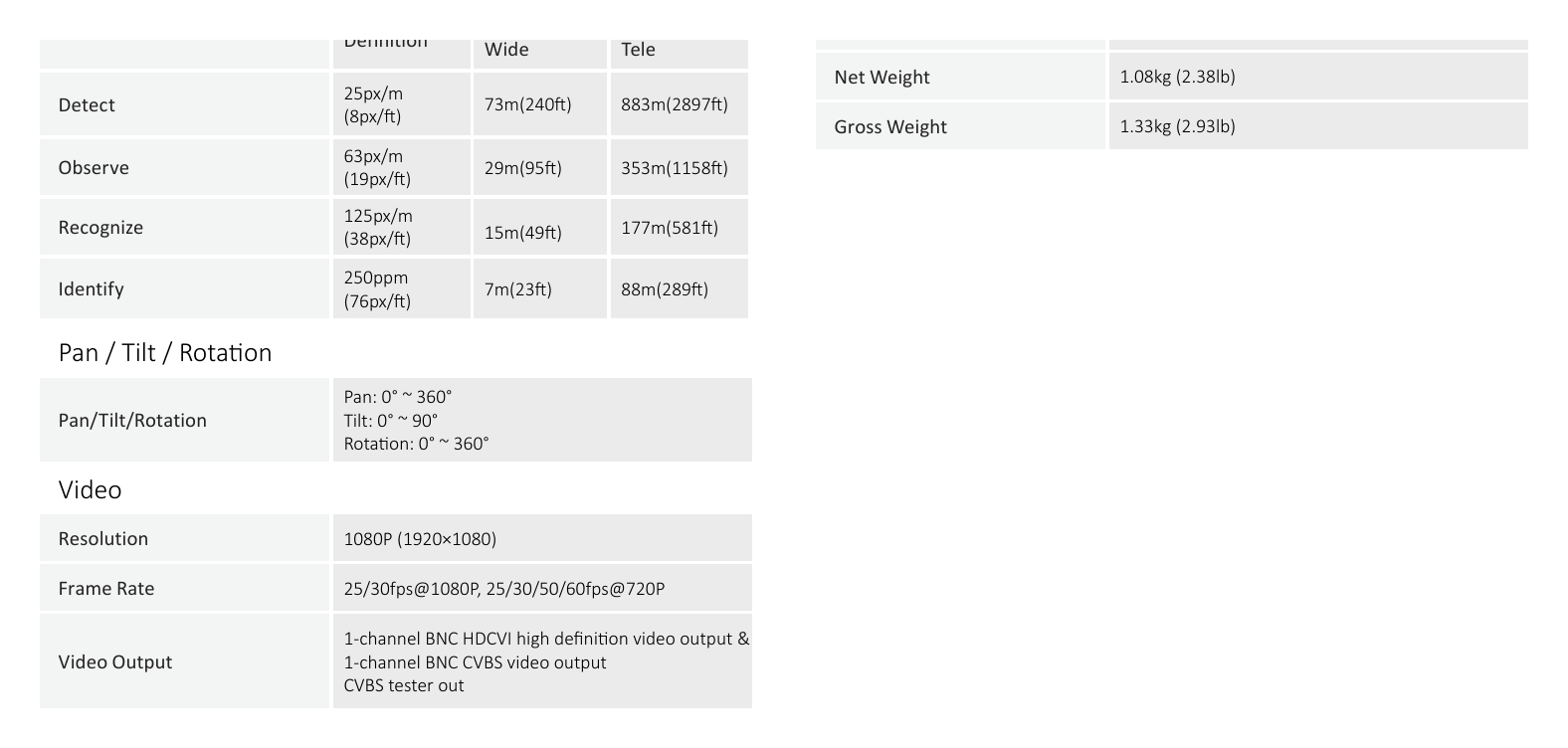

| Definition | Wide Tele |
|---|
| 淨重 | 1.08kg (2.38lb) 25px/m |
|---|
| Detect | 73m(240ft) 883m(2897ft) (8px/ft) |
|---|
| 毛重 | 1.33kg (2.93lb) 63px/m |
|---|
| Observe | 29m(95ft) 353m(1158ft) (19px/ft) 125px/m |
|---|
| Recognize | 15m(49ft) 177m(581ft) (38px/ft) 250ppm |
|---|
| Identify | 7m(23ft) 88m(289ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & |
|---|
| Video Output | 1-channel BNC CVBS video output CVBS tester out www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| 類型 | Part Number Description PFA121 PFB121 + PFA152-E 2MP Starlight HDCVI IR Bullet DH-HAC-HFW3231EP-Z 5.3-64mm Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Bullet DH-HAC-HFW3231EN-Z 5.3-64mm Camera, NTSC Junction box (For use alone or PFA121 with PFA152-E pole mount) Pole mount (For use with PFA121 PFA152-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| Accessories | PFM800-4MP Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power 16 Channel Passive HDCVI Balun PFM809-4MP Receiver |
|---|
| FM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories |
|---|
| Optional: | Dimensions (mm/inch) |
|---|
| PFA121 | PFA152-E PFM800-E |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| PFM800-4MP | PFM801 -4MP PFM809-4MP |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun 16 Channel Passive |
|---|
| with Power | HDCVI Balun |
|---|
| PFM320 | PFM320D-015 12V 2A Power Adapter Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
