| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1945(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.4, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 100m (328feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | 1-channel audio in |
|---|
| 鏡頭類型 | Motorized lens / Auto iris |
|---|
| Alarm Interface | 1-channel alarm in & 1-channel alarm out |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.7-12mm Eelectrical |
|---|
| 供電 | AC 24V±25% / DC 12V±25% |
|---|
| Max Aperture | F1.4 |
|---|
| 功耗 | Max 16.6W (12V DC, IR on) |
|---|
| Angle of View | H: 95°~36° |
|---|
| Focus Control | Auto / Manual Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 300mm Operating Conditions |
|---|
| Close Focus Distance | * Start up should be done at above -30°C (-22°F) 11.81'' |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH DORI Distance Ingress Protection & Vandal IP67 & IK10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Resistance pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Construction criteria for Detect, O |
|---|
| Casing | Aluminium |
|---|
| DORI 偵測距離 | Distance |
|---|
| 尺寸 | 273.2mm×95.0mm×95.0mm (10.76"×3.74"×3.74") |
|---|
| Definition | Wide Tele |
|---|
| 淨重 | 1.16kg (2.56lb) |
|---|
| Detect | 25px/m (8px/ft) 48m(159ft) 133m(437ft) |
|---|
| 毛重 | 1.52kg (3.35lb) |
|---|
| Observe | 63px/m (19px/ft) 19m(64ft) 53m(175ft) |
|---|
| Recognize | 125px/m (38px/ft) 10m(32ft) 27m(87ft) |
|---|
| Identify | 250ppm (76px/ft) 5m(17ft) 13m(44ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & |
|---|
| Video Output | 1-channel BNC CVBS video output & 1-channel BNC SDI video output , CVBS tester out www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA121 | PFB121 + PFA152-E |
|---|
| 類型 | Part Number Description 2MP Starlight HDCVI IR Bullet DH-HAC-HFW3231EP-ZT 2.7~12mm Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Bullet DH-HAC-HFW3231EN-ZT 2.7~12mm Camera, NTSC Junction box (For use alone or PFA121 with PFA152-E pole mount) Pole mount (For use with PFA152-E PFA121 junction box) Accessories |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| FM320 | 12V 2A Power Adapter |
|---|

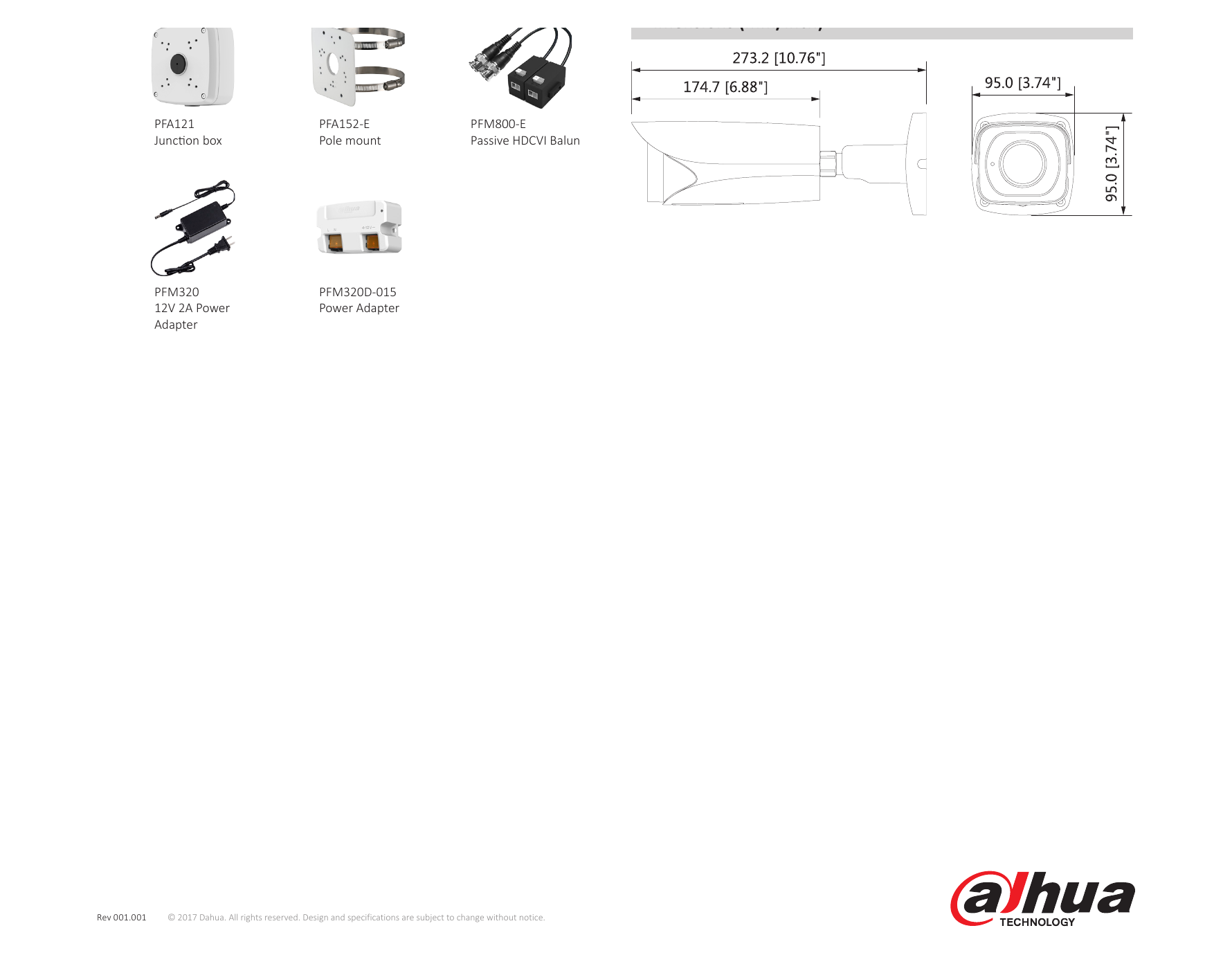

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| PFM320 | PFM320D-015 12V 2A Power Power Adapter Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
