| Camera | WDR DWDR |
|---|
| 影像感測器 | 1/3" CMOS Gain Control AGC |
|---|
| Effective Pixels | 1280(H)×720(V), 1MP Noise Reduction 2D |
|---|
| Scanning System | Progressive White Balance Auto / Manual |
|---|
| PAL: 1/25~1/100000s | Smart IR Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Mirror | Horrizontal mirror (default) |
|---|
| Minimum Illumination | 0.05Lux/F2.2, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 20m (66feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR On/Off Control | Auto / Manual EN50155 (EN50121-3-2, IEC61373) |
|---|
| IR LEDs | 1 |
|---|
| Audio Interface | Built-in Mic |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris 1-power |
|---|
| Mount Type | Board-in 2-video ground Aviation Connector Interface 3-power ground |
|---|
| 焦距 | 2.1mm 4-video |
|---|
| Max Aperture | F2.2 Eelectrical |
|---|
| H: 113° | Power Supply 12V DC ±25% Angle of View V: 68° |
|---|
| 功耗 | Max 2.5W (12V DC, IR on) |
|---|
| Focus Control | N/A Environmental 200mm Close Focus Distance 7.87'' -40°C ~ +80°C (-40°F ~ +176°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| DORI Distance | Storage Conditions -40°C ~ +80°C (-40°F ~ +176°F) / Less than 95% RH Note: The DORI distance is a “general proximity” of distance which makes it easy to Ingress Protection & Vandal IP67 pinpoint the right camera for your needs. The DORI distance is calculated based on Resistance sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recogni |
|---|
| DORI 偵測距離 | Casing Aluminium Distance Definition |
|---|

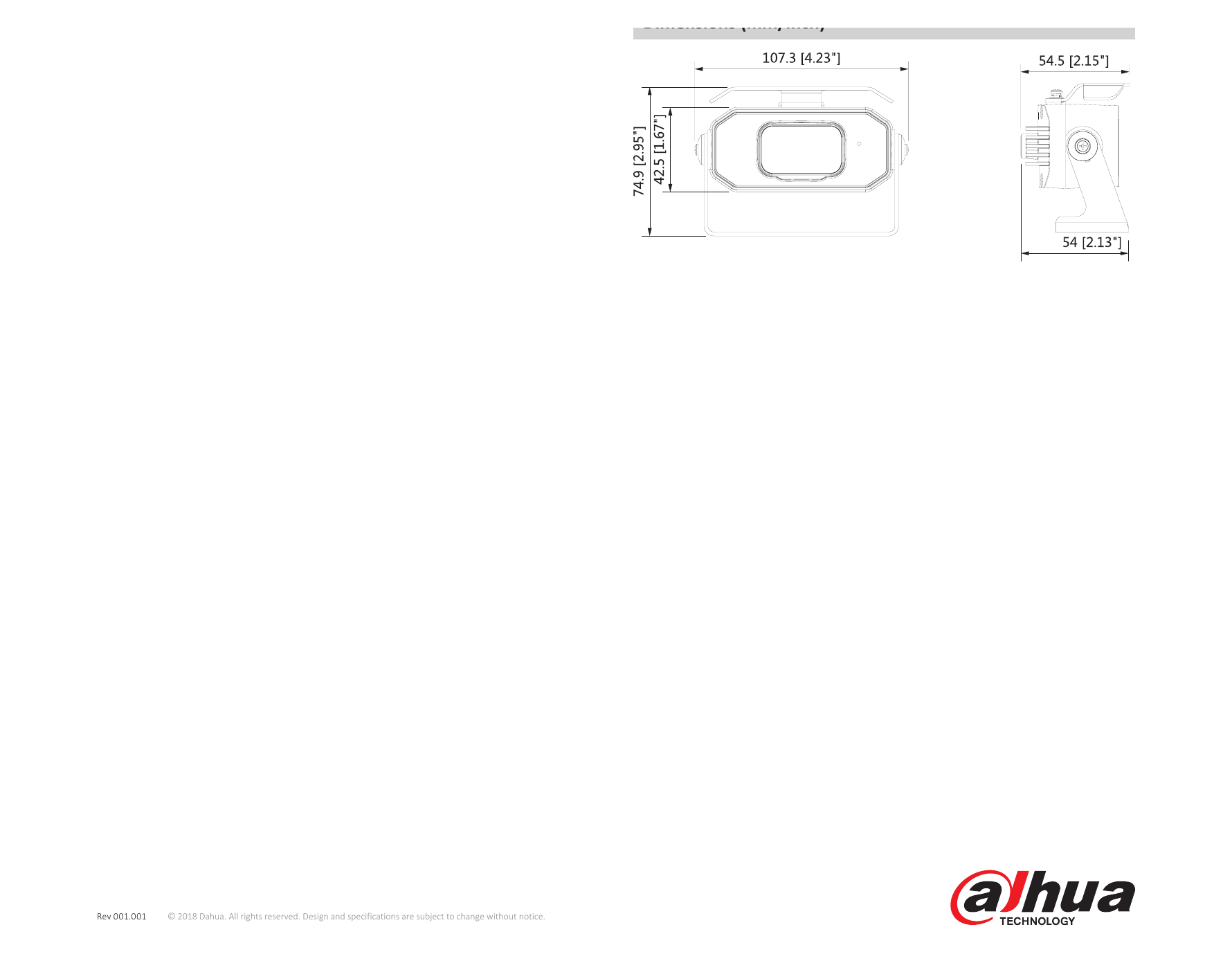

| 尺寸 | 107.3mm×74.9×54.5mm (4.23"×2.95"×2.15") |
|---|
| Detect | 25px/m (8px/ft) 2.1mm: 24m(79ft) |
|---|
| 淨重 | 0.31kg (0.68lb) |
|---|
| Observe | 63px/m (19px/ft) 2.1mm: 10m(32ft) |
|---|
| 毛重 | 0.42kg (0.93lb) |
|---|
| Recognize | 125px/m (38px/ft) 2.1mm: 5m(16ft) |
|---|
| Identify | 250px/m (76px/ft) 2.1mm: 2m(8ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 180° Rotation: N/A |
|---|
| 解像度 | 720P (1280×720) |
|---|
| Frame Rate | 25/30fps@720P 1-channel BNC HDCVI high definition video output Video Output (Aviation connector) |
|---|
| Day/Night | Auto (ICR) / Manual |
|---|
| OSD Menu | Multi-language www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount Plane Mount |
|---|

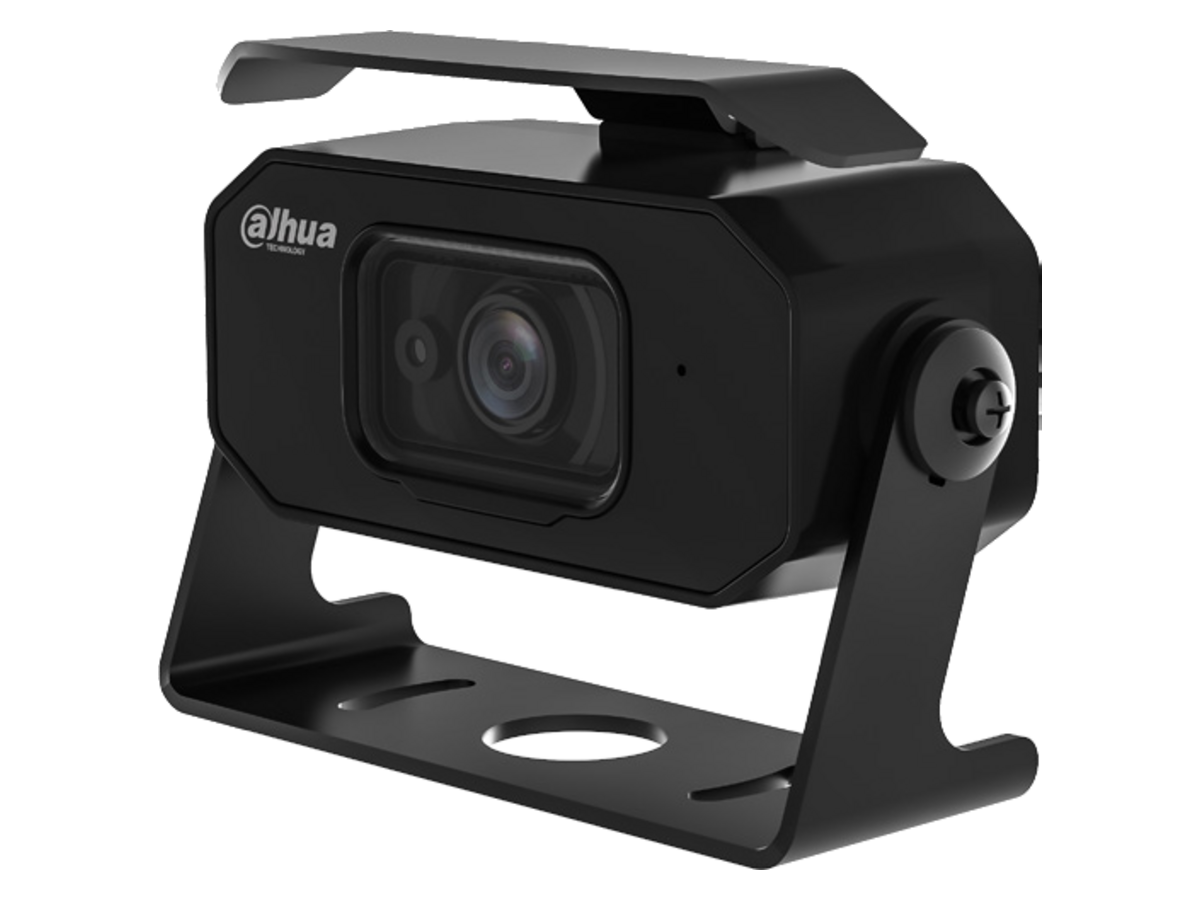

| 類型 | Part Number Description 1MP Mobile HDCVI IR Cube DH-HAC-HMW3100P 2.1mm Camera, PAL 1MP Camera 1MP Mobile HDCVI IR Cube DH-HAC-HMW3100N 2.1mm Camera, NTSC Aviation Connector Dimensions (mm/inch) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
