| Camera | Noise Reduction 2D |
|---|
| 影像感測器 | 1/2.9" CMOS White Balance Auto / Manual |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP PIR |
|---|
| Scanning System | Progressive Detection Passive infrared |
|---|
| PAL: 1/25~1/100000s | Detection Range 12mx12m, 100°, 19zones Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Alarm prompt | Red led, can be set to switch off |
|---|
| Minimum Illumination | 0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W) |
|---|
| 靈敏度 | Two level (jumper) |
|---|
| S/N Ratio | More than 65dB |
|---|
| Pet immunity | ≤18Kg |
|---|
| Resistance light | 6500LUX |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| Installation height | Defualt bracket, wall mount, 2.2-2.5m |
|---|
| Mount Type | Board-in Certifications |
|---|
| 焦距 | 2.8mm CE (EN55032, EN55024, EN50130-4) |
|---|
| Max Aperture | F2.0 Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Angle of View | H: 100.5° |
|---|
| Focus Control | N/A Interface 500mm Audio Interface N/A Close Focus Distance 19.7'' Eelectrical DORI Distance |
|---|
| 供電 | 12V DC ±25% Note: The DORI distance is a “general proximity” of distance which makes it easy to Power Consumption Max 0.7W (12V DC, IR on) pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Environmental criteria for Detect, Observe, Recognize and Identify respectively. -10°C ~ +50°C |
|---|
| Definition | Storage Conditions -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH 25px/m |
|---|
| Detect | 44m(143ft) Ingress Protection & Vandal (8px/ft) N/A Resistance 63px/m |
|---|
| Observe | 17m(57ft) Construction (19px/ft) 125px/m Casing Plastic |
|---|
| Recognize | 9m(29ft) (38px/ft) 250ppm Dimensions 120mm×62mm×58mm (4.72"×2.44"×2.28") |
|---|
| Identify | 4m(14ft) (76px/ft) |
|---|
| 淨重 | 0.13kg (0.29lb) Pan / Tilt / Rotation |
|---|
| 毛重 | 0.18kg (0.40lb) Pan: 0° ~ 180° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 180° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (Electronic) / Manual |
|---|
| OSD Menu | Multi-language |
|---|
| BLC Mode | BLC / HLC / DWDR |
|---|
| WDR | DWDR www.dahuasecurity.com |
|---|
| Ordering Information | Wall Mount |
|---|
| 類型 | Part Number Description 2MP HDCVI MotionEye Camera, DH-HAC-HUM1220AP-PIR 2.8mm PAL 2MP Camera 2MP HDCVI MotionEye Camera, DH-HAC-HUM1220AN-PIR 2.8mm NTSC |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| Accessories | PFM801-4MP Passive HDCVI Balun with Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

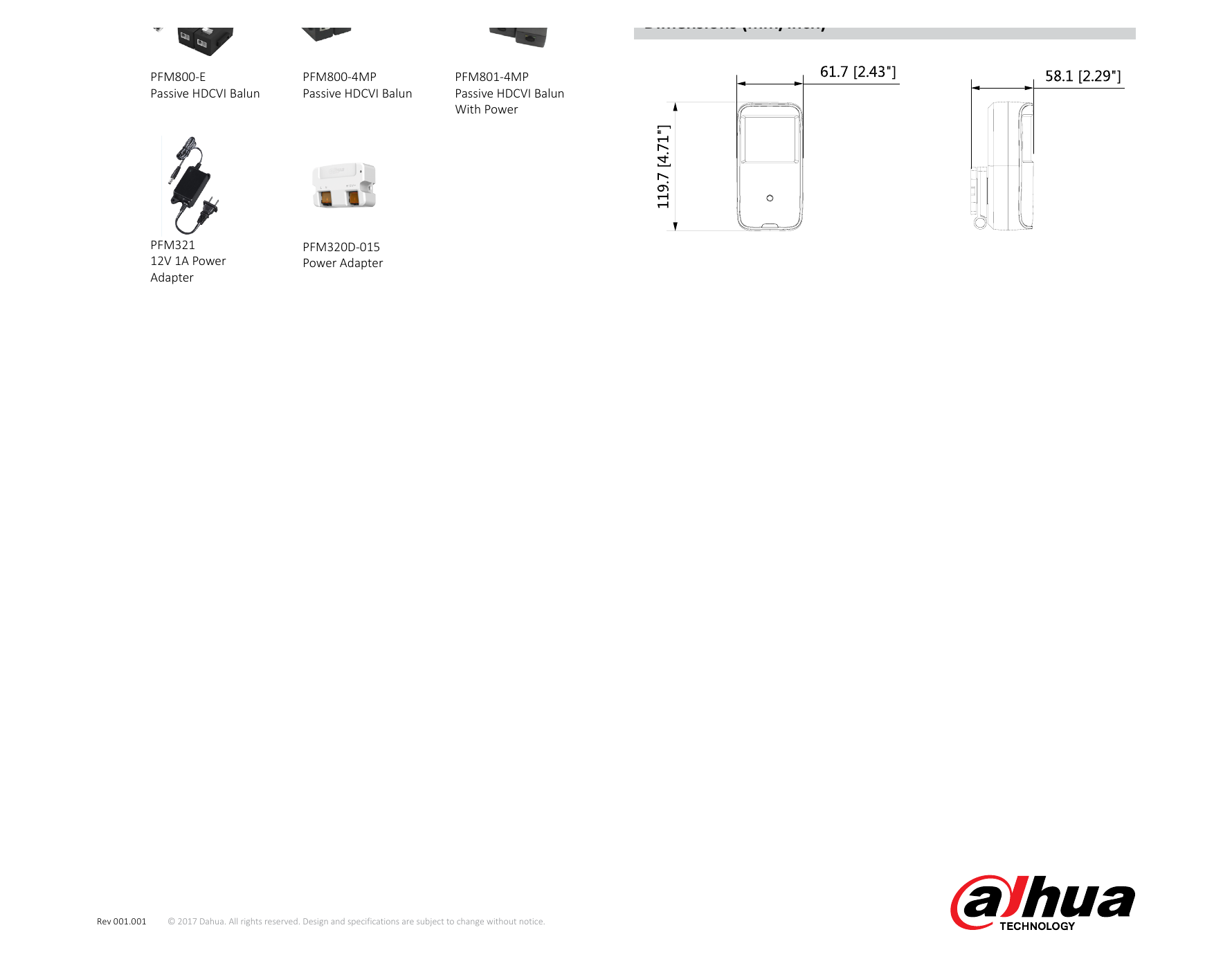

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun With Power |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
