| Camera | White Balance Auto / Manual |
|---|
| 影像感測器 | 1/2.9" CMOS PIR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Detection Passive infrared |
|---|
| Scanning System | Progressive Detection Range 12mx12m, 100°, 19zones |
|---|
| PAL: 1/25~1/100000s | Alarm prompt Red led, can be set to switch off Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| 靈敏度 | Two level (jumper) |
|---|
| Minimum Illumination | 0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W) |
|---|
| Wireless Frequency | 433MHz |
|---|
| S/N Ratio | More than 65dB |
|---|
| Transmit power | 10dBm |
|---|
| Transmit distance | 1km (open area/no interference) |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| Pet immunity | ≤18Kg |
|---|
| Mount Type | Board-in |
|---|
| Resistance light | 6500LUX |
|---|
| 焦距 | 2.8mm |
|---|
| Installation height | Defualt bracket, wall mount, 2.2-2.5m |
|---|
| Max Aperture | F2.0 |
|---|
| Angle of View | H: 100.5° Certifications |
|---|
| Focus Control | N/A CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) 500mm UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Close Focus Distance 19.7'' DORI Distance |
|---|
| Audio Interface | N/A Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Eelectrical sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Power Supply 12V DC ±25% |
|---|
| DORI 偵測距離 | Power Consumption Max 0.7W (12V DC, IR on) Distance Definition Ingress Protection & Vandal N/A 25px/m Resistance |
|---|
| Detect | 44m(143ft) (8px/ft) Environmental 63px/m |
|---|
| Observe | 17m(57ft) (19px/ft) -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH Operating Conditions * Start up should be done at above -10°C (14°F) 125px/m |
|---|
| Recognize | 9m(29ft) (38px/ft) |
|---|
| 儲存環境 | -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH 250ppm |
|---|
| Identify | 4m(14ft) (76px/ft) Construction |
|---|
| Pan / Tilt / Rotation | Casing Plastic |
|---|
| Pan: 0° ~ 180° | Dimensions 120mm×62mm×58mm (4.72"×2.44"×2.28") |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 180° Rotation: 0° ~ 360° |
|---|
| 淨重 | 0.13kg (0.29lb) |
|---|
| Video | Gross Weight 0.18kg (0.40lb) |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (Electronic) / Manual |
|---|
| OSD Menu | Multi-language |
|---|
| BLC Mode | BLC / HLC / DWDR |
|---|
| WDR | DWDR |
|---|
| Gain Control | AGC www.dahuasecurity.com |
|---|
| Ordering Information | Wall Mount |
|---|
| 類型 | Part Number Description 2MP HDCVI MotionEye Camera, DH-HAC-HUM1220AP-W-PIR 2.8mm PAL 2MP |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| Accessories | PFM801-4MP Passive HDCVI Balun with Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

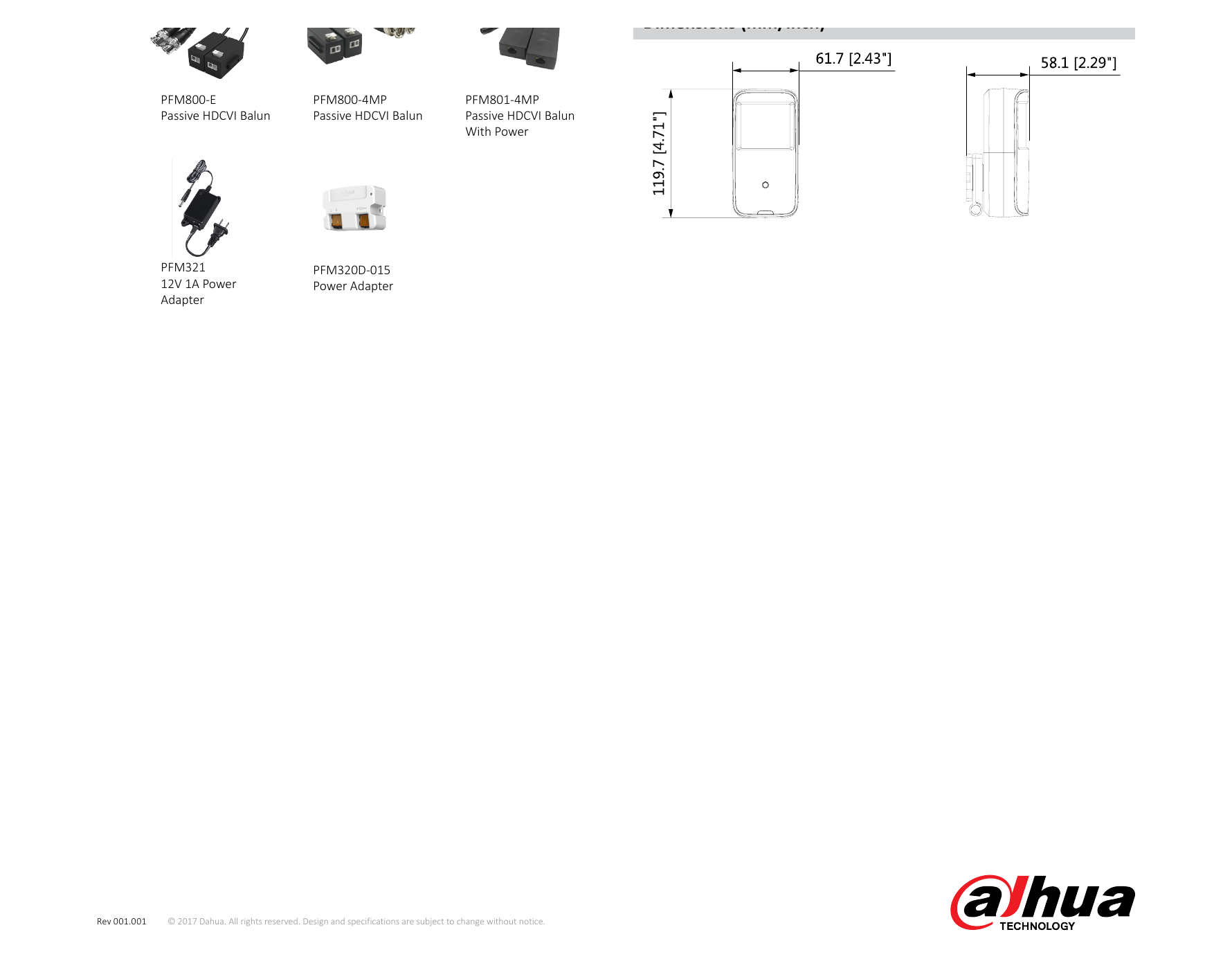

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun With Power |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
