| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.9" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F2.0 (Color), 0.002Lux/F2.0 (B/W) |
|---|
| Smart IR | N/A |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | N/A Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | N/A Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | N/A |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in |
|---|
| 供電 | 12V DC ±25% |
|---|
| 焦距 | 2.8mm |
|---|
| 功耗 | Max 0.6W (12V DC, IR on) |
|---|
| Max Aperture | F2.0 Environmental |
|---|
| Angle of View | H: 100.5° -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions |
|---|
| Focus Control | N/A * Start up should be done at above -40°C (-40°F) 500mm Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Close Focus Distance 19.69'' Ingress Protection & Vandal N/A Resistance DORI Distance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculate |
|---|
| 淨重 | 0.10kg (0.22lb) |
|---|
| Distance | Gross Weight 0.15kg (0.33lb) Definition 25px/m |
|---|
| Detect | 2.8mm: 44m(143ft) (8px/ft) 63px/m |
|---|
| Observe | 2.8mm: 17m(57ft) (19px/ft) 125px/m |
|---|
| Recognize | 2.8mm: 9m(29ft) (38px/ft) 250ppm |
|---|
| Identify | 2.8mm: 4m(14ft) (76px/ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Plane Mount |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HUM1220GP-B-P 2.8mm | 2MP HDCVI Bullet Camera, PAL 2MP Camera |
|---|
| DH-HAC-HUM1220GN-B-P 2.8mm | 2MP HDCVI Bullet Camera, NTSC |
|---|
| PFM820 | UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4K | Passive Video Balun |
|---|
| Accessories | PFM800B-4K Passive Video Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter Accessories Optional: |
|---|

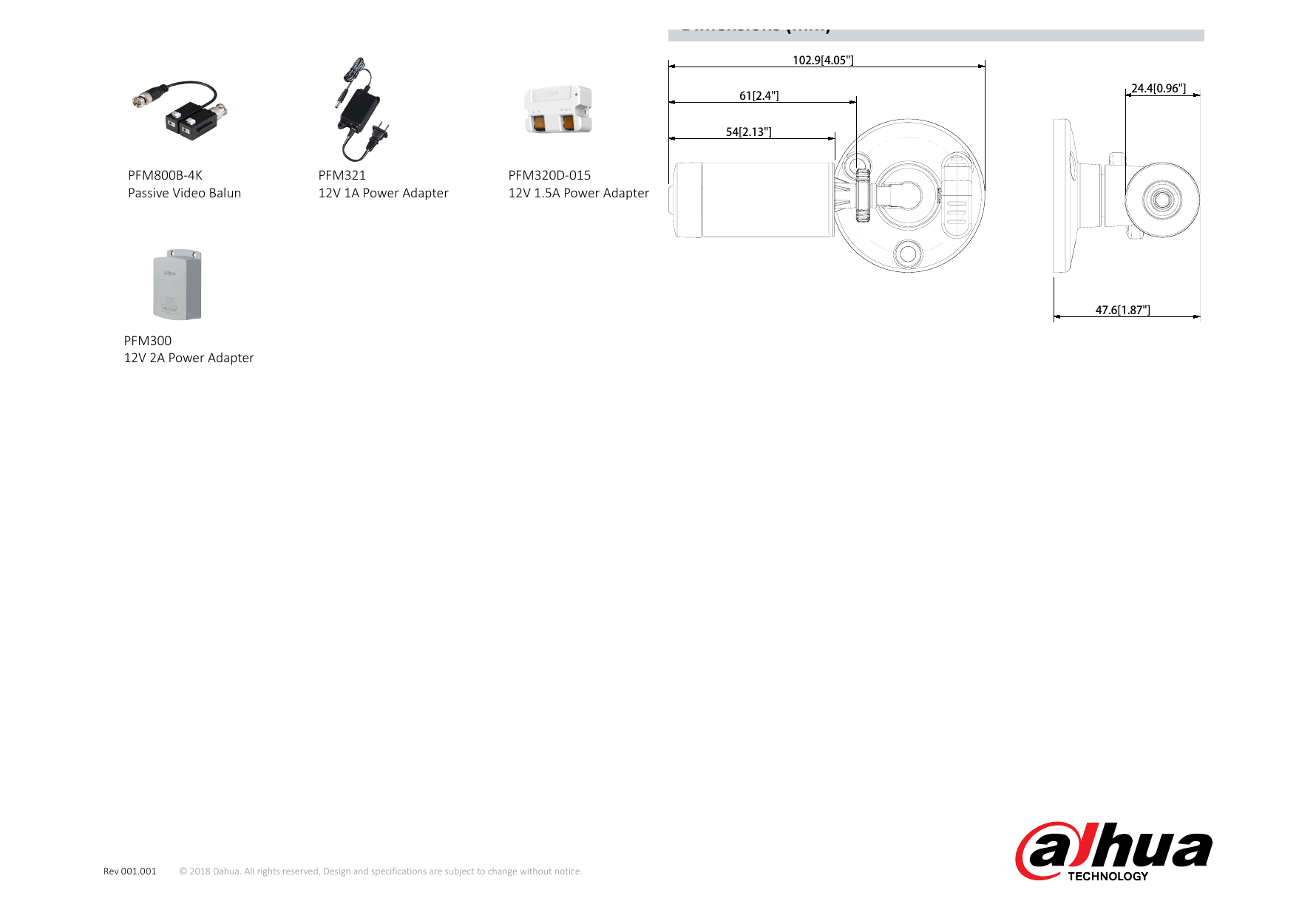

| UTC Controller | Passive HDCVI Balun Passive Video Balun Dimensions (mm) 102.9[4.05"] 24.4[0.96"] 61[2.4"] 54[2.13"] |
|---|
| PFM800B-4K | PFM321 PFM320D-015 |
|---|
| Passive Video Balun | 12V 1A Power Adapter 12V 1.5A Power Adapter 47.6[1.87"] PFM300 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
