| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1937(H)×1097(V), 2MP WDR 140dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100,000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.05Lux/F2.4 (Color), 0.005Lux/F2.4 (B/W), 30IRE |
|---|
| Smart IR | N/A |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | N/A Certifications |
|---|
| IR On/Off Control | N/A CE (EN55032, EN55024, EN50130-4) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | N/A |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm Optional) Power Supply 12V DC ±25% |
|---|
| Max Aperture | F2.4 Power Consumption Max 1.2W (12V DC) |
|---|
| Angle of View | H: 92°(103° ) Environmental |
|---|
| Focus Control | N/A -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) 600mm (500mm) |
|---|
| Close Focus Distance | Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 23.6'' (19.7'') Ingress Protection & Vandal |
|---|
| DORI Distance | Resistance N/A Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | 35.5mm×29.9mm×22.1mm (1.40"×1.18"×0.87") Distance |
|---|
| Definition | Net Weight 0.09kg (0.20lb) 25px/m 2.8mm: 42m(138ft) |
|---|
| Detect | Gross Weight 0.12kg (0.27lb) (8px/ft) 3.6mm: 51m(167ft) 63px/m 2.8mm: 17m(55ft) Observe (19px/ft) 3.6mm: 20m(67ft) 125px/m 2.8mm: 8m(28ft) Recognize (38px/ft) 3.6mm: 10m(33ft) 250ppm 2.8mm: 4m(14ft) Identify (76px/ft) 3.6mm: 5m(17ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 180° Rotation: N/A |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount Plane Mount |
|---|

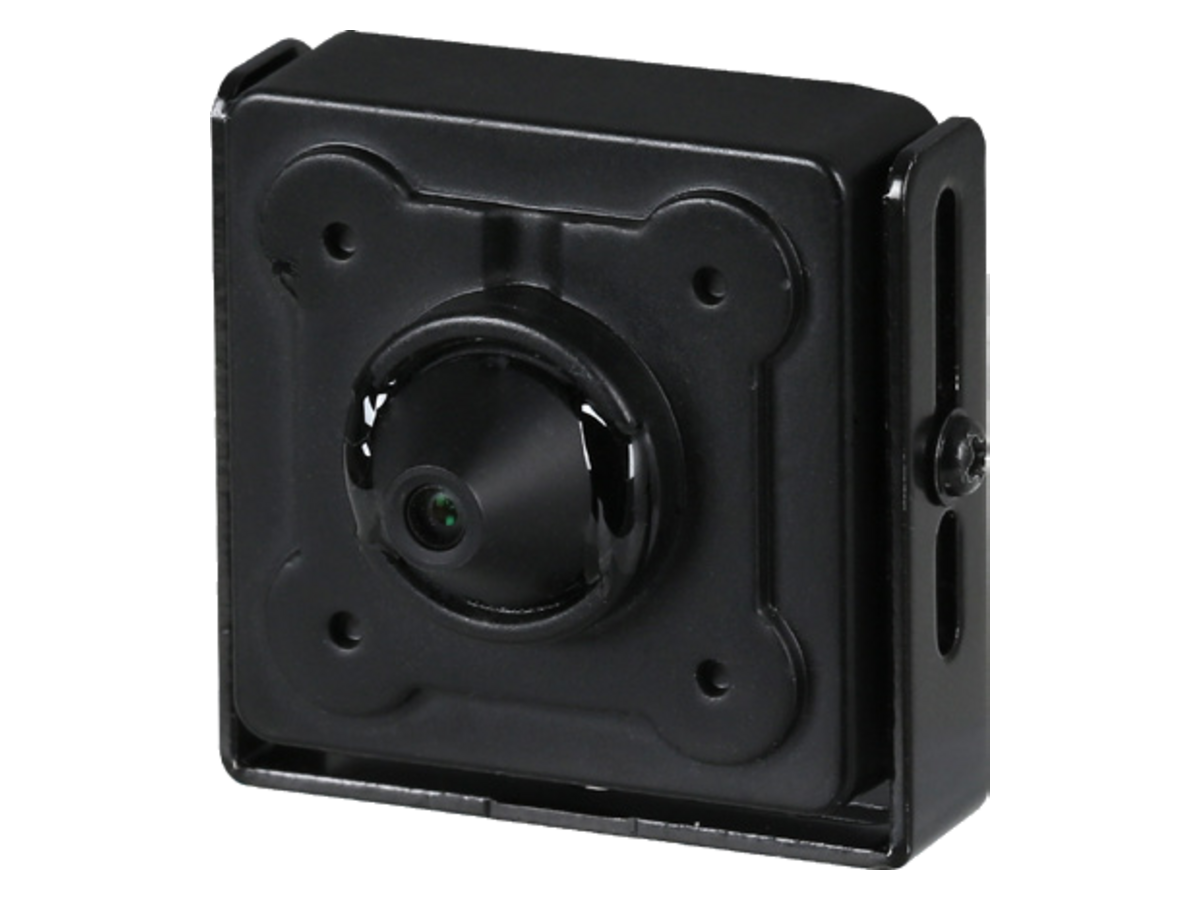

| 類型 | Part Number Description HAC-HUM3201BP-U 2.8mm 2MP Starlight HDCVI Pinhole Camera, PAL HAC-HUM3201BP-U 3.6mm 2MP Camera HAC-HUM3201BN-U 2.8mm 2MP Starlight HDCVI Pinhole Camera, NTSC HAC-HUM3201BN-U 3.6mm |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| Accessories | PFM320D-015 12V 1.5A Power Adapter |
|---|

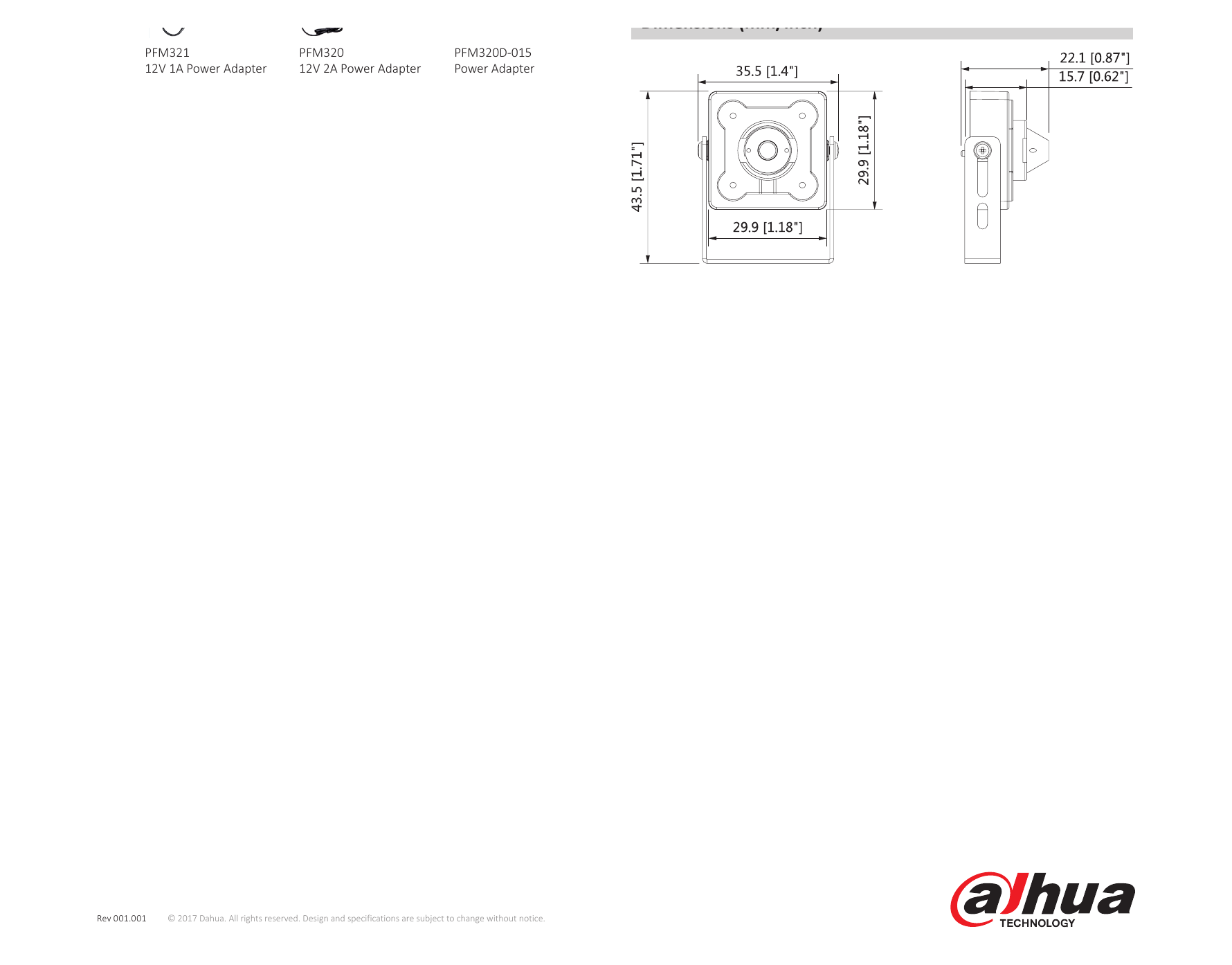

| PFM320 | 12V 2A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
