| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR DWDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D |
|---|
| PAL: 1/25~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB PIR |
|---|
| IR Distance | Up to 20m (66feet) Detection Passive infrared |
|---|
| IR On/Off Control | Auto / Manual Detection Range 10m, 110° |
|---|
| IR LEDs | 1 Alarm Prompt White light |
|---|
| 鏡頭 | White Light Mode Alert/Lighting |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Installation height Defualt bracket, wall mount, 2.2-3m |
|---|
| Mount Type | Board-in Certifications |
|---|
| 焦距 | 2.8mm (3.6mm Optional) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Max Aperture | F2.0 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) H: 99° (77.5°) Angle of View V: 72° (56.5°) |
|---|
| Audio Interface | N/A |
|---|
| Focus Control | N/A 800mm(1400mm) Eelectrical Close Focus Distance 31''(55'') |
|---|
| 供電 | 12V DC ±30% DORI Distance |
|---|
| 功耗 | Max 4.6W (12V DC, IR on) Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Environmental sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. -10°C ~ +50°C (+14°F ~ +122°F) / Less than 9 |
|---|
| Definition | Storage Conditions -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH 25px/m 2.8mm: 56m(184ft) |
|---|
| Detect | Ingress Protection &Vandal (8px/ft) 3.6mm: 80m(262ft) IP67 Resistance 63px/m 2.8mm: 22m(73ft) |
|---|
| Observe | Construction (19px/ft) 3.6mm: 32m(105ft) 125px/m 2.8mm: 11m(37ft) Casing Aluminium (Front cover) + Plastic (Rear Barrel) Recognize (38px/ft) 3.6mm: 16m(52ft) |
|---|
| 尺寸 | 146.6mm×72.4mm×83mm (5.77"×2.85"×3.27") 250ppm 2.8mm: 6m(18ft) Identify (76px/ft) 3.6mm: 8m(26ft) |
|---|
| 淨重 | 0.23kg (0.51lb) |
|---|
| Pan / Tilt / Rotation | Gross Weight 0.30kg (0.66lb) Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFA134 + PFA152-E |
|---|
| 類型 | Part Number Description 5MP HDCVI Active Deterrence DH-HAC-ME1500BP-LED 2.8mm Camera, PAL |
|---|
| DH-HAC-ME1500BN-LED | 5MP HDCVI Active Deterrence 2.8mm Camera, NTSC 5MP Camera 5MP HDCVI Active Deterrence DH-HAC-ME1500BP-LED 3.6mm Camera, PAL |
|---|
| PFM800-E | Passive HDCVI Balun Accessories |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

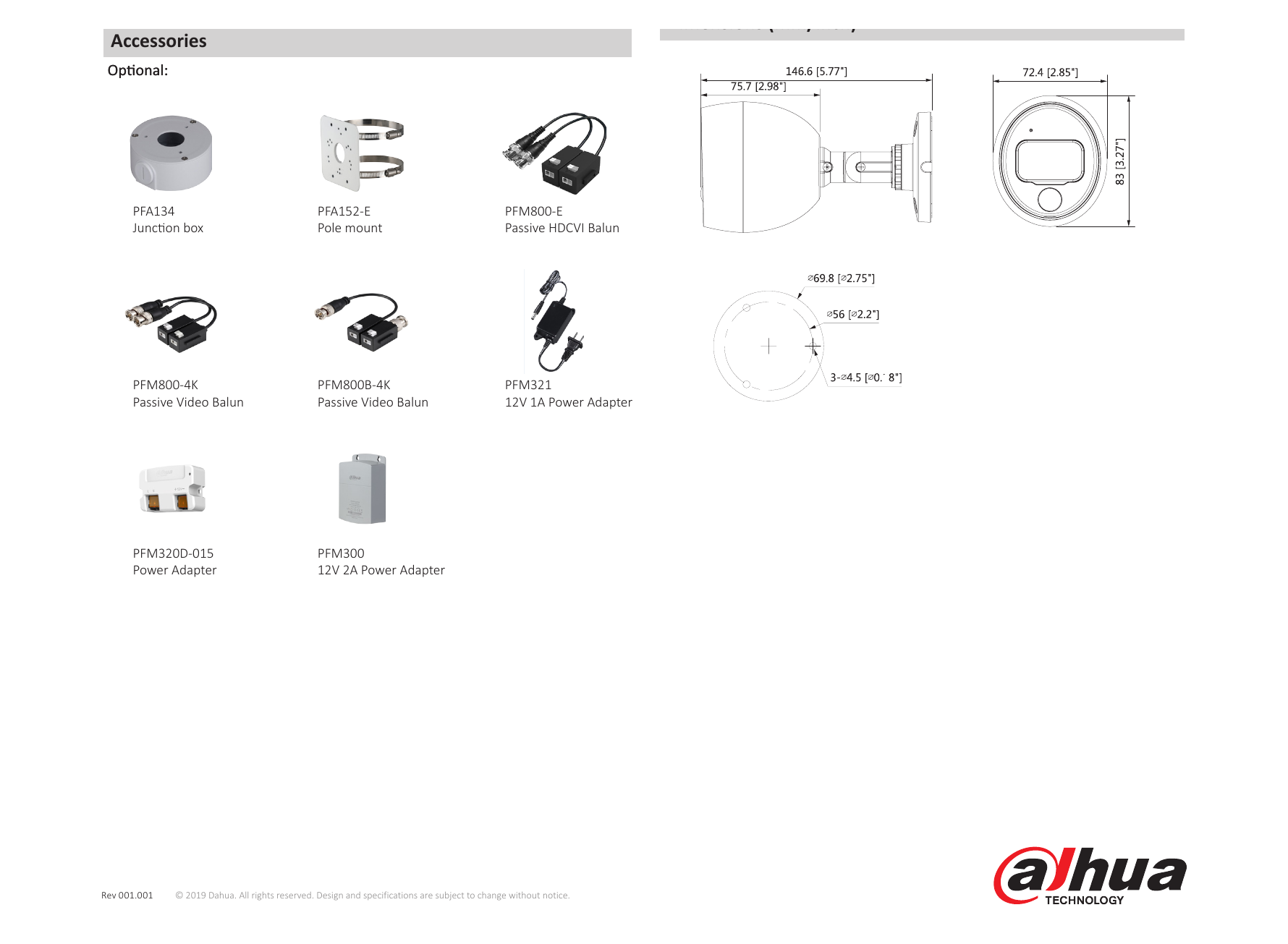

| PFM320D-015 | 12V 1.5A Power Adapter Dimensions (mm/inch) Accessories Optional: |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| PFM800-4K | PFM800B-4K PFM321 |
|---|
| Passive Video Balun | Passive Video Balun 12V 1A Power Adapter |
|---|
| Power Adapter | 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
