| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.7" CMOS WDR DWDR |
|---|
| Effective Pixels | 2592(H)×1944(V), 5MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D |
|---|
| PAL: 1/25~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB PIR |
|---|
| IR Distance | Up to 20m (66feet) Detection Passive infrared |
|---|
| IR On/Off Control | Auto / Manual Detection Range 10m, 110° |
|---|
| IR LEDs | 1 Alarm Prompt White light |
|---|
| 鏡頭 | White Light Mode Alert / Lighting |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Installation height Defualt bracket, wall mount, 2.2-3m |
|---|
| Mount Type | Board-in Certifications |
|---|
| 焦距 | 2.8mm (3.6mm Optional) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Max Aperture | F2.0 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) H: 99° (77.5°) Angle of View |
|---|
| V: 72° (56.5°) | Interface |
|---|
| Focus Control | N/A Audio Interface N/A Close Focus Distance 800mm(1400mm) Eelectrical 31''(55'') |
|---|
| 供電 | 12V DC ±30% DORI Distance |
|---|
| 功耗 | Max 4.6W (12V DC, IR on) Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Environmental sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. -10°C ~ +50°C (+14°F ~ +122°F) / Less than 9 |
|---|
| 儲存環境 | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH 25px/m 2.8mm: 56m(184ft) Detect (8px/ft) 3.6mm: 80m(262ft) Ingress Protection &Vandal IP67 Resistance 63px/m 2.8mm: 22m(73ft) Observe (19px/ft) 3.6mm: 32m(105ft) Construction 125px/m 2.8mm: 11m(37ft) |
|---|
| Recognize | Casing Aluminium (Inner Core) + Plastic (Cover) (38px/ft) 3.6mm: 16m(52ft) 250ppm 2.8mm: 6m(18ft) Dimensions Φ110mm×96.1mm(Φ4.33"×3.78") Identify (76px/ft) 3.6mm: 8m(26ft) |
|---|
| 淨重 | 0.28kg (0.61lb) Pan / Tilt / Rotation |
|---|
| 毛重 | 0.35kg (0.77lb) Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 5MP (2592×1944) |
|---|
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|

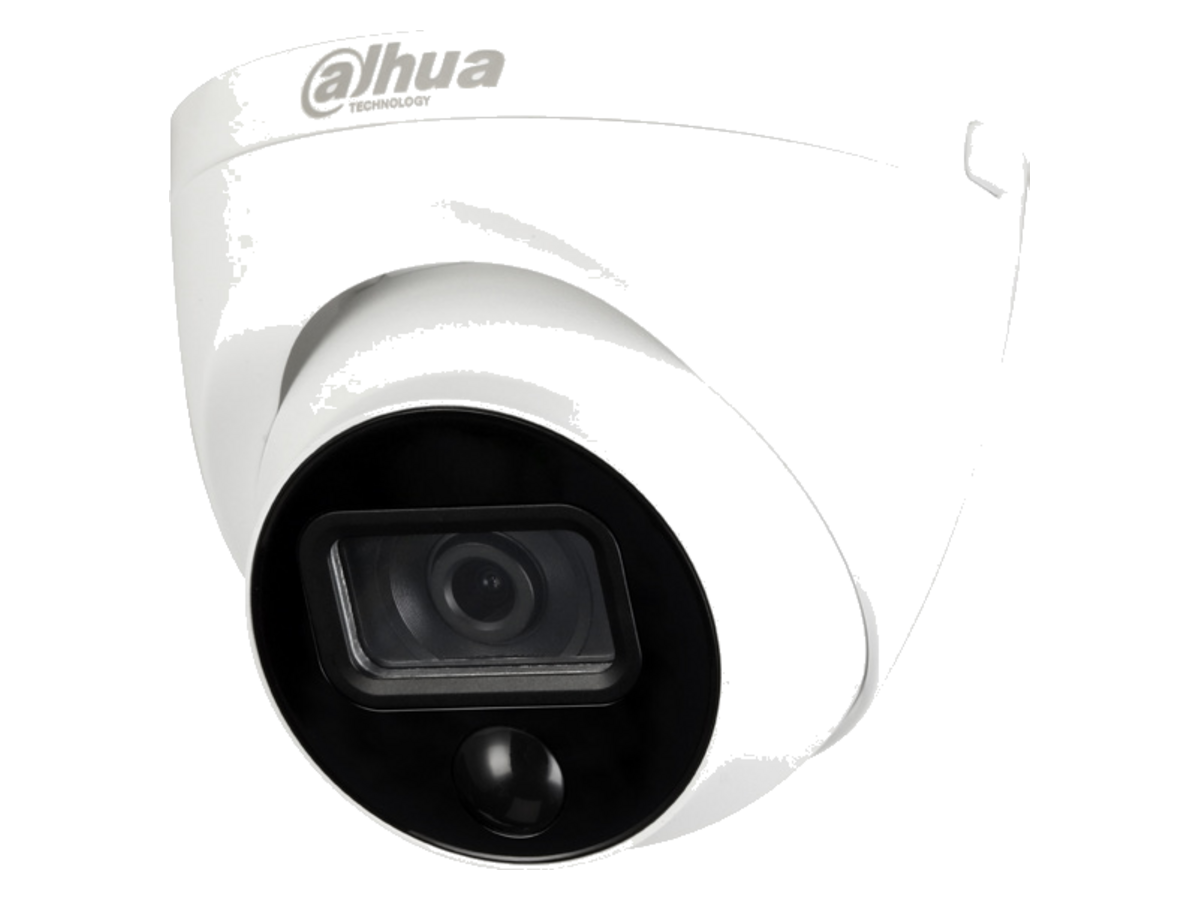

| 類型 | Part Number Description PFA130-E PFB203W + PFA152-E 5MP HDCVI Active Deterrence DH-HAC-ME1500EP-LED 2.8mm Camera, PAL |
|---|
| DH-HAC-ME1500EN-LED | 5MP HDCVI Active Deterrence 2.8mm Camera, NTSC Wall Mount 5MP Camera 5MP HDCVI Active Deterrence PFB203W DH-HAC-ME1500EP-LED 3.6mm Camera, PAL |
|---|
| PFA130-E | Junction box (For use alone) Pole Mount with Rain Shade |
|---|
| Pole mount (For use with PFB203W | PFA106 + PFB220C PFA152-E wall mount) Wall Mount with Rain Shade Corner mount (For use with PFB203W |
|---|
| PFA151 | PFB203W+PFA151 wall mount) Wall mount (For use alone or with |
|---|
| PFA203W | PFA152-E pole mount or with PFA151 corner mount) Ceiling mount (For use with PFB220C PFA106 |
|---|
| Accessories | ceiling mount) Ceiling mount (For use with PFA106 PFB220C ceiling mount) |
|---|

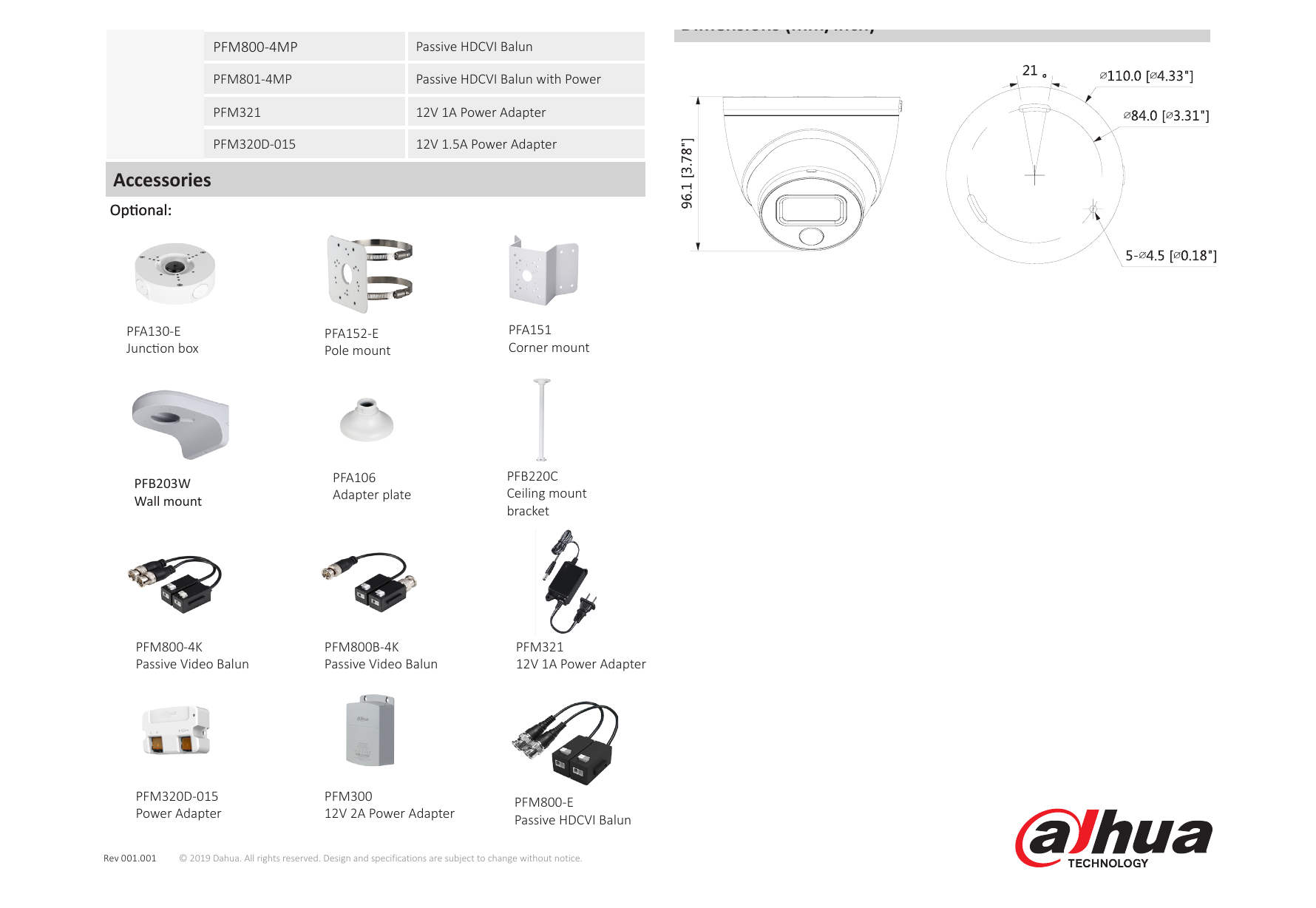

| PFM800-E | Passive HDCVI Balun Dimensions (mm/inch) |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Pole mount Corner mount |
|---|
| PFA106 | PFB220C PFB203W |
|---|
| Adapter plate | Ceiling mount Wall mount bracket |
|---|
| PFM800-4K | PFM800B-4K PFM321 |
|---|
| Passive Video Balun | Passive Video Balun 12V 1A Power Adapter |
|---|
| Power Adapter | 12V 2A Power Adapter Passive HDCVI Balun |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
