| Camera | Privacy Masking Off/On (8 Area, Rectangle) |
|---|
| 影像感測器 | 1/2.8" CMOS Certifications |
|---|
| 最大解像度 | 3840(H)×2160(V) CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, |
|---|
| Pixel | 4K Certifications EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Scanning System | Progressive IEC 62368-1:2014 (Second Edition) |
|---|
| PAL:1/3s~1/100000s | Port Electronic Shutter Speed NTSC:1/4s~1/100000s 1 BNC output |
|---|
| S/N Ratio | >65 dB Video Output Support CVI/TVI/AHD |
|---|
| 最低照度 | 0.005 Lux/F1.6, 0 Lux warm light on Audio Input Built-in mic |
|---|
| Illumination Distance | 40 m (131.2 ft) Alarm out 1ch alarm out |
|---|
| Illumination Type | Warm light Active Deterrence |
|---|
| Illuminator On/Off Control | Auto; manual Red/Blue Light Warning Flash: 5 s–30 s; frequency: high/medium/low |
|---|
| Illuminator Number | 2 (Warm light) Audio 1/2/3; Volume: high/medium/low; Sound Warning duration: 5 s–30 s; 110 dB Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Power Rotation: 0°–360° |
|---|
| 供電 | 12V ±30% DC |
|---|
| 功耗 | Max 7.7W (12V DC, warm light on) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Mount Type | M12 –40°C to +60°C (–40°F to 140°F); Operating Temperature |
|---|
| 焦距 | 2.8 mm; 3.6 mm <95% (non-condensation) –40°C to +60°C (–40°F to 140°F); 2.8 mm: F1.6 Storage Temperature |
|---|
| Max. Aperture | <95% (non-condensation) 3.6 mm: F1.6 2.8mm:H: 107°; V: 56°;D: 127° Ingress Protection IP67 Field of View 3.6mm:H: 89°; V: 46°;D: 105° Structure |
|---|
| 光圈類型 | Fixed iris |
|---|
| Casing | Metal 2.8mm: 1.5m(4.92ft) Close Focus Distance 3.6mm: 2.2m(7.22ft) Camera Dimensions Φ122.0 mm × 110.9 mm (Φ4.8" × 4.37") |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| 淨重 | 0.69 kg (1.52 lb) |
|---|
| DORI 偵測距離 | 87.7 m 35.1m 17.5m 8.8m 2.8 mm Gross Weight 0.95 kg (2.01 lb) |
|---|
| Distance | (287.73 ft) (115.16 ft) (57.41 ft) (28.87 ft) 110.3 m 44.1 m 22.1 m 11 m 3.6 mm (361.88 ft) (144.69 ft) (72.51 ft) (36.09 ft) CVI: 4K@15fps/25fps/30fps, 4M@25fps/30fps; AHD: Frame Rate 4K@15fps; TVI: 4K@15fps |
|---|
| 解像度 | 4K(3840×2160);4M(2560×1440) |
|---|
| BLC Mode | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto/Manual |
|---|
| Gain Control | Auto/Manual |
|---|
| Noise Reduction | 2D |
|---|
| Smart Light | Yes www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-ME1809HP- | 4K HDCVI Full-Color Active Deterrence Fixed |
|---|
| A-PV | Eyeball Camera, PAL 4K Camera |
|---|
| DH-HAC-ME1809HN- | 4K HDCVI Full-Color Active Deterrence Fixed |
|---|
| PFA137 | Junction Box |
|---|
| PFA130-E | IP66 Junction Box |
|---|
| PFB203W | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFB220C | Ceiling Mount |
|---|
| Accessories | PFA106 Mount Adapter |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester |
|---|

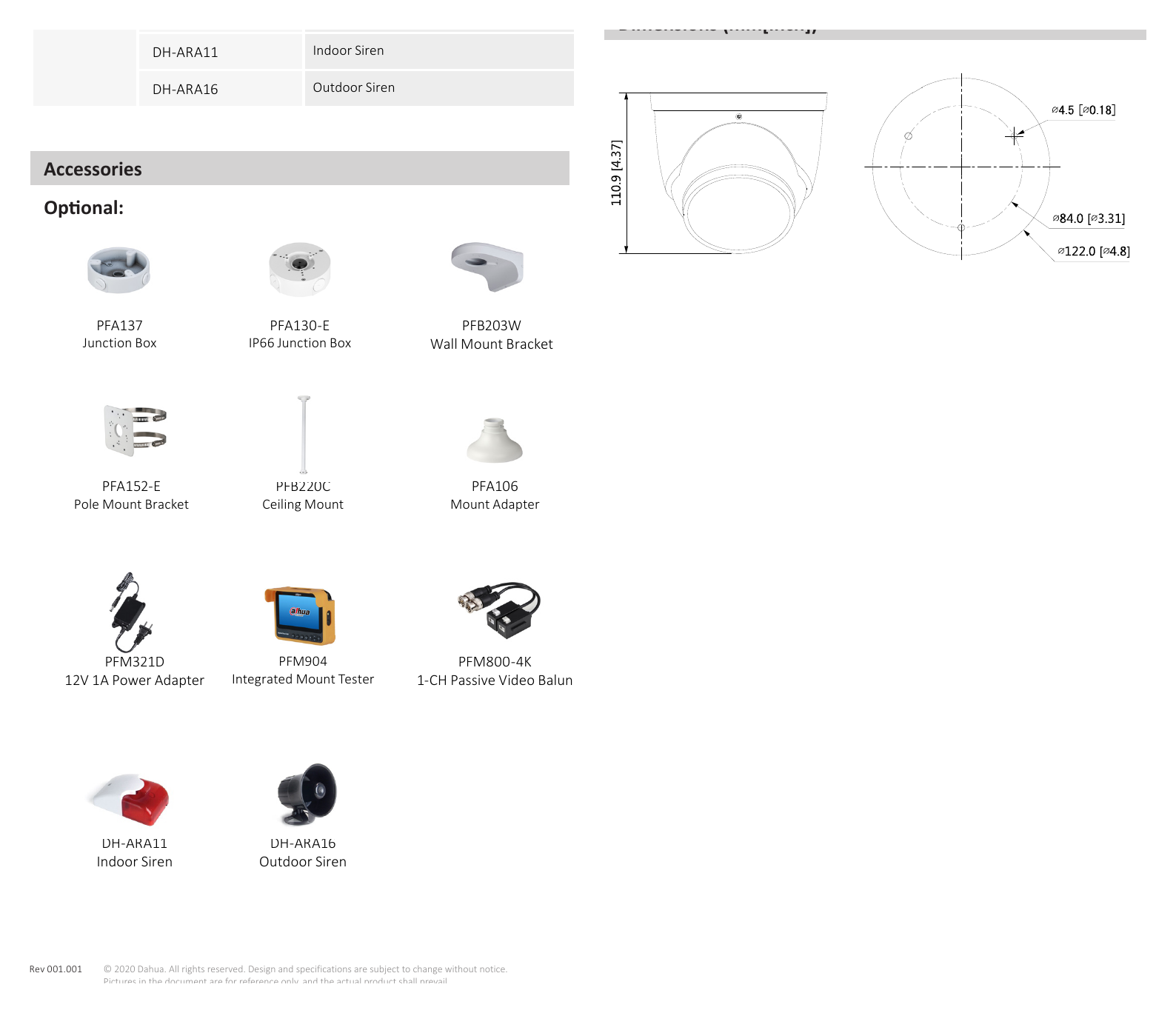

| PFM800-4K | 1-CH Passive Video Balun Dimensions (mm[inch]) |
|---|
| DH-ARA11 | Indoor Siren |
|---|
| DH-ARA16 | Outdoor Siren Accessories Optional: |
|---|
| Junction Box | IP66 Junction Box Wall Mount Bracket |
|---|
| Pole Mount Bracket | Ceiling Mount Mount Adapter |
|---|
| Indoor Siren | Outdoor Siren |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
