| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | Three 1/2.8" 2MP STARVISTM CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels(Panorama) | 4K(3840x832)/4M(2560x554) WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL:1/4s~1/100,000s | Noise Reduction 2D/3D Electronic Shutter Speed NTSC:1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on) |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | 20m Certifications |
|---|
| IR On/Off Control | Auto (ICR)/Color/B/W CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 6 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Alarm I/O 2/1 |
|---|
| Mount Type | Board-in |
|---|
| Audio Interface | 1-channel audio in(JACK) |
|---|
| 焦距 | 3.6mm |
|---|
| Test interface | 1-channel 2-pin CVBS video output |
|---|
| Max Aperture | F1.8 |
|---|
| Upgrade Interface | 1-channel 4-pin USB input |
|---|
| Angle of View | H: 180° 1 physical code switch(switch the preset video |
|---|
| Focus Control | N/A Code switcher source) 500mm |
|---|
| Close Focus Distance | Menu set 1 Five-direction button 19.7'' |
|---|
| DORI Distance | Eelectrical Note: The DORI distance is a “general proximity” of distance which makes it easy to Power Supply 24V AC ±25% pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Power Consumption 24W criteria for Detect, Observe, Recognize and Identify respectively. Environmental |
|---|
| Distance | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| Definition | Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Detect | 25px/m (8px/ft) 50m(163ft) Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH Ingress Protection & Vandal |
|---|
| Observe | 63px/m (19px/ft) 20m(65ft) IP67&IK10 Resistance |
|---|
| Recognize | 125px/m (38px/ft) 10m(33ft) Construction |
|---|
| Casing | Aluminium |
|---|
| Identify | 250px/m (76px/ft) 5m(16ft) |
|---|

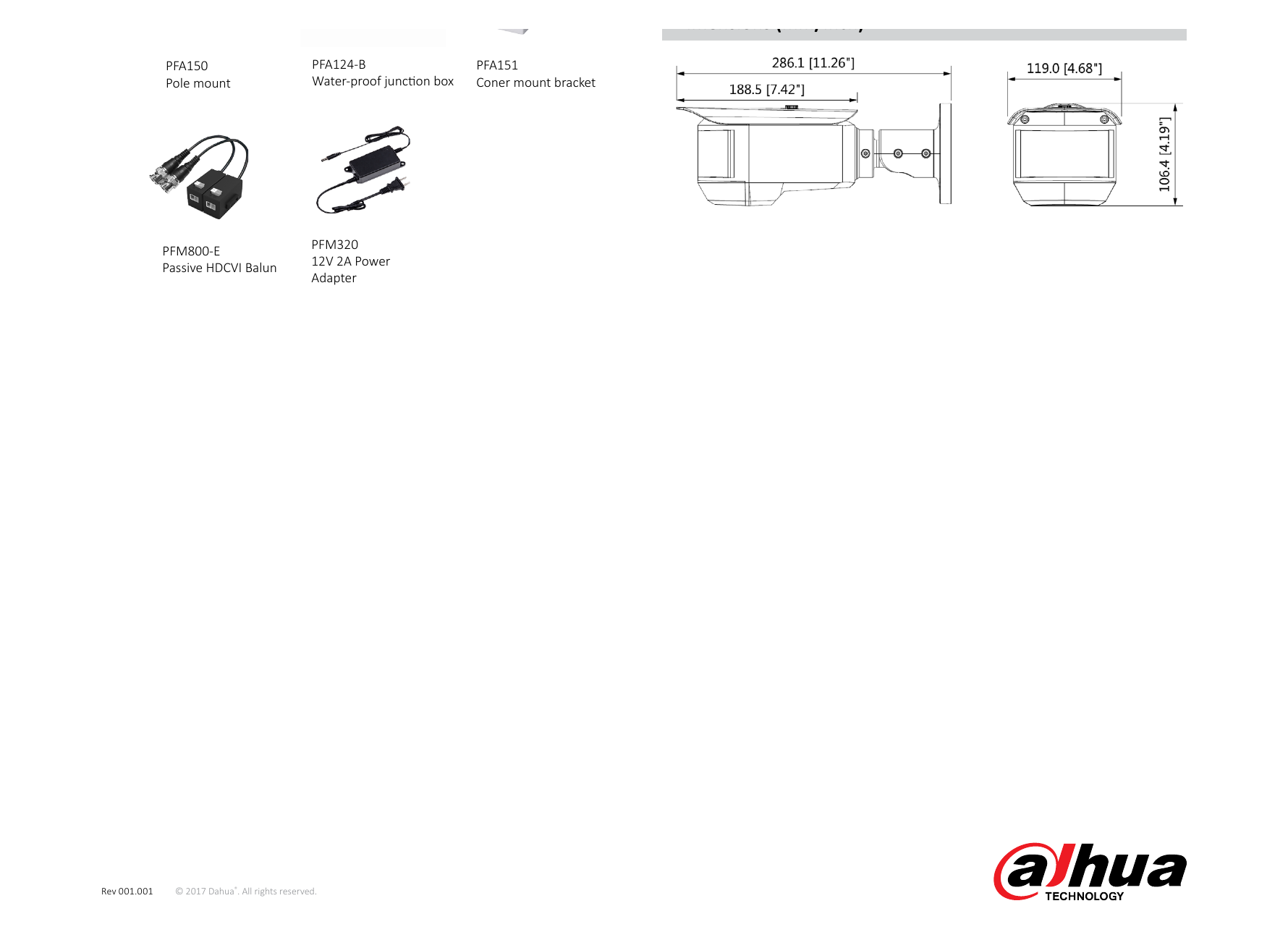

| 尺寸 | 286mm x 119mmx 106mm(11.26"×4.68"×4.19") Pan / Tilt / Rotation |
|---|
| 淨重 | 2.05kg (4.5lb) Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Gross Weight 2.43kg (5.36lb) Rotation: 0° ~ 360° |
|---|
| 解像度 | 4K (3840X2160)/4MP(2560×1440) PAL:3840×2160@12.5fps,2560x1440@25fps; Frame Rate NTSC:3840×2160@15fps,2560x1440@25fps; 1-channel BNC HDCVI panoramic video output & Video Output 3-channels BNC 2MP HDCVI video output www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA124-B | PFA124-B + PFA150 |
|---|
| 類型 | Part Number Description 4K multi-sensor Panoramic HDCVI |
|---|
| DH-HAC-PFW3601P-A180-AC24 | IR-Bullet Camera, PAL,AC24V voltage input 8MP Camera 4K multi-sensor Panoramic HDCVI |
|---|
| DH-HAC-PFW3601N-A180-AC24 | IR-Bullet Camera, NTSC,AC24V voltage input |
|---|
| PFA150 | Pole mount bracket Corner Mount |
|---|
| Accessories | PFA151 Coner mount bracket |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| PFM320 | 12V 2A Power Adapter Dimensions (mm/inch) Optional: Dimensions (mm/inch) |
|---|
| Pole mount | Water-proof junction box Coner mount bracket |
|---|
| Passive HDCVI Balun | 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua®. All rights reserved. www.dahuasecurity.com |
|---|
