| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/1.7” 12Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 4000(H)x3000(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.001Lux/F2.8( Color,1/3s,30IRE) Electronic Image |
|---|
| Minimum Illumination | 0.01Lux/F2.8( Color,1/30s,30IRE) N/A Stabilization(EIS) 0Lux/F2.8(IR on) |
|---|
| S/N Ratio | More than 50dB Smart IR Support |
|---|
| IR Distance | Distance up to 10m(33ft) Defog Support |
|---|
| IR On/Off Control | Auto/ Manual Digital Zoom 16x |
|---|
| IR LEDs | 3 Flip N/A |
|---|
| Mirror | N/A |
|---|
| 鏡頭類型 | Fixed Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in Audio |
|---|
| 焦距 | 1.98mm Compression G.711a/G.711Mu/AAC/ G.726 |
|---|
| Max. Aperture | F2.8 Network |
|---|
| Angle of View | H: 180˚, V:180˚ Ethernet RJ-45 (100/1000Base-T) HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC |
|---|
| Optical Zoom | N/A |
|---|
| Protocol | P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Focus Control | Fixed |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | N/A |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Detect | Observe Recognize Identify |
|---|
| DORI Distance | Max. User Access 10 Users/20 Users 42m(138ft) 17m(56ft) 8m(27ft) 4m(14ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | N/A |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion |
|---|
| Smart Phone | IOS, Android |
|---|
| Advanced Intelligent Functions | Heat Map Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Compression | H.265/H.264 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams Interface 12M(4000×3000)/ 8M(2880×2880)/ Video Interface N/A 6M(2880×2160)/ 3M(2048x1536)/ Resolution 1.3M(1280x960)/ D1(704×576/704×480)/ Audio Interface 1/1 channel In/Out, 1 Built-in Mic CIF(352×288/352×240) |
|---|
| RS485 | N/A Main Stream: 12M(1~25fps)/ 8M(1~25/30fps) 2 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1(1 ~ 25/30fps) Alarm 2 channel Out: 1A 30VDC / 0.5A 50VAC |
|---|
| Third Stream: 1.3M(1 ~ 25/30fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR Power Supply DC12V, PoE (802.3af)(Class 0) |
|---|
| H.265: 3Kbps~ 9984Kbps | Power Consumption <12W Bit Rate H.264: 8Kbps~ 16384Kbps www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30°C ~ +60° C (-22°F ~ +140°F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30°C ~ +60° C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 PFB302S PFA152 |
|---|
| Wall Mount | Pole Mount |
|---|
| Vandal Resistance | IK10 |
|---|
| Construction | PFA100 Mount Adapter |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ149.8mm×47.7mm(Φ5.9”×1.88”) |
|---|
| PFA105 | PFA110 PFB300C |
|---|
| 淨重 | 0.58kg(1.28lb) Mount Adapter |
|---|
| Mount Adapter | Ceiling Mount |
|---|
| 毛重 | 1.0kg(2.2lb) Wall Mount |
|---|
| Ordering Information | PFA100+PFB302S PFA100+PFB302S+PFA152 |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC-EBW81230P | 12MP Panoramic Network IR Fisheye Camera, PAL |
|---|
| DH-IPC-EBW81230N | 12MP Panoramic Network IR Fisheye Camera,NTSC 12MP camera 12MP Panoramic Network IR Fisheye Ceiling Mount IPC-EBW81230P |
|---|
| Camera, PAL | PFA105+PFA110+PFB300C |
|---|
| IPC-EBW81230N | 12MP Panoramic Network IR Fisheye Camera,NTSC |
|---|
| PFA100 | Mount Adapter |
|---|
| PFB302S | Wall Mount |
|---|
| PFA152 | Pole Mount |
|---|

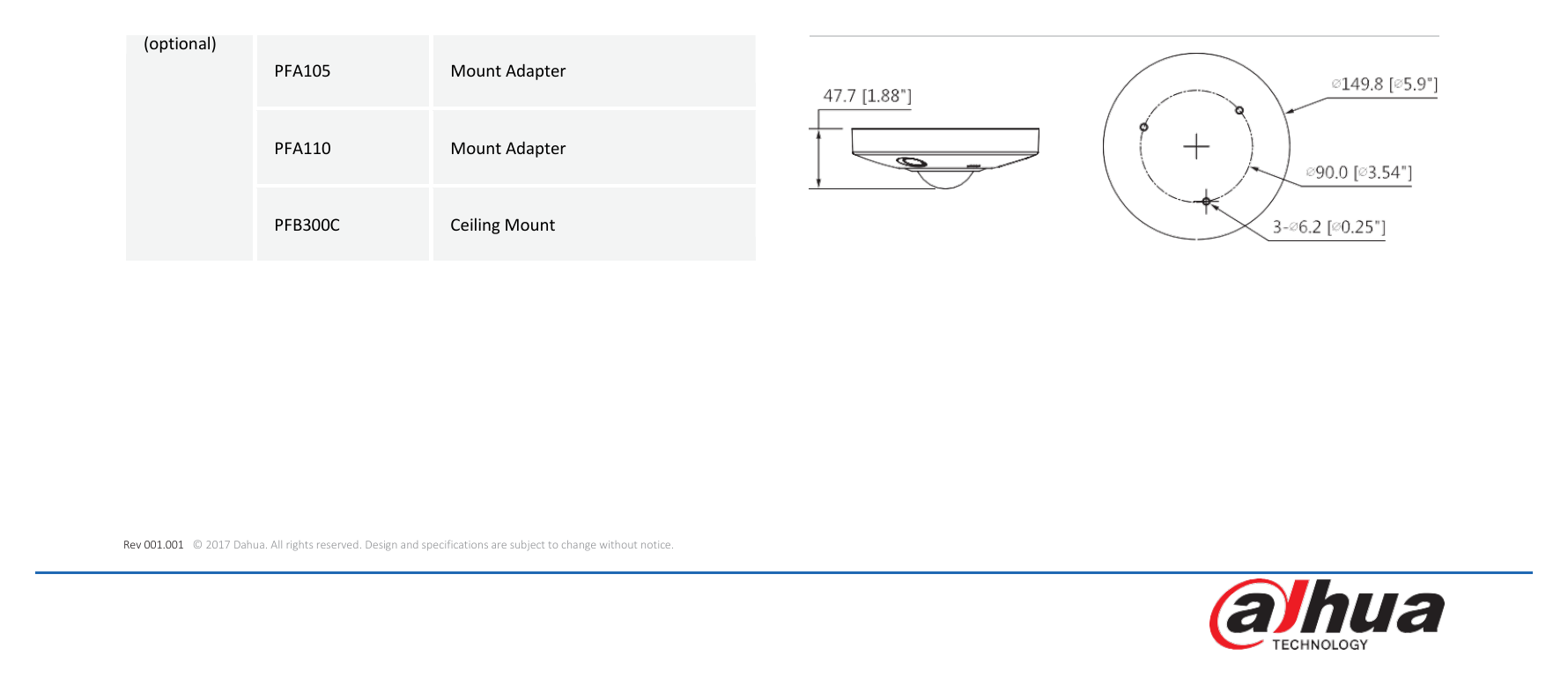

| Accessories | Dimensions (mm/inch) (optional) |
|---|
| PFA110 | Mount Adapter |
|---|
| PFB300C | Ceiling Mount www.dahuasecurity.com |
|---|
