| Camera | Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
|---|
| 影像感測器 | 1/2.7” 2Megapixel progressive CMOS |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) |
|---|
| BLC | Yes |
|---|
| ROM | 128 MB |
|---|
| HLC | Yes |
|---|
| RAM | 128 MB |
|---|
| WDR | DWDR |
|---|
| Scanning System | Progressive Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
|---|
| Gain Control | Auto/Manual |
|---|
| 最低照度 | 0.005 Lux @ F1.6 |
|---|
| Noise Reduction | 3D NR |
|---|
| S/N Ratio | >56 dB |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| Illumination Distance | 30 m (98.43 ft) |
|---|
| Region of Interest(RoI) | Yes (4 areas) |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Smart Illumination | Yes |
|---|
| Illuminator Number | 3 (IR LED) 0°/90°/180°/270° (Supports 90°/270° with 1080p Image Rotation |
|---|
| Pan: 0°–355° | resolution and lower.) |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–65° |
|---|
| Rotation: 0°–355° | Mirror Yes |
|---|
| 鏡頭 | Privacy Masking 4 areas |
|---|
| 鏡頭類型 | Fixed-focal Alarm |
|---|
| Mount Type | M12 No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video 2.8 mm Alarm Event |
|---|
| 焦距 | tampering; tripwire; intrusion; illegal access; voltage 3.6 mm detection; safety exception |
|---|
| Max. Aperture | F1.6 2.8 mm: Horizontal 110.0° × Vertical 59.0° × Diagonal: 132.0° Network RJ-45 (10/100 Base-T) Field of View 3.6 mm: Horizontal 91.0° × Vertical 48.0° × Diagonal:109.0° SDK and API Yes |
|---|
| 光圈類型 | Fixed Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; 2.8 mm: 0.6 m (1.97 ft) |
|---|
| Close Focus Distance | Cyber Security IP/MAC filtering; generation and importing of X.509 3.6 mm: 1.1 m (3.61 ft) certification; syslog; HTTPS; 802.1x; trusted boot; trusted |
|---|
| DORI Distance | (122.38 ft) (48.88 ft) (24.61 ft) (12.14 ft) Protocol RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour 53.3 m 21.3 m 10.7 m 5.3 m 3.6 mm (174.87 ft) (69.88 ft) (35.10 ft) (17.39 ft) ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Interoperability |
|---|
| 智能事件 | Genetec |
|---|
| 用戶管理 | 20 |
|---|
| IVS | Tripwire; intrusion |
|---|
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP H.265; H.264; H.264B; MJPEG (only supported by the IE |
|---|
| 視頻壓縮 | Browser Chrome sub stream) Firefox |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ |
|---|
| Management Software | Smart PSS; DSS; DMSS Main stream: 1920 × 1080 (1 fps-25/30 fps) Mobile Phone IOS; Android |
|---|
| Video Frame Rate | Sub stream: 704 × 576 (1 fps-25fps) Certification 704 × 480 (1 fps-30fps) CE-LVD: EN62368-1 |
|---|
| Stream Capability | 2 streams CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 FCC: 47 CFR FCC Part 15, Subpart B |
|---|
| 解像度 | ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 (352 × 288/352 × 240) www.dahuasecurity.com Power |
|---|
| 供電 | 12V DC/PoE (802.3af) |
|---|
| 功耗 | < 5W |
|---|
| PFM321D | LR1002-1ET/1EC PFM900-E |
|---|
| Environment | DC12V1A Power Single-port Long Integrated Mount |
|---|
| Adapter | Reach Ethernet over Tester |
|---|
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH Coax Extender |
|---|
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
|---|
| 防護等級 | IP67, IK10 PFM114 |
|---|
| Structure | TLC SD Card |
|---|
| Casing | Metal |
|---|
| 尺寸 | 81 mm × Φ109.9 mm (3.19" × Φ4.33") Junction Mount Wall Mount Wall Mount Pole Mount |
|---|
| PFA136 | PFA136+PFA200W PFB203W PFB203W+PFA152-E |
|---|
| 淨重 | 0.350 kg (0.77 lb) |
|---|
| 毛重 | 0.481 kg (1.06 lb) Ordering Information |
|---|

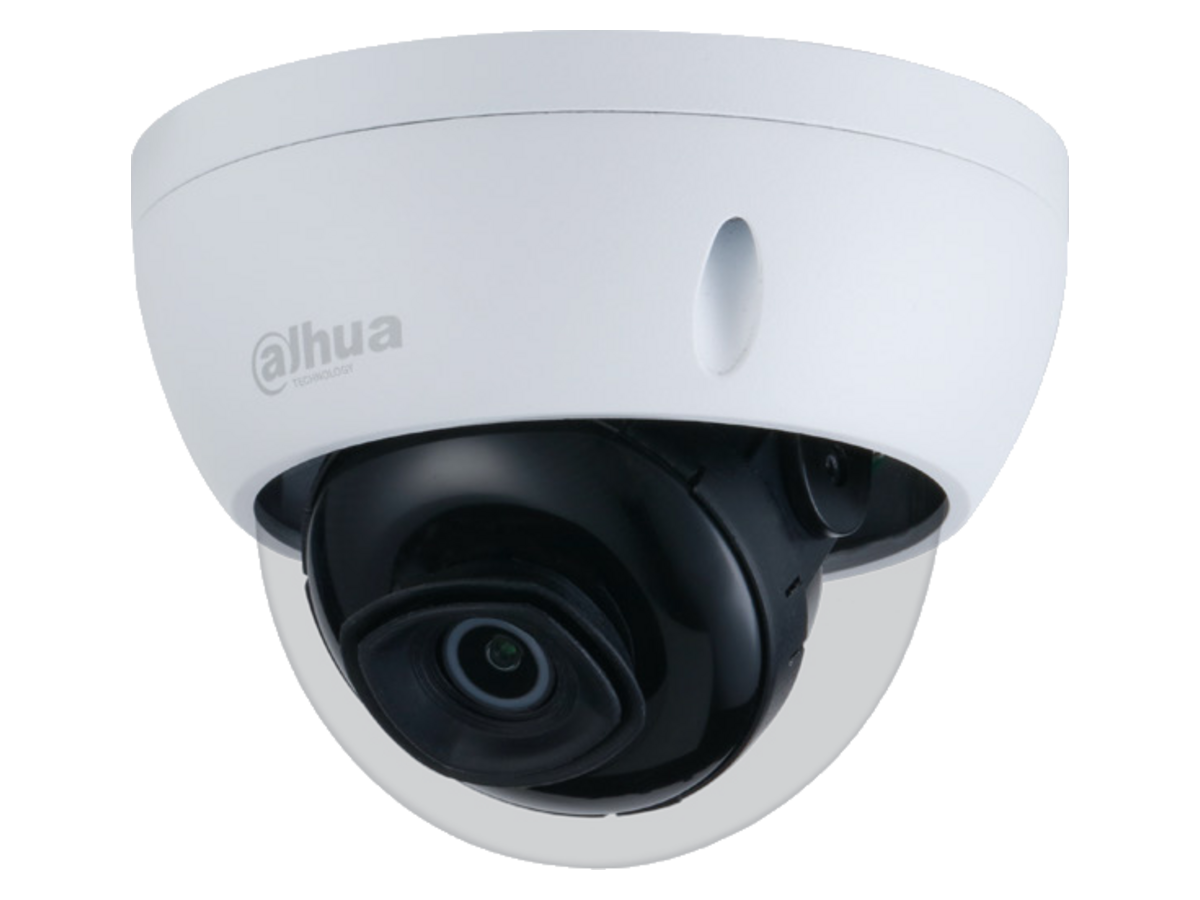

| 類型 | Part Number Description Ceiling Mount PFA106+PFB220C 2MP Lite IR Fixed-focal Dome DH-IPC-HDBW2230EP-S-S2 Network Camera,PAL 2MP |
|---|
| PFA200W | Rain Shade |
|---|
| PFB203W | Wall Mount Dimensions (mm[inch]) |
|---|
| PFA152-E | Pole Mount |
|---|
| PFA106 | Mount Adapter Accessories (optional) PFB220C Celling Mount |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| PFM114 | TLC SD Card Accessories Optional: |
|---|
| Junction Box | Rain Shade Wall Mount |
|---|
| Pole Mount | Mount Adapter Celling Mount |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
